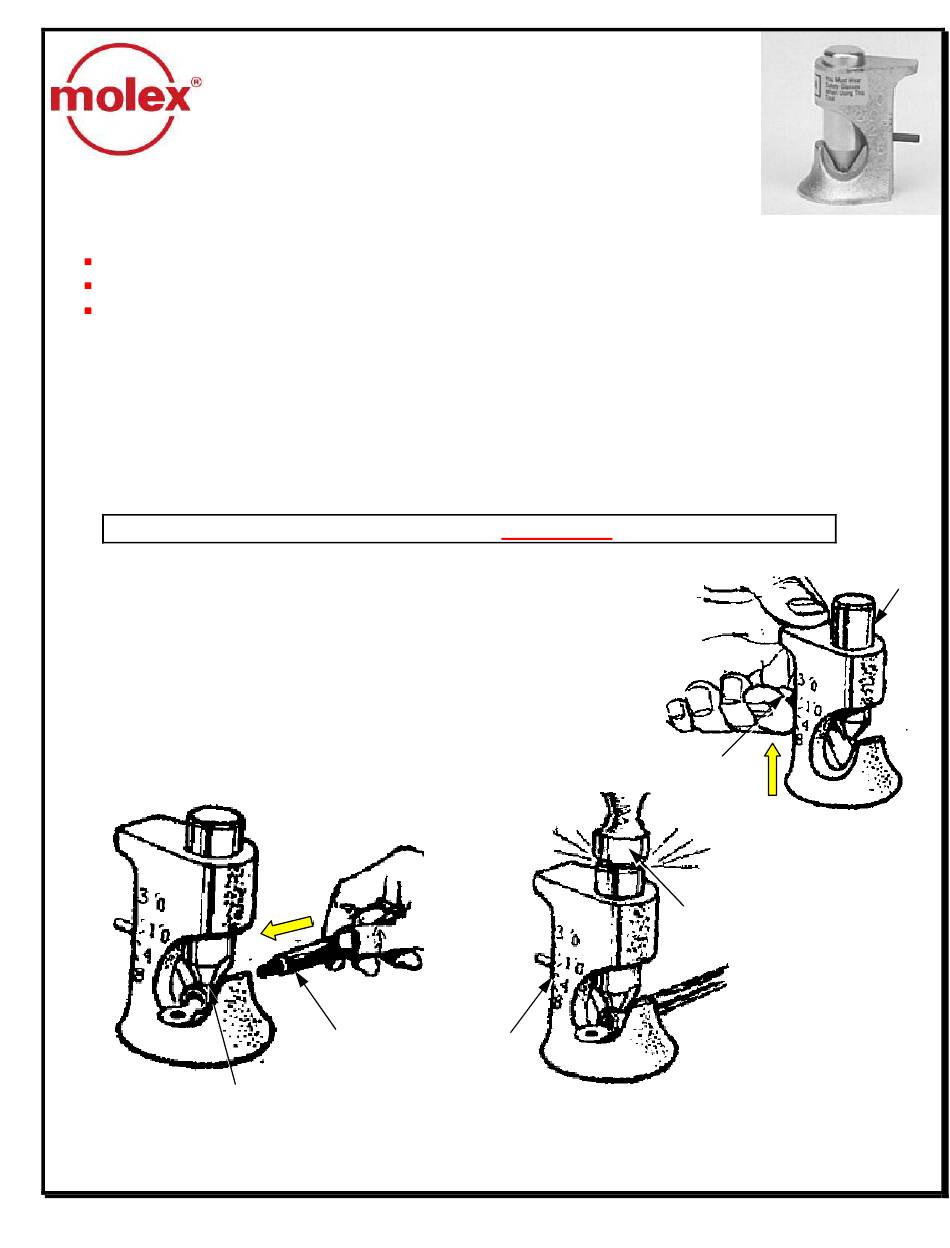

Manual Crimping Tool

FEATURES

Compact and easy to use
Inexpensive for lower volume production or field repairs
Designed to crimp closed barrel terminals

DESCRIPTION:

This Manual Tool is used for crimping non-insulated 8AWG thru 4/0 closed barrel terminals. This tool can be used
with a hammer or vise. This tool is not UL listed with any Molex products.

OPERATION

WARNING: Make sure that the wire or cable is Disconnected from any power source.
1. Position the Manual Crimping Tool on a solid surface with the base down.
2. Place a thumb on the tool body behind the ram.
3. Use an index finger under the lift lever and push up. See Figure 1.
4. Insert the desired terminal or splice in the nest making sure the crimp
barrel is centered.
5. For butt splices, center half of the barrel into the nest.
6. Release the lift lever, allowing the ram to contact the terminal or splice.
7. Insert the proper stripped wire into the barrel of the terminal. See Figure 2.
CENTER BARREL
OVER NEST
Doc No: ATS-192940008
Revision: A
Manual Crimping Tool
Specification Sheet
Order No. 19294-0008
Engineering No. - SKT-840
STRIPPED
WIRE
Figure 2
Release Date: 09-22-09
Revision Date: 09-22-09
WIRE AWG
MARKINGS
Figure 3
UNCONTROLLED COPY
LIFT LEVER
Figure 1
HAMMER
Page 1 of 2
RAM
