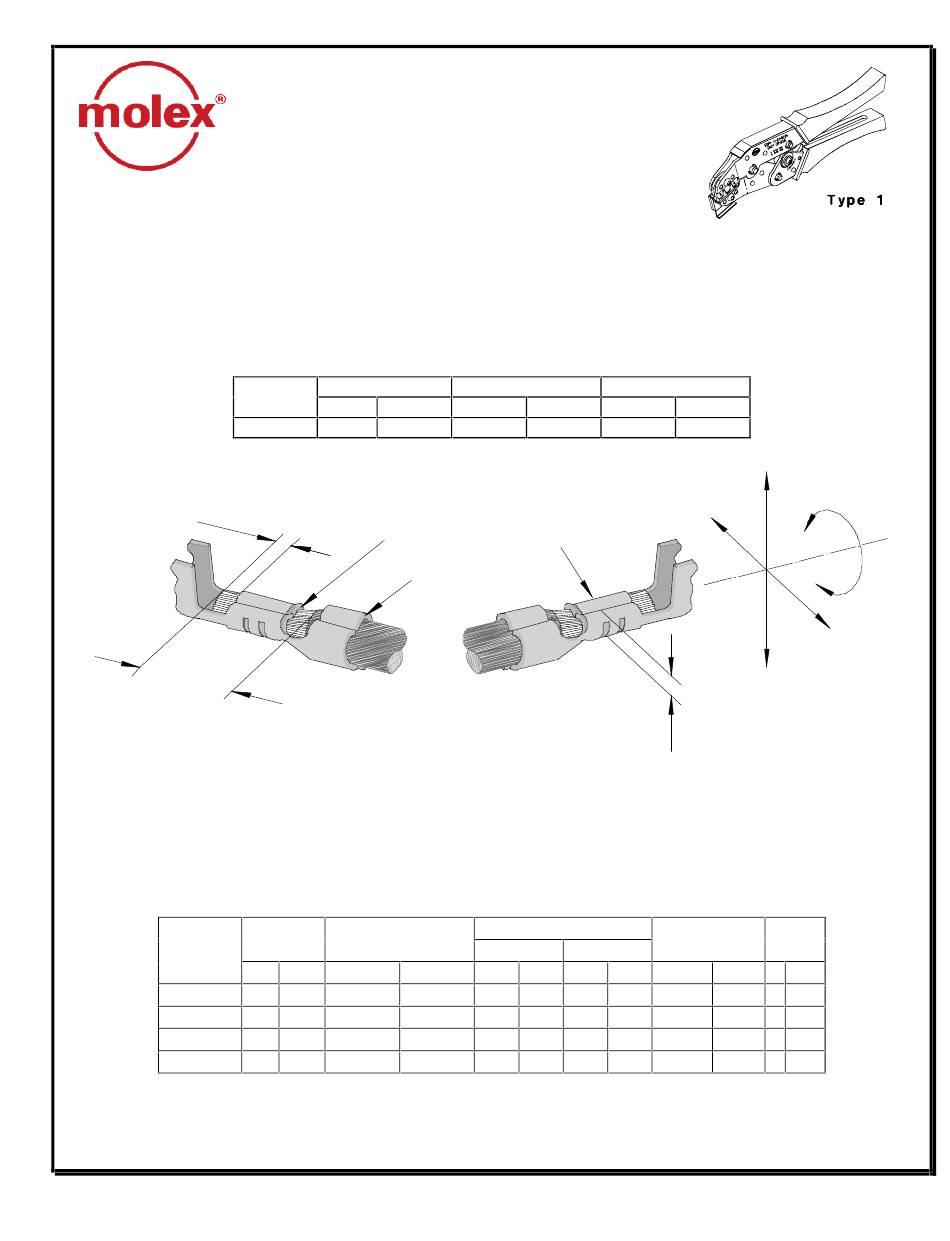

CR5974 Hand Crimp Tool for "SPOX"2.50 pitch Terminals
FEATURES
Œ
Œ
Small handle spread which make this style tool ideally suited for end users
Œ
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in
the scope.
CONDITIONS:
After crimping, the conductor profiles should measure the following (see notes on page 3).
Terminal
Series No.
5263
5263
5263
5263
Doc No. 11-01-0194
Release Date: 04-13-93
Revision: C
Revision Date: 09-13-04
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 11-01-0194
Terminal
Wire Size
Series No.
AWG
mm²
5263
22 - 28
0.35-0.08
BELL MOUTH
INSULATION
CRIMP
Cond. Crimp
Wire Size
Height (Ref)
2
AWG mm
mm
22
0.35
0.72-0.82
.028-.032
24
0.20
0.70-0.80
.027-.031
26
0.12
0.64-0.74
.025-.029
28
0.08
0.62-0.72
.024-.028
(CR5974)
Insulation Diameter
mm
In.
1.20-1.90
.047-.075
CONDUCTOR
CRIMP
Punch Width (Ref)
Cond.
Ins.
In.
mm
In.
mm
1.40
.055
1.90
1.40
.055
1.90
1.40
.055
1.90
1.40
.055
1.90
UNCONTROLLED COPY
Strip Length
mm
In.
2.54-3.17
.100-.125
BEND UP
BEND
DOWN
CRIMP HEIGHT
Pull Force Min.
Profile
In.
N
Lb.
A
.075
44.5
10.00 X
.075
28.9
6.50
X
.075
17.8
4.00
.075
11.1
2.50
ROLLING
TWISTING
B
X
X
Page 1 of 4
