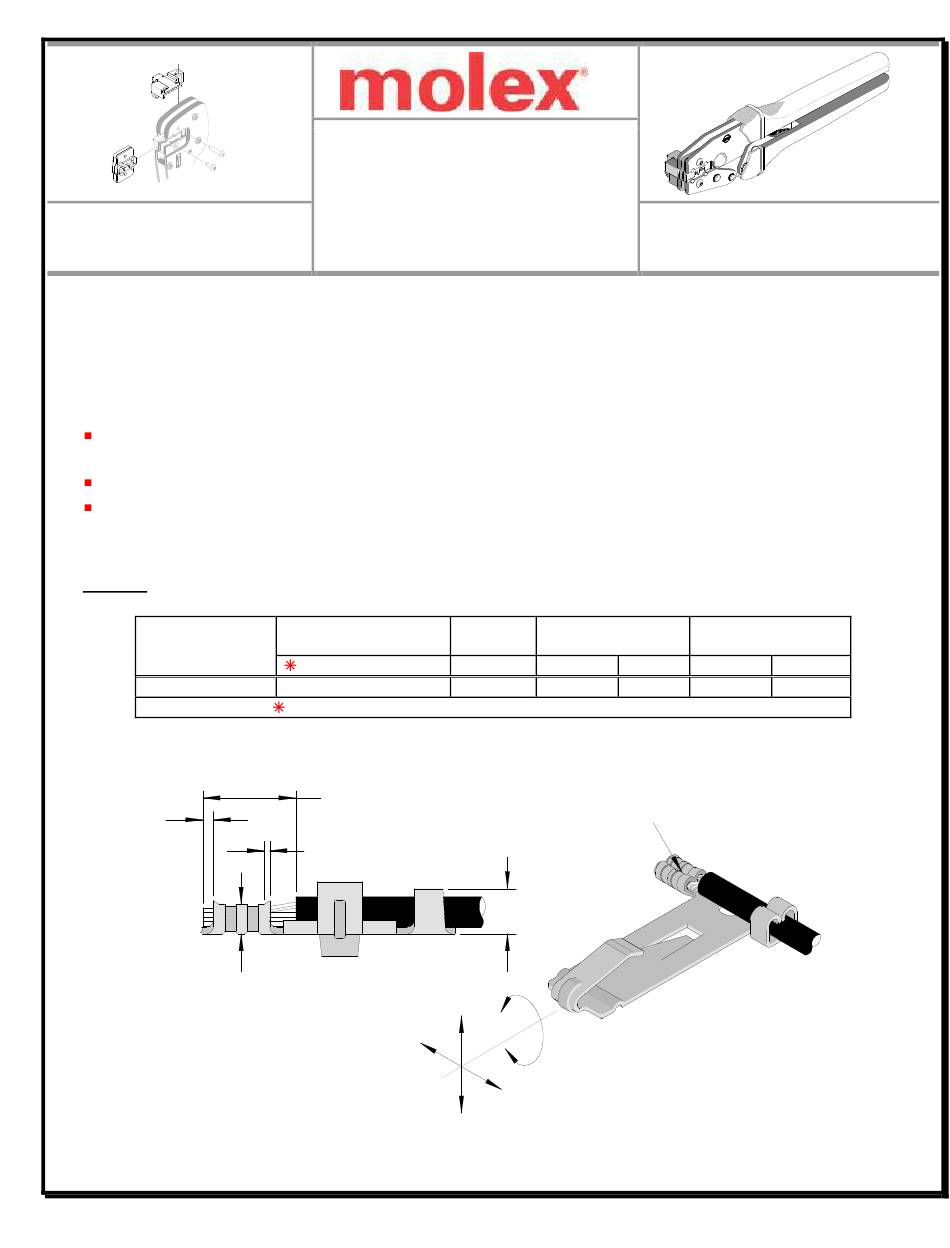

Tool Kit for Bulb Socket Earth Crimp Terminals
Tool Kit
Order No. 63819-7970
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Bulb Socket Earth Terminal for 0.50 to 0.85mm² wire.
Terminal Series No.
35439
DEFINITION OF TERMS
BRUSH
CONDUCTOR
CRIMP HEIGHT
Doc No: ATS-6381979HM Release Date: 01-30-09
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel Only
35439-8000
Customer to cut off terminal from reel. Cut tab flush with terminal on both ends.
STRIP LENGTH
BELL MOUTH
BEND UP
TWISTING
BEND DOWN
Revision Date: 10-08-10
Insulation
Wire Size
Diameter
mm²
mm
0.50 to 0.85 1.80 – 2.80 .071-.110 3.00 – 3.60 .118 - .142
INSULATION
SEAM
CRIMP HEIGHT
▲SEE NOTE
ROLLING
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63819-7900
Strip Length
In.
mm
In.
