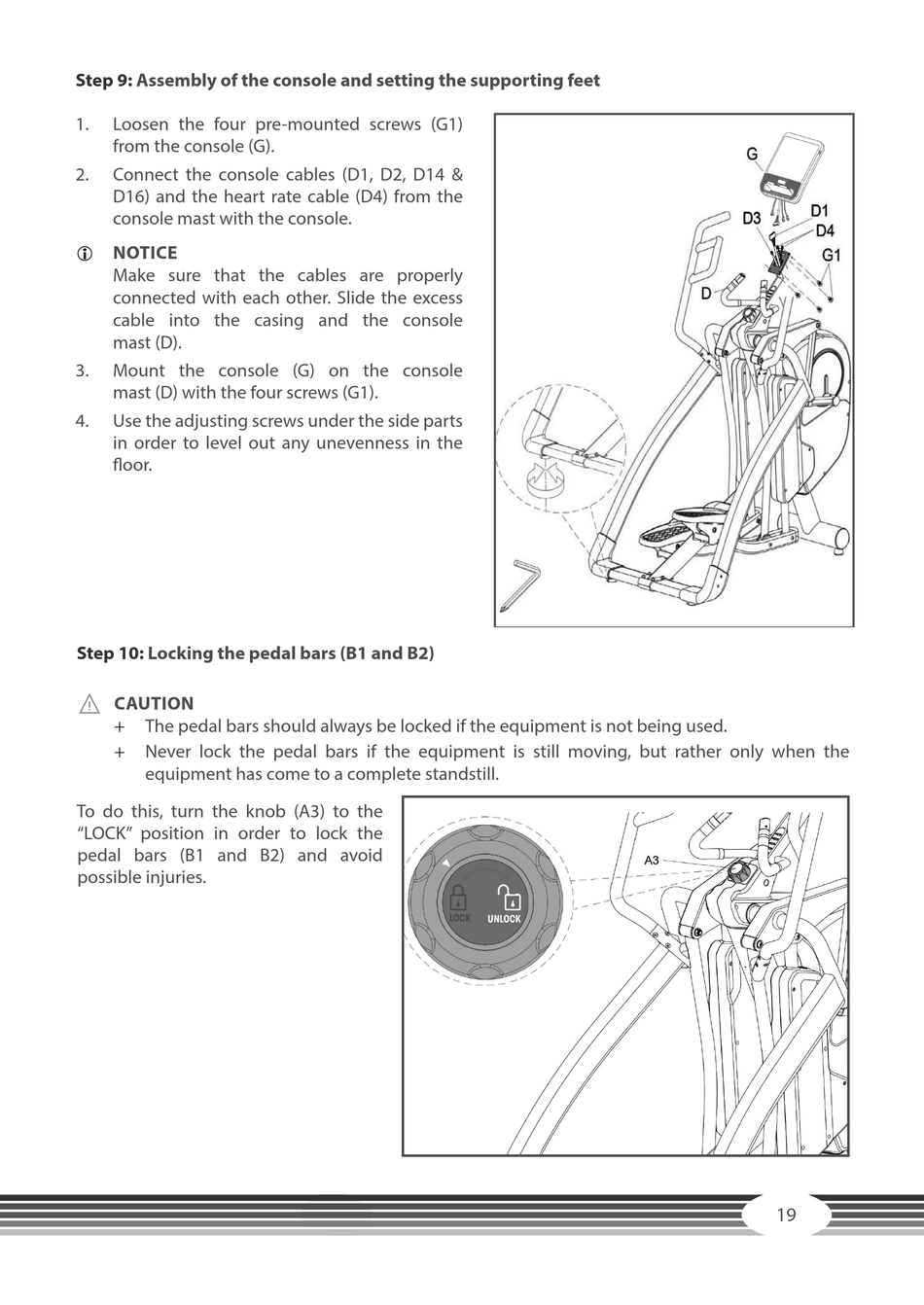

Step 9:
Assembly of the console and setting the supporting feet
1.
Loosen the four pre-mounted screws (G1)
from the console (G).
2.
Connect the console cables (D1, D2, D14 &
D16) and the heart rate cable (D4) from the
console mast with the console.
NOTICE
L
Make sure that the cables are properly
connected with each other. Slide the excess
cable into the casing and the console
mast (D).
3.
Mount the console (G) on the console
mast (D) with the four screws (G1).
4.
Use the adjusting screws under the side parts
in order to level out any unevenness in the
floor.
Step 10:
Locking the pedal bars (B1 and B2)
⚠
CAUTION
+
The pedal bars should always be locked if the equipment is not being used.
+
Never lock the pedal bars if the equipment is still moving, but rather only when the
equipment has come to a complete standstill.
To do this, turn the knob (A3) to the
"LOCK" position in order to lock the
pedal bars (B1 and B2) and avoid
possible injuries.
19
