Symmons Unity Trim Series Installation & Operation Instructions page 5

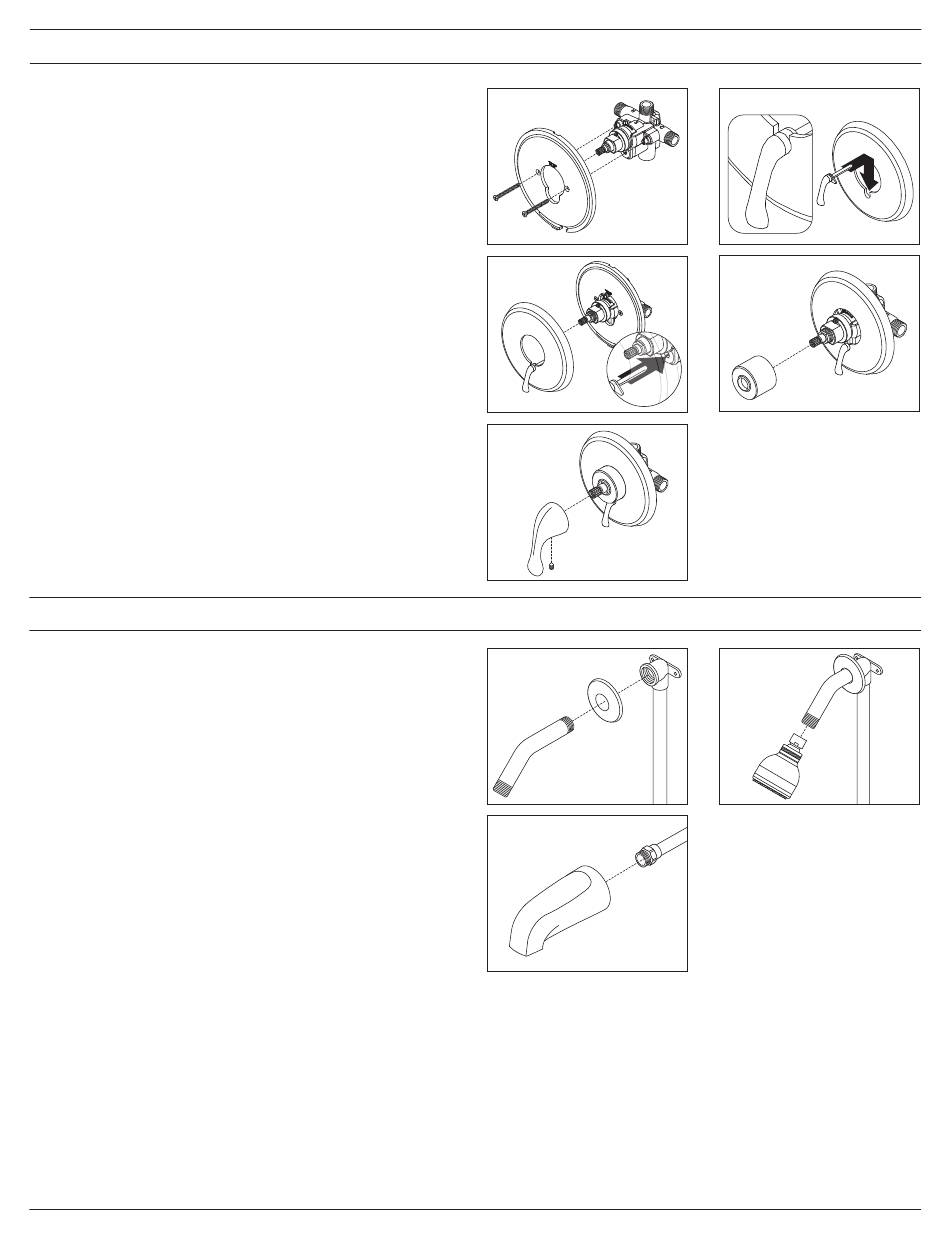

8. Installation - Shower Valve Trim
1) Secure large mounting plate to Temptrol
pressure balancing valve using mounting screws
(FIGURE 8.1).
2) Place diverter/volume control handle into slot in shower
escutcheon (FIGURE 8.2).
3) Secure large shower escutcheon to mounting plate.
Guide handle into control port on valve body. Tabs
should snap in place (FIGURE 8.3).
4) Install dome cover by turning clockwise (FIGURE 8.4).
5) Install handle to shower valve. Secure with set screw
(FIGURE 8.5).
9. Installation - Showerhead & Tub Spout
1) Attach arm and flange to shower pipe. Turn clockwise
to tighten (FIGURE 9.1).
2) Install showerhead to shower arm. Turn clockwise to
tighten (FIGURE 9.2).
3) Install tub spout to stub out pipe. Turn clockwise to
tighten (FIGURE 9.3).
FIGURE 8.1
FIGURE 8.3
FIGURE 8.5
FIGURE 9.1
FIGURE 9.3
5
FIGURE 8.2
FIGURE 8.4
FIGURE 9.2
