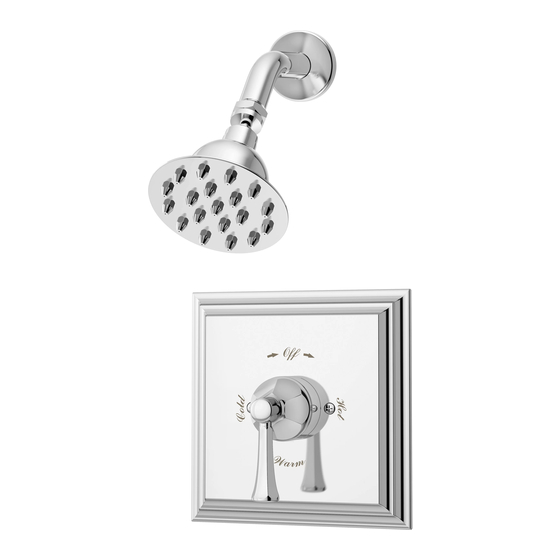

Canterbury Trim Series
Canterbury Trim Series with TA-10 Flow Control Spindle &
T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-4500-TRM
Shower Valve Trim
S-4501-TRM
Shower Trim
S-4502-TRM
Tub/Shower Trim
S-4504-TRM
Tub/Hand Shower Trim
S4508TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Canterbury
TRIM, TA-10, T-12A
S4500TRMTC
Shower Valve Trim
S4501TRMTC
Shower Trim
S4502TRMTC
Tub/Shower Trim
S4504TRMTC
Tub/Hand Shower Trim
S4508TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-4500-TRM
S-4501-TRM
S4500TRMTC
S4501TRMTC
S-4504-TRM
S4508TRM
S4504TRMTC
S4508TRMTC
S-4502-TRM
S4502TRMTC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Canterbury Trim Series
Summary of Contents for Symmons Canterbury Trim Series

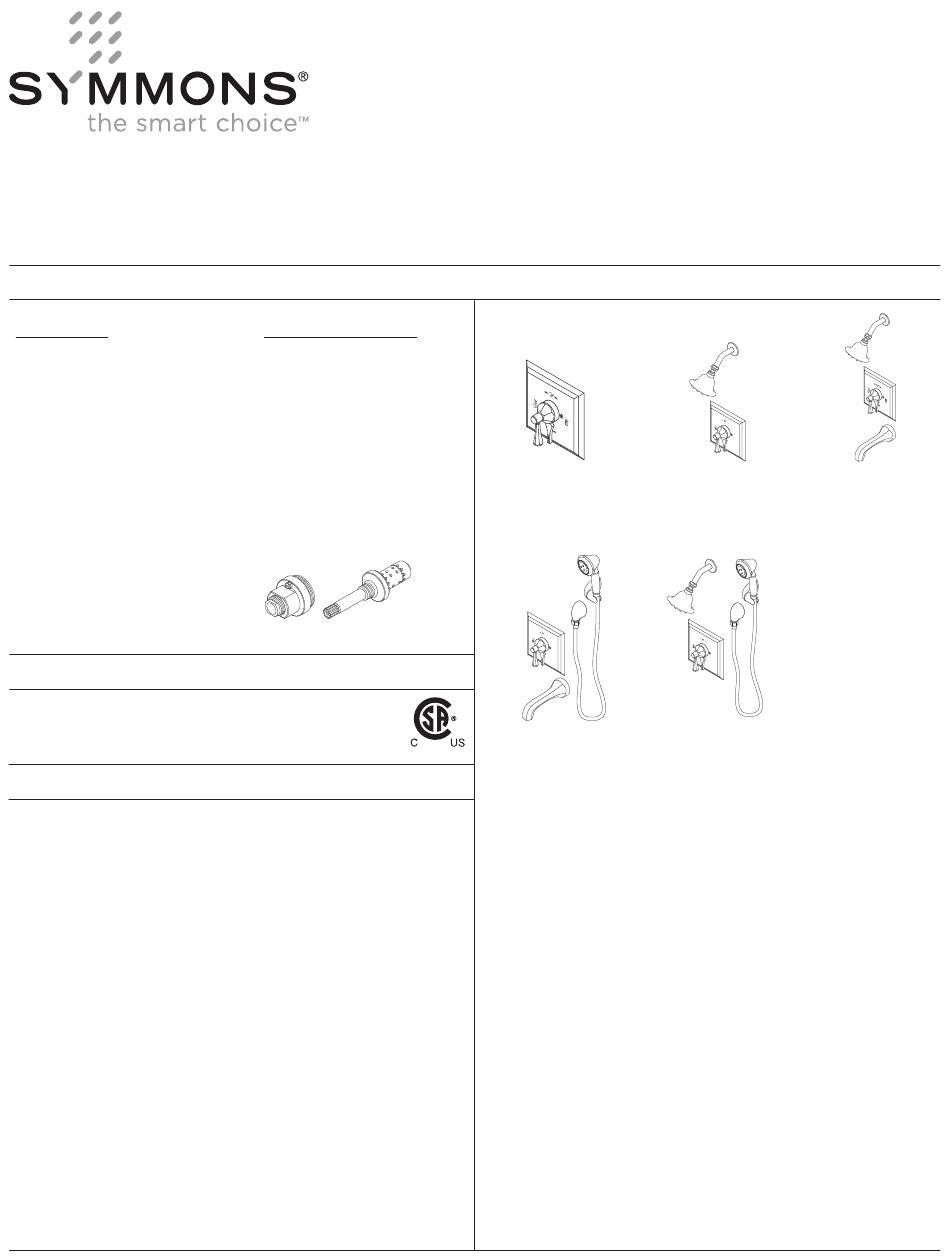

- Page 1 Canterbury ® Canterbury Trim Series Canterbury Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-4500-TRM S4500TRMTC Shower Valve Trim Shower Valve Trim S-4501-TRM S4501TRMTC Shower Trim...
- Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/4", 57 mm 8-5/8", 219 mm 2-1/8", 54 mm Male 1/2" NPT thread must be recessed 1/4" from finished wall 6", 152 mm right or left 77", 1956 mm...
- Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
- Page 4 7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 4-163 Shower Arm Flange Plug Button Set Screw T-226 Star Washer Handle Lock Nut T-19/20-PL Dome Cover Mounting Screws T-225 Shower Escutcheon Diverter/Volume T-30C Control Handle Tub Spout Hand Shower 442W Wall Cradle...
- Page 5 8. Installation - Shower Valve Trim 1) Place diverter/volume control handle into slot in shower FIGURE 8.1 FIGURE 8.2 escutcheon (FIGURE 8.1). 2) Secure large shower escutcheon to Temptrol pressure balancing valve using mounting screws. Guide handle into control port on valve body (FIGURE 8.2). 3) Install lock nut and dome cover by turning clockwise (FIGURE 8.3).
- Page 6 10. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 10.1 FIGURE 10.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 10.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
- Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3407 REV 0 030220...
