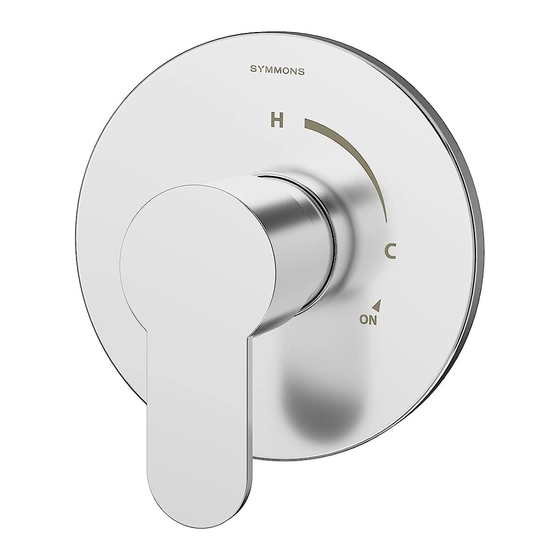

Identity Trim Series
Identity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-6700-TRM
Shower Valve Trim
S-6701-TRM
Shower Trim
S-6702-TRM
Tub/Shower Trim
S-6703-TRM
Hand Shower Trim
S-6704-TRM
Tub/Hand Shower Trim
S6708TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Identity
TRIM, TA-10, T-12A
S6700TRMTC
Shower Valve Trim
S6701TRMTC
Shower Trim
S6702TRMTC
Tub/Shower Trim
S6703TRMTC
Hand Shower Trim
S6704TRMTC
Tub/Hand Shower Trim
S6708TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
™
S-6700-TRM
S-6701-TRM
S6700TRMTC
S6701TRMTC
S-6703-TRM
S-6704-TRM
S6703TRMTC
S6704TRMTC
S-6702-TRM
S6702TRMTC
S6708TRM
S6708TRMTC
Advertisement
Table of Contents
Related Manuals for Symmons Identity Trim Series
Summary of Contents for Symmons Identity Trim Series
- Page 1 Identity ™ Identity Trim Series Identity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-6700-TRM S6700TRMTC Shower Valve Trim Shower Valve Trim S-6701-TRM S6701TRMTC Shower Trim...
- Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions FIGURE 2 Measurements 5-7/8", 149 mm 4-5/8", 117 mm Male 1/2" NPT fitting must be recessed 1/4" (6 mm) from finished wall 3-5/8", 92 mm 2-7/8", 73 mm Shower Valve Hole Size...
- Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
- Page 4 7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 672SH Shower Arm 300S Flange Handle Assy. RTS-084 Dome Cover T-19 Shower Escutcheon Screws S-6700-ESC Mounting Plate Diverter/Volume RTS-083 Control Handle Tub Spout Wall Cradle Screws EF-106 Mounting Plate Hand Shower EF-100 Wall Elbow...
- Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 10.1 FIGURE 10.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 10.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
- Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3413 REV 0 030220...
