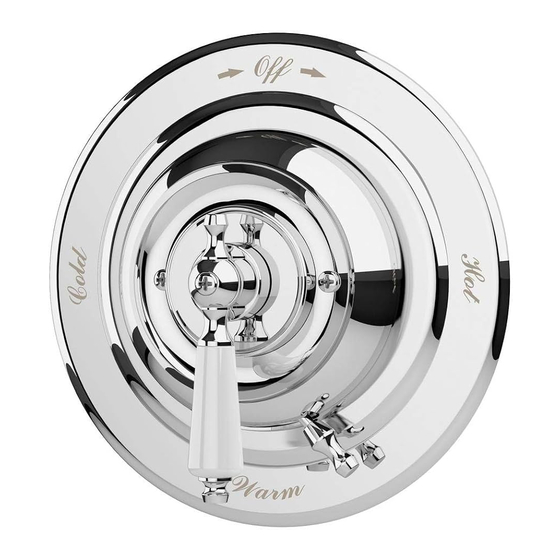

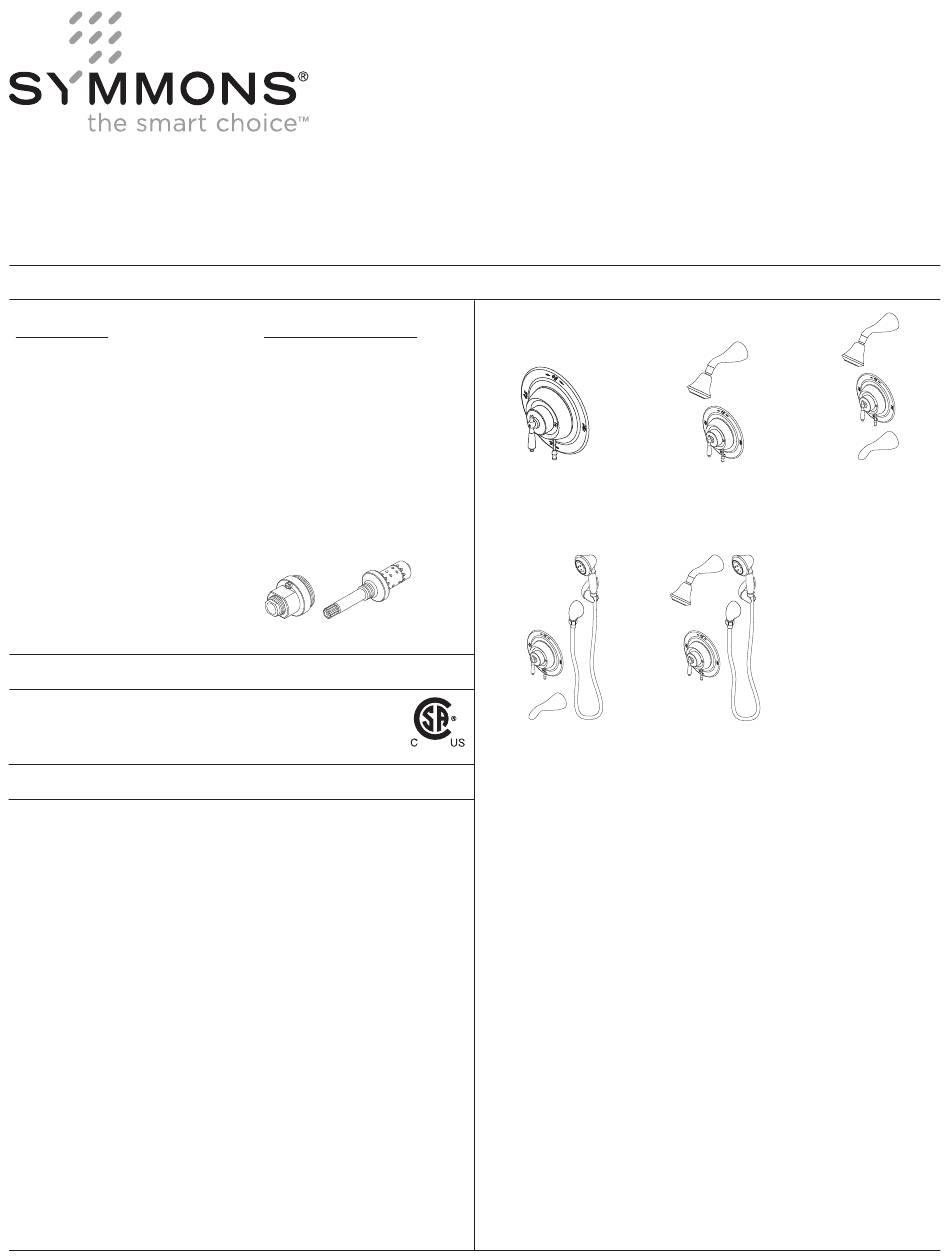

Carrington Trim Series
Carrington Trim Series with TA-10 Flow Control Spindle &
T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-4400-TRM
Shower Valve Trim
S-4401-TRM
Shower Trim
S-4402-TRM
Tub/Shower Trim
S-4404-TRM
Tub/Hand Shower Trim
S4408TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Carrington
TRIM, TA-10, T-12A
S4400TRMTC
Shower Valve Trim
S4401TRMTC
Shower Trim
S4402TRMTC
Tub/Shower Trim
S4404TRMTC
Tub/Hand Shower Trim
S4408TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-4400-TRM
S-4401-TRM
S4400TRMTC
S4401TRMTC
S-4404-TRM
S4408TRM
S4404TRMTC
S4408TRMTC
S-4402-TRM
S4402TRMTC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Carrington Series
Summary of Contents for Symmons Carrington Series
- Page 1 ASME A112.18.1/CSA B125.1 S-4404-TRM S4408TRM S4404TRMTC S4408TRMTC Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Go to www.symmons.com/register to register your Symmons product.
-
Page 2: Recommended Tools
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-5/8", 67 mm 9-1/4", 235 mm 1/2" NPT 2-1/8", 54 mm 1/2", 13 mm Male 1/2" IPS thread must be recessed 1/4"... - Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
-
Page 4: Parts Breakdown
7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 442SH Shower Arm Set Screw Handle DF-28-LPO Flange O-ring Lock Nut T-20-PL Washer 40B-PL Dome Cover DF-11 Mounting Screws DF-14-SL Escutcheon Shower Plate 7.5-ETCH Diverter/Volume DF-21/22 Control Handle Tub Spout Hand Shower 442W... - Page 5 8. Installation - Shower Valve Trim 1) Place diverter/volume control handle into slot in shower FIGURE 8.1 FIGURE 8.2 escutcheon (FIGURE 8.1). 2) Secure escutcheon and shower plate to Temptrol pressure balancing valve using mounting screws. Guide handle into control port on valve body (FIGURE 8.2). 3) Install dome cover and washer to valve.
- Page 6 10. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 10.1 FIGURE 10.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 10.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
-
Page 8: 14. Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3408 REV 0 030220...
