INSTALLATION

Mount the Communicator

The communicator should be mounted to a wall using the included #6 screws in the mounting holes. See Figure 1.
Mount the communicator in a secure, dry place to protect the communicator from damage due to tampering or the
elements. It is not necessary to remove the PCB when installing the communicator.
Mounting
Hole Location
Ethernet port
Tamper
Programming
Connection
B
Power Connection
Terminals
Digital Monitoring Products
4
J1
J8
R
J9
S3
+DC

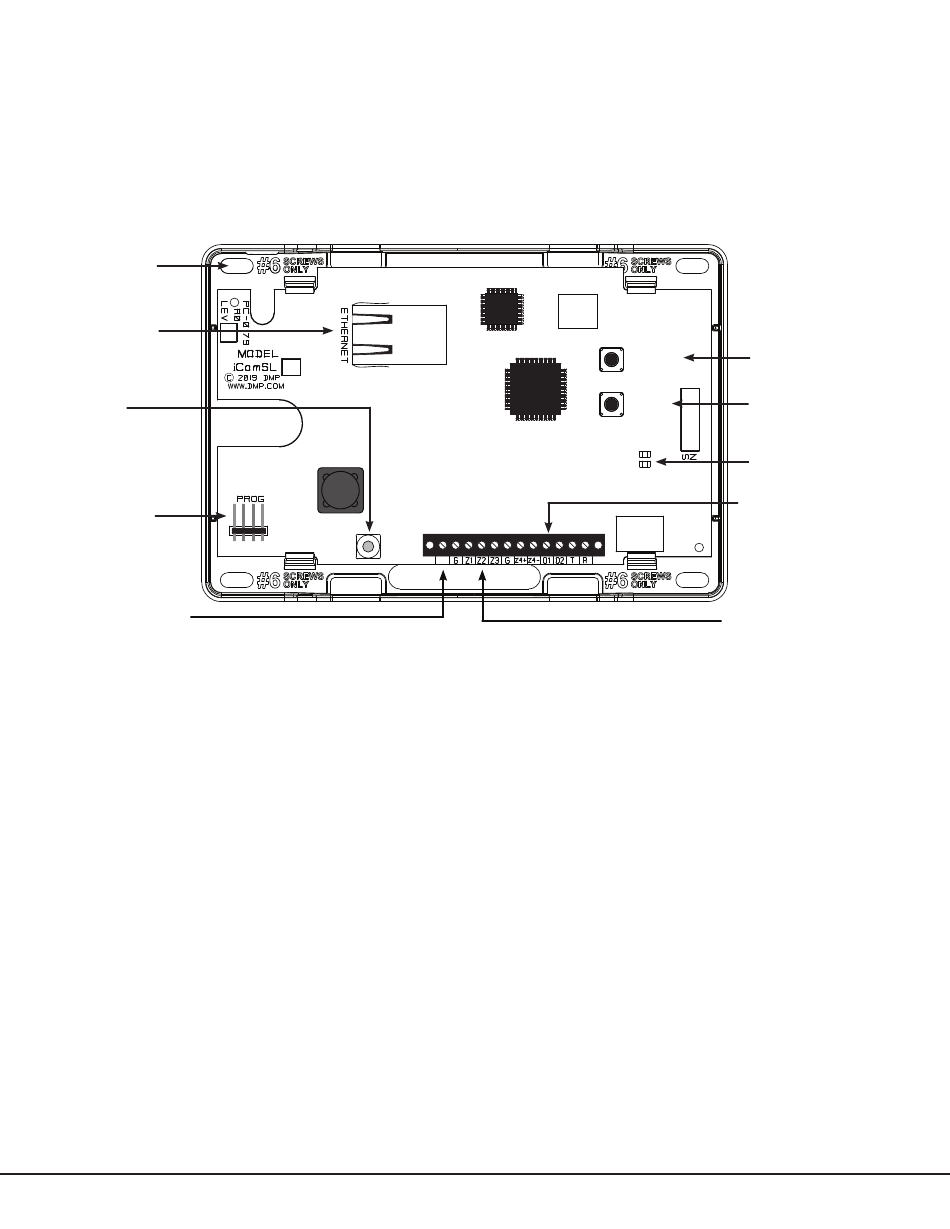

Figure 1: System Components
iCom Series Universal Alarm Communicator Programming and Installation Guide
S1
Reset Button
RESET
S2
LOAD
Load Button
Backlit Logo,
Power/Armed
LEDs
Open-Collector
Outputs
Zones 1-4
