Ademco/Honeywell ECP Connection
The communicator can be connected to the ECP Bus of an Ademco/Honeywell panel. See Table 3 and Figure 8 for the
necessary wiring connections for the iComSL to communicate with the Ademco/Honeywell ECP Bus.
The communicator provides the following operation when connected to the ECP Bus of an Ademco/Honeywell panel:
•
Arm and disarm the Ademco/Honeywell panel using the Virtual Keypad app and browser (Stay/Away systems
only).
•
Receive alarm, trouble, opening/closing, and other messages from the panel and send them to the central
station SCS‑1R or SCS‑VR receivers.
•
Add, delete, and change user codes in the Ademco/Honeywell panel.
ECP operation must be enabled in the iComSL. See Keypad Input in System Options for additional information.
Accessing Programming on the Ademco/Honeywell Panel
The installer code may be changed in Ademco/Honeywell panels and a new 4‑digit code may be entered.
If the installer code is not known, use the following steps to access programming in the Ademco/Honeywell panel
without an installer code:
1.
Power down and then power up the Ademco/Honeywell panel.
2.
Within 1 minute of powering up the Ademco/Honeywell panel, simultaneously press and hold the # and *
buttons on the keypad.
3.
The keypad displays PROGRAMMING.
Configuring Communication with the Ademco/Honeywell Panel
The following steps describe how to configure Ademco/Honeywell control panels to communicate with the
communicator.
1.
Program Position * 54: Enter 0. This enables no signaling delay.
2.
Program Position * 55: Enter 1. This enables communication to the communicator.
3.
Program Position * 65: Enter 0. This disables opening reports.
4.
Program Position * 66: Enter 0. This disables closing reports.
5.
Program Position * 84: Enter 0. This disables CP01 and allows remote Arm Away.
6.
Program Position * 193: Enter 1 0. This enables the iComSL ECP Bus address.
If the Ademco/Honeywell panel fails to communicate with the communicator, program Position * 29 to enable the
long range radio on the Ademco/Honeywell panel.
iCom Series Universal Alarm Communicator Programming and Installation Guide
Communicator to ECP Wiring
Communicator
+12
G
Z4+
Z4‑
Table 3: Communicator to Ademco/Honeywell ECP Wiring
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
Use SA4120XM-1 Cable
1 2 3 4 5 6 7 8
SYNC
BLACK
COM
RED
DATA
-
+
Ademco Vista 20P
1
2
3
4
5
6
7
8
9
10
11
-
+
+

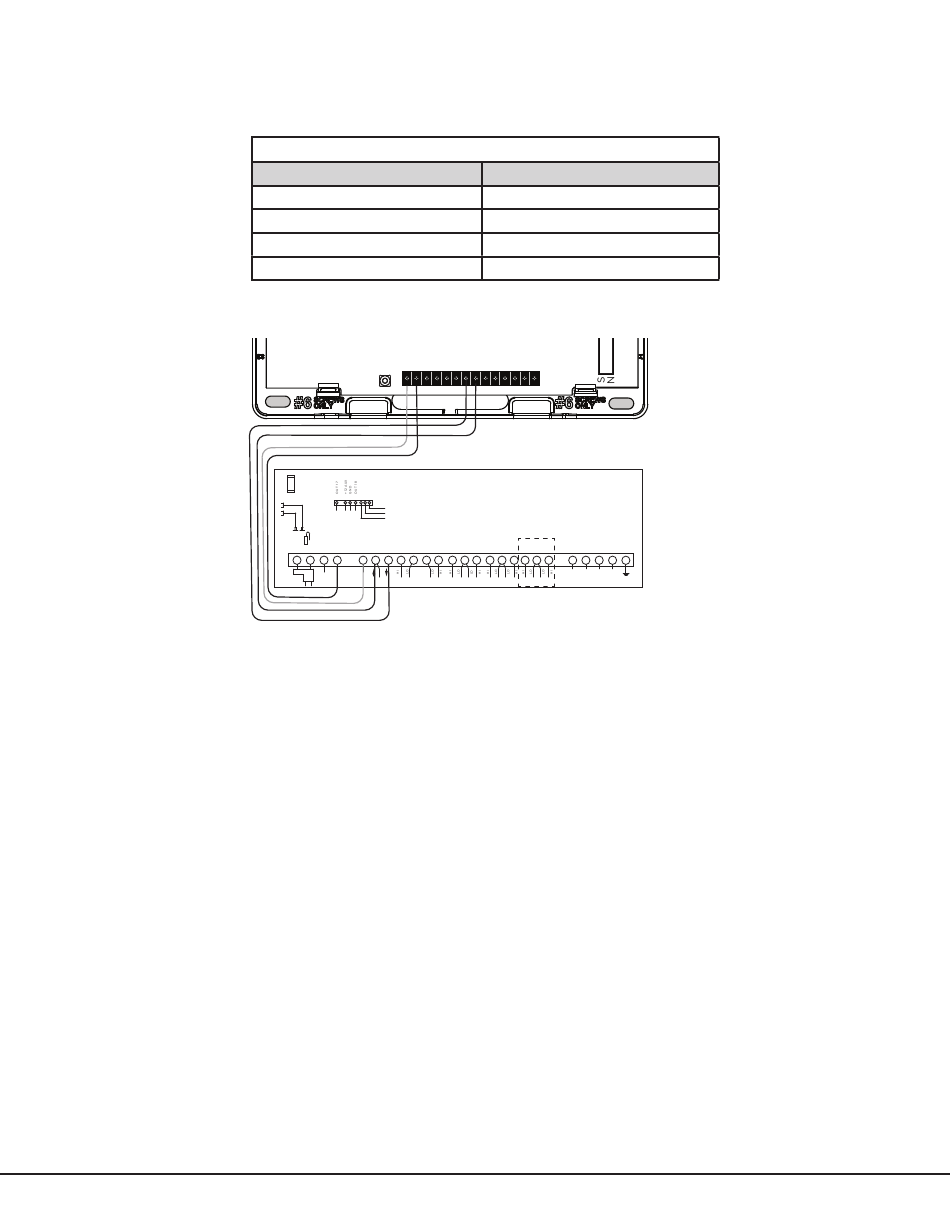

Figure 8: Communicator to Ademco Vista 20P ECP Wiring
Ademco/Honeywell ECP Bus
Keypad Power
Keypad GND
Data Out
Data In
VISTA 20P ONLY
12
13
14
15
16
17
18
19
20
21
22
23
24
25
TIP
RING
TIP
RING
(BROWN)
(GRAY)
(GREEN)
(RED)
Digital Monitoring Products
9
