COMPLIANCE
iComSLF Commercial Fire Slave Communicator Installation
ANSI/UL 864
Fire Protective Signaling Systems using Internet/Intranet/Cell Networks
A Performance Based Technologies system as defined in UL 864 10th Edition may be configured as NET Primary with
or without a backup path. The system may be configured as the following:
Path 1 Type NET Primary with no Backup
Path 1 Programming
Comm Type = NET
Path Type = Primary
Test Rpt = No
Checkin = Yes
Model 685‑R backbox Installation
For Commercial Fire applications using the iComSLF and the included red plastic Model 685‑R backbox, mount the
backbox to the wall with the 1" #6 screws included with the iComSLF. Mount the iComSLF to the backbox with the
1/2" #6 screws included with the backbox. Locate the iComSLF within 20 feet of the control panel and route all wire in
conduit.
The iComSLF may be installed using any of the applications listed in the Applications section to receive signals from
the fire alarm panel.
Digital Monitoring Products
38
Checkin Min = 58
Failtime Min = 60
# 6 Screws Included
with Backbox
For Future Use

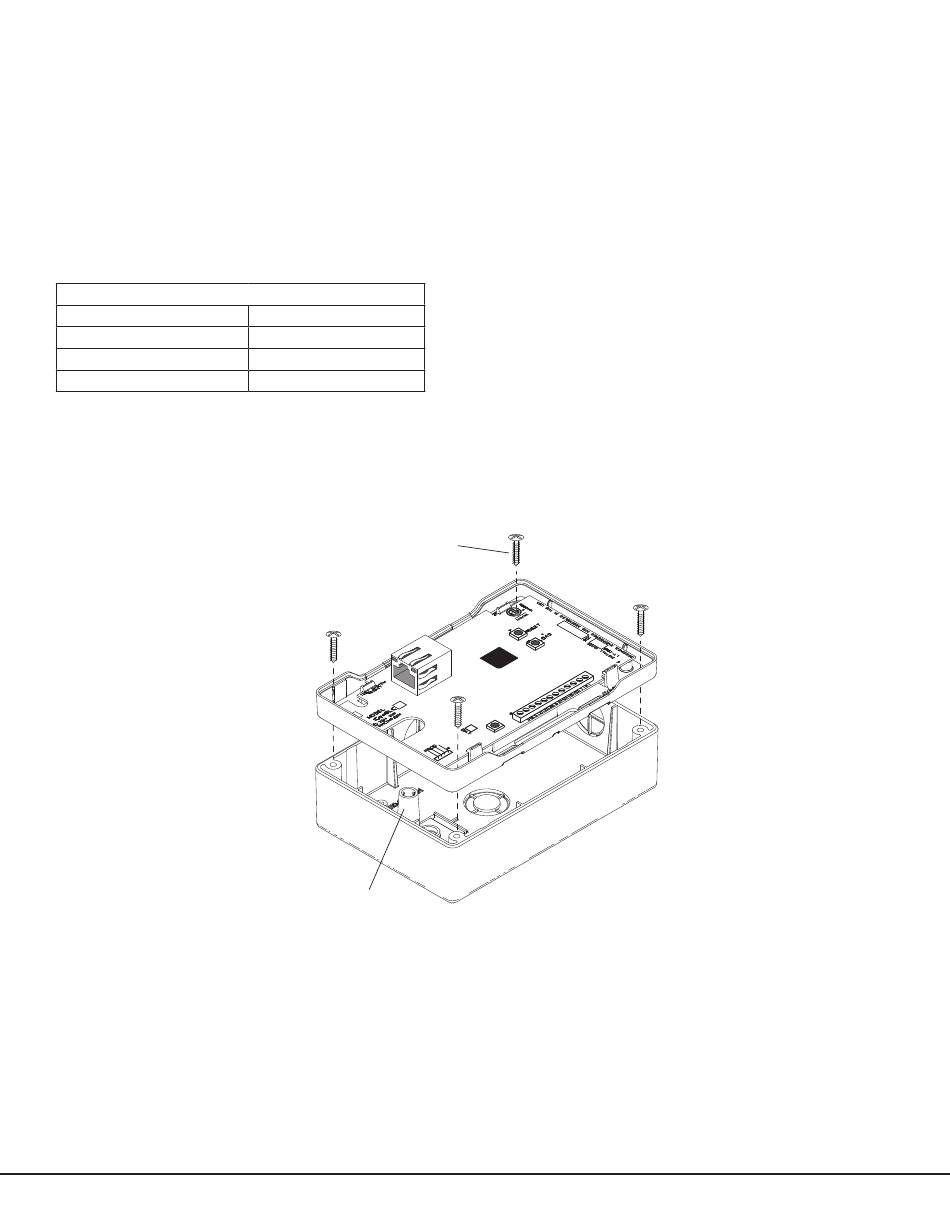

Figure 17: Mounting iComSL to Model 685 Back Box
