Banner SureCross DX80 GatewayPro Series Manual
Gatewaypro models for protocol conversion or web-based configuration
Hide thumbs
Also See for SureCross DX80 GatewayPro Series:
- Network manual (110 pages) ,
- Product manual (109 pages) ,
- Reference manual (96 pages)
Table of Contents
Advertisement
Quick Links

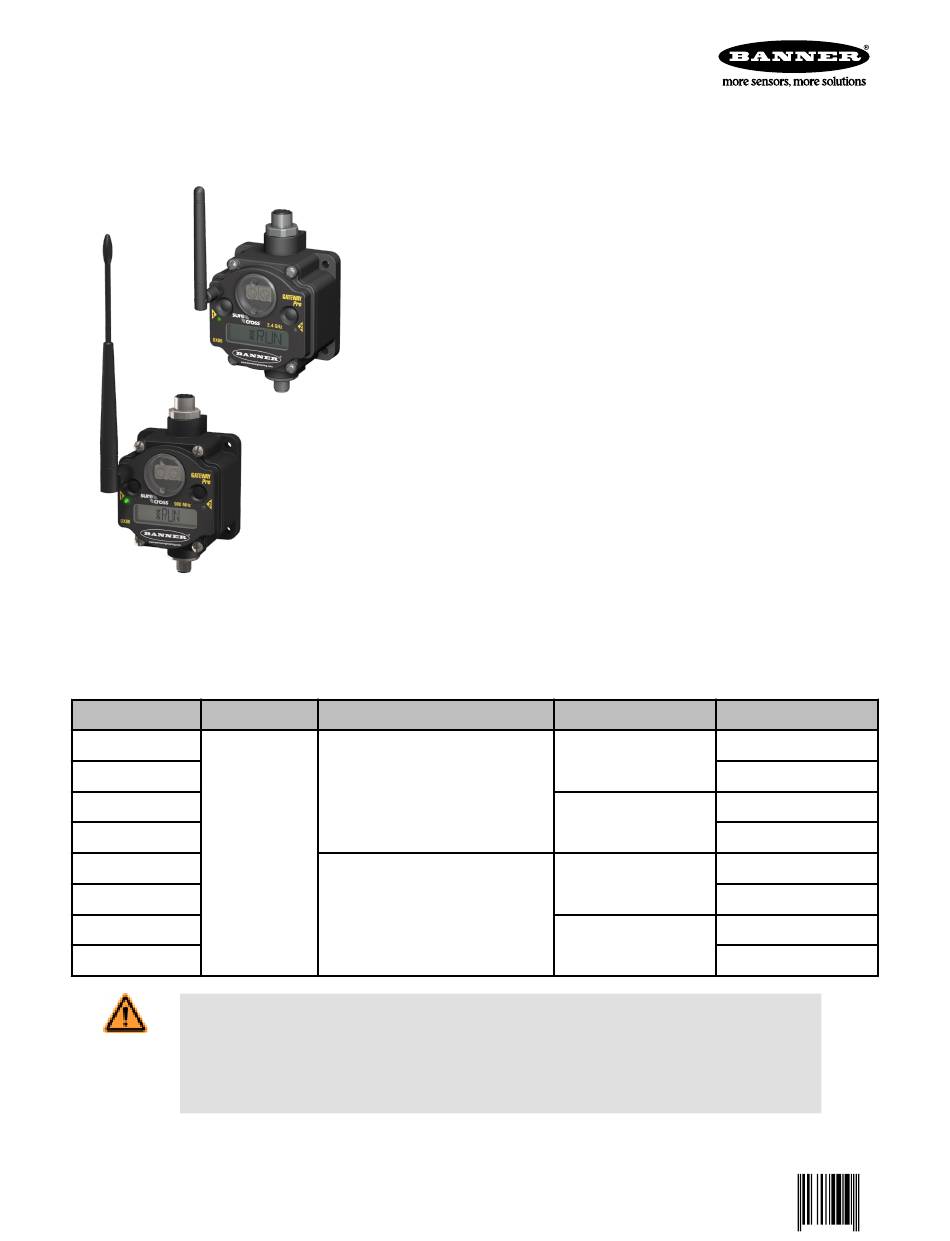

SureCross DX80 GatewayPro
GatewayPro models for protocol conversion or web-based configuration
Features
2.4 GHz
900 MHz
For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's
website, www.bannerengineering.com/surecross.
Models
Model
Power
DX80P9T6S
DX80P9T6W
DX80P2T6S
DX80P2T6W
+10 to 30V dc
DX80P9A6S
DX80P9A6W
DX80P2A6S
DX80P2A6W
WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to seri-
ous injury or death. This product does NOT include the self-checking redundant circuitry necessary to
allow its use in personnel safety applications. A sensor failure or malfunction can cause either an ener-
gized or de-energized sensor output condition.
P/N 131933 rev. F
The SureCross® wireless system is a radio frequency network with integra-
ted I/O that can operate in most environments and eliminate the need for
wiring runs. Wireless networks are formed around a Gateway, which acts as
the wireless network master device, and one or more Nodes.
• 10 to 30V dc power input
• Modbus serial interface and Ethernet interface
• Site Survey analyzes the network's signal strength and reliability and dis-
plays the results on the Gateway's LCD
• Frequency Hopping Spread Spectrum (FHSS) technology and Time Divi-
sion Multiple Access (TDMA) control architecture combine to ensure reli-
able data delivery within the unlicensed Industrial, Scientific, and Medical
(ISM) band
• Transceivers provide bidirectional communication between the Gateway
and Node, including fully acknowledged data transmission
Feature
Modbus/TCP or EtherNet/IP commu-
nication protocol
Modbus/TCP protocol, Configuration
capability using the Web Configurator
6/29/2012
Frequency
Antenna
External
900 MHz ISM Band
Internal
External
2.4 GHz ISM Band
Internal
External
900 MHz ISM Band
Internal
External
2.4 GHz ISM Band
Internal
0 131933
1
Advertisement
Table of Contents
Related Manuals for Banner SureCross DX80 GatewayPro Series
Summary of Contents for Banner SureCross DX80 GatewayPro Series
- Page 1 • Transceivers provide bidirectional communication between the Gateway and Node, including fully acknowledged data transmission 900 MHz For additional information, the most recent version of all documentation, and a complete list of accessories, refer to Banner Engineering's website, www.bannerengineering.com/surecross. Models...
-
Page 2: The Surecross® Dx80 Wireless Network
SureCross DX80 GatewayPro The SureCross® DX80 Wireless Network The SureCross® DX80 wireless I/O network provides reliable monitoring without the burden of wiring or conduit installation. The Sure- Cross wireless network can operate independently or in conjunction with a host system, PLC, and/or PC software. Each wireless network system consists of one Gateway and one or more Nodes. - Page 3 To change the device’s default IP address, first set up the host PC with an IP address different from the Ethernet Bridge, GatewayPro, or MultiHop Pro IP addresses. (Please refer to Banner document 133116 for detailed instructions on setting up the host computer’s network IP address.) For example, change the PC host IP address to: 192.168.0.2.
-
Page 4: Industrial Ethernet Wiring
For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a list of accesso- ries, refer to one of the following product manuals • SureCross Quick Start Guide: Banner part number 128185 • SureCross Wireless I/O Network Manual: 132607 •... -
Page 5: Dip Switch Settings
SureCross DX80 GatewayPro I/O Point Modbus Holding Register Gateway Any Node 11 + (Node# × 16) 12 + (Node# × 16) 13 + (Node# × 16) 14 + (Node# × 16) 15 + (Node# × 16) 16 + (Node# × 16) DIP Switch Changes Before making any changes to the DIP switch positions, disconnect the power. -
Page 6: Specifications
SureCross DX80 GatewayPro Extended address mode uses a security code to "bind" Nodes to a specific Gateway. Bound Nodes can only send and receive informa- tion from the Gateway to which they are bound. In extended address mode, wireless networks may contain up to 48 radio devices. For more information on extended address mode, refer to the SureCross™... -
Page 7: Ethernet Cables
All specifications published in this document are subject to change. Banner reserves the right to modify the specifications of prod- ucts without notice. Banner Engineering reserves the right to update or change documentation at any time. For the most recent version of any documentation, refer to our website: www.bannerengineering.com. -
Page 8: Exporting Surecross Radios
Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture which, at the time it is returned to the factory, is found to have been defective during the warranty period.
