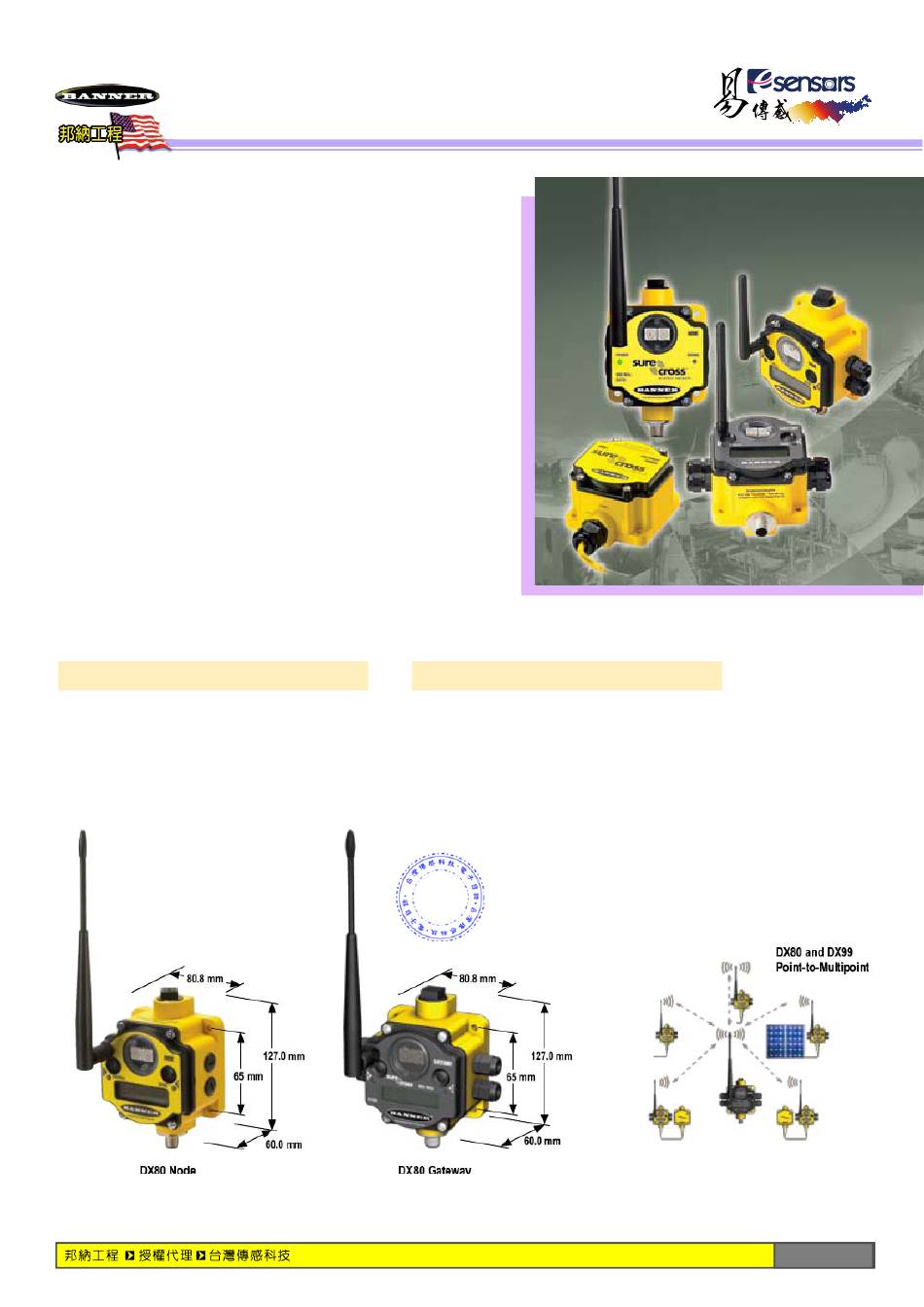

SureCross™
DX80 單點對多點模組
§ 工業無線I/O網路，能夠在嚴酷的環境下執行，
可節省昂貴的線材費用。
§ 基本的網路包括通道系統控制和一個或多個節點，
可達到遠端監視和遠端控制I/O。
§ 節點模組設置容易，便可與通道模組傳遞資料。
§ 利用跳頻技術(FHSS)分時多工(TDMI)可穩定使用於
工業環境來傳輸I/O資料。
§ Flex Power™模組支援+10~30Vdc，太陽能板、
電池模組。
§ 擁有堅固且達IP67防水等級的外殼。
通道模組
§通道模組為無線網路系統的母機
§具有Modbus通訊協定
§具有數位及類比等多種I/O點
節點模組
§節點模組為無線網路系統的子機
§具有多種電源選擇
§具有數位及類比等多種I/O點
www.e-sensors.com.tw
www.e-sensors.com.tw
B
2-1
X
Advertisement
Related Manuals for Banner SureCross DX80 Series
Summary of Contents for Banner SureCross DX80 Series
- Page 1 SureCross™ DX80 單點對多點模組 § 工業無線I/O網路，能夠在嚴酷的環境下執行， 可節省昂貴的線材費用。 § 基本的網路包括通道系統控制和一個或多個節點， 可達到遠端監視和遠端控制I/O。 § 節點模組設置容易，便可與通道模組傳遞資料。 § 利用跳頻技術(FHSS)分時多工(TDMI)可穩定使用於 工業環境來傳輸I/O資料。 § Flex Power™模組支援+10~30Vdc，太陽能板、 電池模組。 § 擁有堅固且達IP67防水等級的外殼。 通道模組 節點模組 §通道模組為無線網路系統的母機 §節點模組為無線網路系統的子機 §具有Modbus通訊協定 §具有多種電源選擇 §具有數位及類比等多種I/O點 §具有數位及類比等多種I/O點 www.e-sensors.com.tw www.e-sensors.com.tw...
- Page 2 SureCross™ DX80 單點對多點模組 DX80 EtherNet/IP and Modbus TCP 通道模組 頻率 型號 DX80 Modbus RTU 通道模組 , 10–30V dc 頻率 型號 防護等級 www.e-sensors.com.tw www.e-sensors.com.tw...
- Page 3 SureCross™ DX80 單點對多點模組 DX80 通道模組, FlexPower 頻 率 型 號 DX80 節點模組, 10~30Vdc-Analog and Discrete 頻率 型號 防護等級 DX80 節點模組, FlexPower -Analog and Discrete 防護 頻率 型號 等級 www.e-sensors.com.tw www.e-sensors.com.tw...
-
Page 4: Surecross™ Dx80 Gatewaypro
These products do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A failure or malfunction can cause either an energized or de-energized output condition. Consult your current Banner Safety Products catalog for safety products that meet OSHA, ANSI, and IEC standards for personnel protection. - Page 5 GatewayPro directly to the host system without using an Ethernet switchbox/hub, use a crossover cable. When using an Ethernet hub, use a straight Ethernet cable. By default, the DX80 GatewayPro is a Modbus/TCP or EtherNet/IP™ server. To configure the GatewayPro as a Modbus client device, change the configuration using the configuration Web pages. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 131933 rev. E...
-
Page 6: Hookup Diagrams
For additional information, including installation and setup, weatherproofing, device menu maps, troubleshooting, and a list of accessories, refer to the SureCross™ DX80 Wireless I/O 12 + (Node# × 16) Network product manual, Banner p/n 132607. For Modbus RTU, Modbus/TCP, and EtherNet/ 13 + (Node# × 16) IP™ register maps, refer to Banner document p/n 132114. 14 + (Node# × 16) 15 + (Node# × 16) 16 + (Node# × 16) * T hese are the I/O points as displayed on the device LCD. -
Page 7: Device Configuration
DIP switch in the OFF position. To use extended address mode, Mount the cover back onto the housing. change the DIP switch to the ON position. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 131933 rev. E... -
Page 8: Specifications
10/100 Mbps, full or half duplex, auto sensing It is Banner Engineering’s intent to fully comply with all national and regional regulations regarding radio frequency emissions. Customers who want to re-export this product to a country other than that to which it was sold must ensure that the device is approved in the destination country. A list of approved countries appears in the SureCross DX80 Wireless Product Manual, in the Agency Certifications section. - Page 9 Environmental Environmental Rating* IEC IP67; NEMA 6 Operating Temperature** −40 to +85° C (Electronics); −20 to +80° C (LCD) Operating Humidity 95% max. relative (non-condensing) Radiated Immunity 10 V/m, 80-2700 MHz (EN61000-6-2) Shock and Vibration IEC 68-2-6 and IEC 68-2-7 Shock: 30g, 11 millisecond half sine wave, 18 shocks Vibration: 0.5 mm p-p, 10 to 60 Hz * Please refer to the SureCross™ DX80 Wireless I/O Network product manual, Banner p/n 132607, for installation and waterproofing instructions. ** Operating the devices at the maximum operating conditions for extended periods can shorten the life of the device. Certifications, Radio 900 MHz Models FCC ID TGUDX80: This device complies with FCC Part 15, Subpart C, 15.247 IC: 7044A-DX8009 2.4 GHz Models FCC ID UE300DX80-2400: This device complies with FCC Part 15, Subpart C, 15.247 ETSI/EN: In accordance with EN 300 328: V1.7.1 (2006-05) IC: 7044A-DX8024 Included with Device Model Item Mounting Hardware Kit BWA-HW-001 Screw, M5-0.8 x 25mm, SS...
- Page 10 BWA-EX2M Ethernet cable, crossover, RSCD RJ45CR 440, 2M Use a crossover cable to connect the DX80 GatewayPro to a host system without using an Ethernet switchbox or hub. When using a switchbox or hub, use the straight cables. Banner Engineering Corp. • Minneapolis, MN U.S.A www.bannerengineering.com • Tel: 763.544.3164 P/N 131933 rev. E...
- Page 11 Banner products. This warranty is in lieu of any other warranty either expressed or Contact the Factory for more information. implied. All specifications published in this document are subject to change. Banner reserves the right to modify the specifications of products, prior to their order, without notice. Banner Engineering reserves the right to update or change documentation at any time. For the most recent version of any documentation, please refer to our website: www. bannerengineering.com. © 2007 Banner Engineering Corp. All rights reserved.
