Altronix MAXIMAL FIT MaxFit11FE Installation Manual page 8

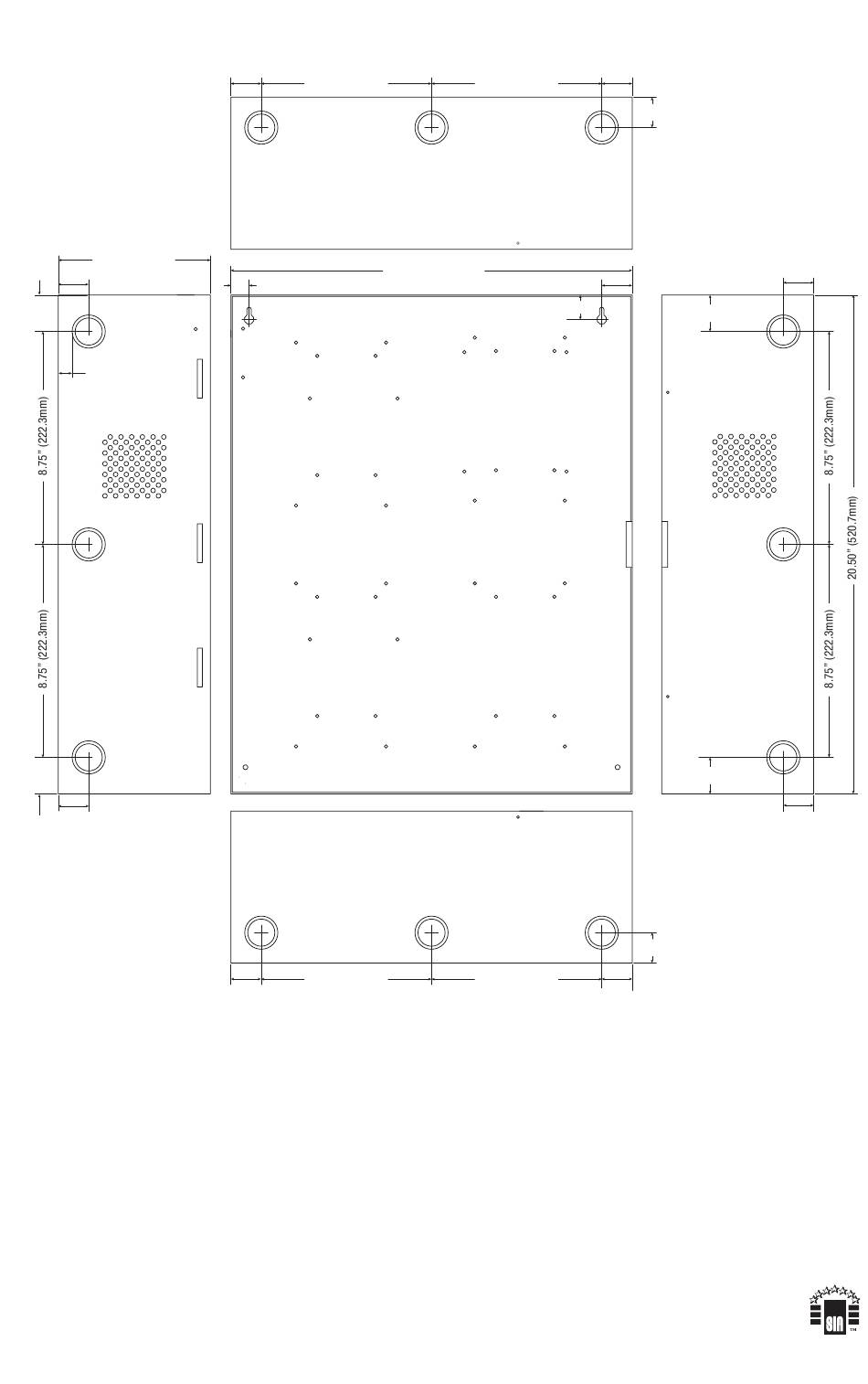

MaxFit Enclosure Dimensions (approximate):
1.25" (31.8mm)
6.25" (158.8mm)
1.25" (31.8mm)
1.50"
(38.1mm)
0.569" (14.5mm)
1.50"
(38.1mm)
1.25" (31.8mm)
1.25" (31.8mm)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIMaxFit Expandable 2 PS Series
- 8 -
20.5" x 16.5" x 6.25" (520.7mm x 419.1mm x 158.8mm)
7.00" (177.8mm)
0.75" (19.1mm)
7.00" (177.8mm)
MaxiFit11FE/13FE/33FE/35FE/37FE/55FE/75FE/77FE Expandable Power Systems Installation Guide
7.00" (177.8mm)
16.50" (419.1mm)
1.25" (31.8mm)
1.00" (25.4mm)
7.00" (177.8mm)
F24U
1.25" (31.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
1.50" (38.1mm)
1.50" (38.1mm)
1.25" (31.8mm)
1.25" (31.8mm)
1.25" (31.8mm)
