LED enable/disable pins. The LED is enabled, if the jumper is placed over the pins (the pins are shorted).
dual element pyrosensor. Do not touch the pyroelectric sensor, so as not to soil it.
potentiometer for sensitivity adjustment.

5. Installation

Disconnect power before making any electrical connections.

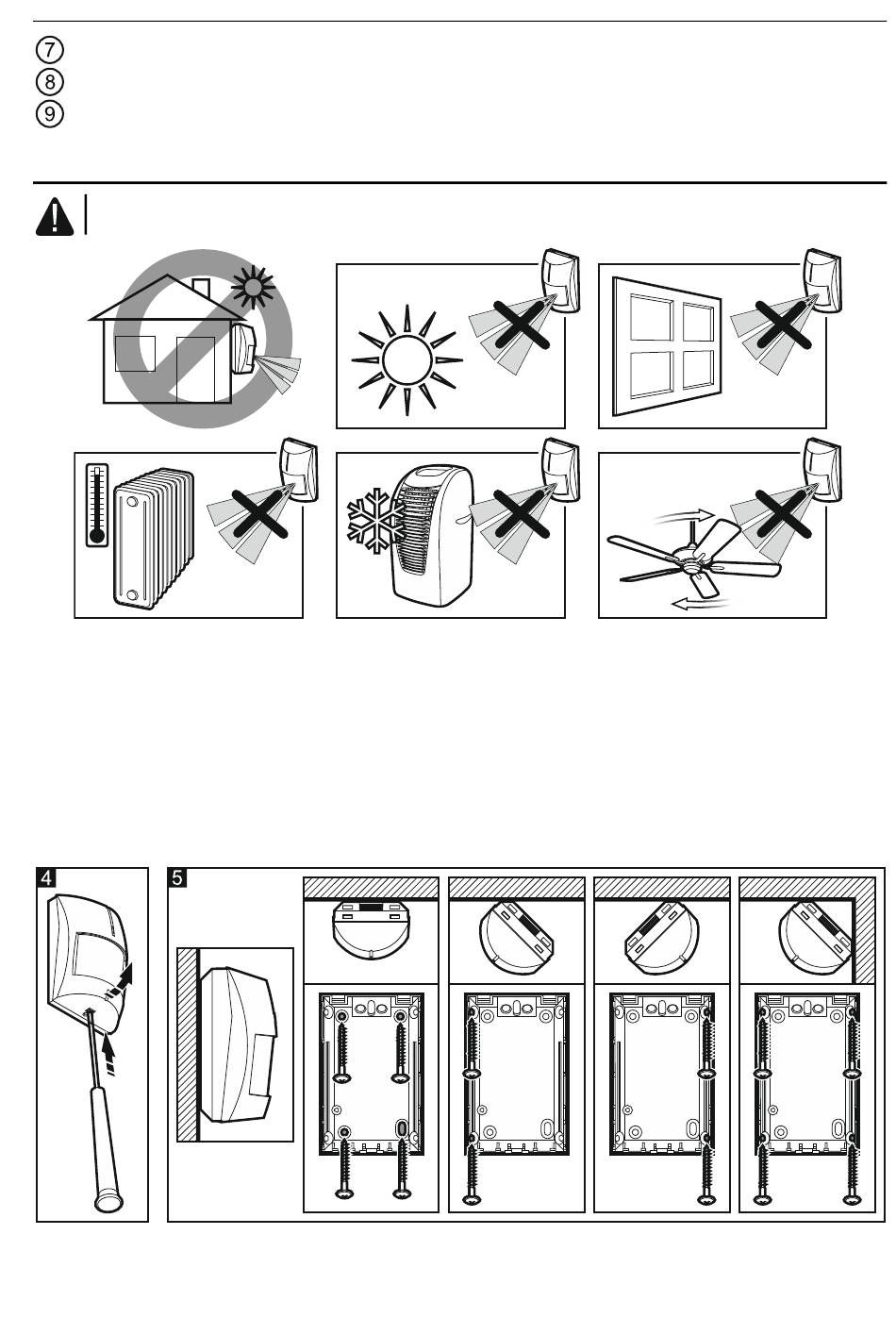

1. Remove the front cover (Fig. 4).
2. Remove the electronics board.
3. Make the openings for screws and cable in the enclosure base.
4. Pass the cable through the prepared opening.
5. Secure the enclosure base to the wall (Fig. 5).
6. Fasten the electronics board. The middle line of the scale for positioning the electronics board should be
aligned with the mark in the enclosure base (the detector installed at a height of 2.4 m above the floor).
7. Connect the wires to the corresponding terminals.
8. Using potentiometer and jumpers, set the detector working parameters.
9. Replace the cover.
