6. Start-up and walk test

Note: When testing the detector, the LED should be enabled.
1. Power-up the detector. The LED will start blinking, which indicates the detector warm-up.

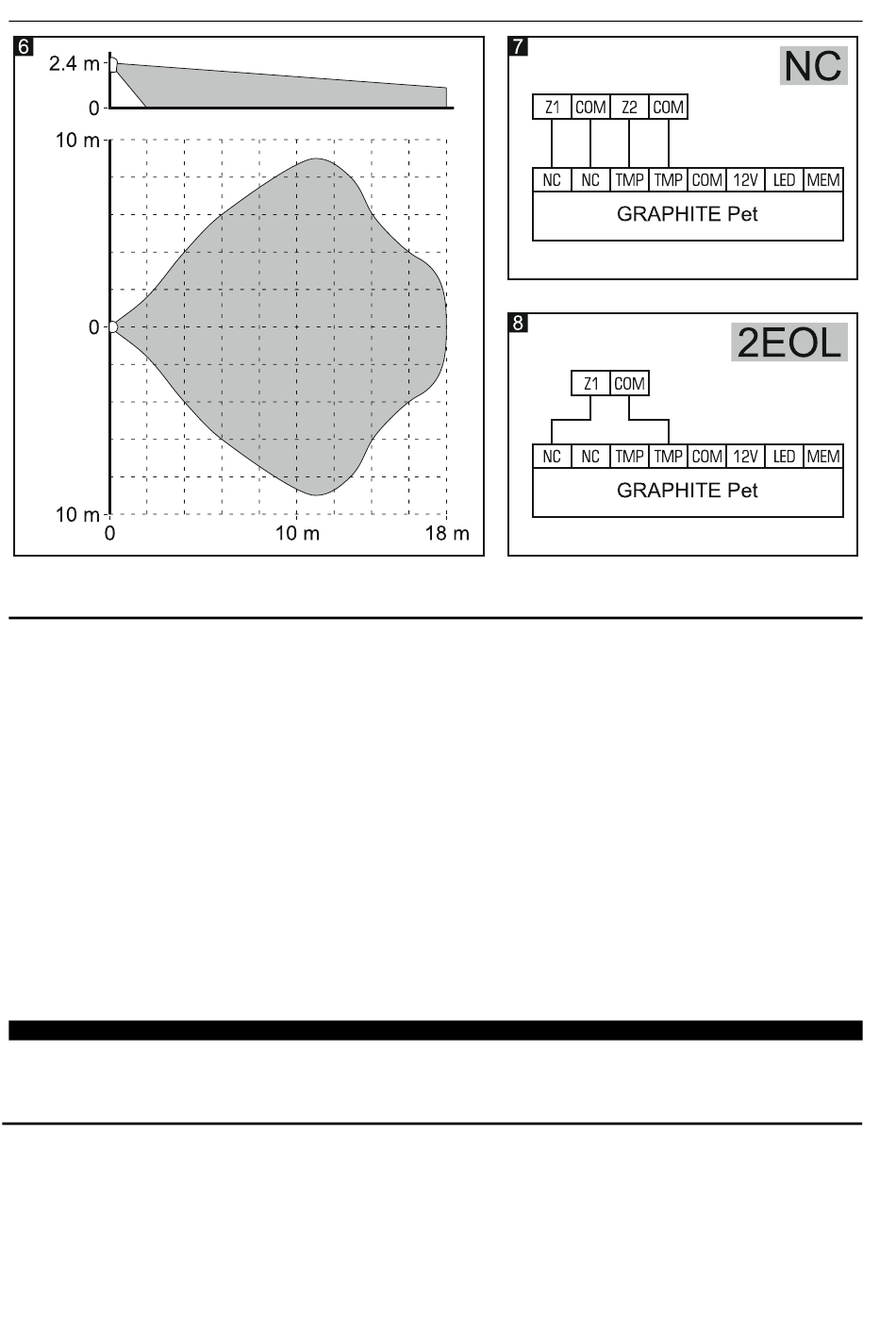

2. When the LED stops blinking, check that moving within the coverage area (Fig. 6 shows the maximum
coverage area – at the maximum sensitivity) will activate the alarm relay and make the LED light up.
