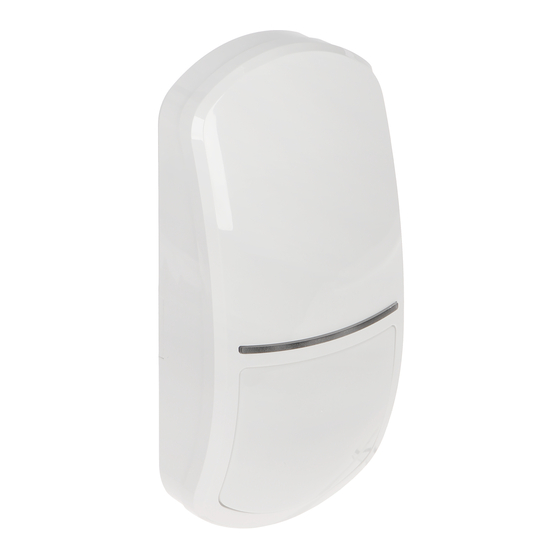

Wireless passive infrared detector with pet immunity up to 20 kg

Advertisement

Quick Links

MPD-310 Pet
Wireless passive infrared detector
with pet immunity up to 20 kg
Firmware version 1.00
mpd-310_pet_en 06/20
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the micra MPD-310 Pet and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel micra MPD-310 Pet

  • Page 1 MPD-310 Pet Wireless passive infrared detector with pet immunity up to 20 kg Firmware version 1.00 mpd-310_pet_en 06/20 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
  • Page 3: Table Of Contents

    CONTENTS Features ........................... 2 Description ........................2 Radio communication ....................... 2 Alarms ..........................2 Operating modes ......................2 Test mode ......................... 2 LEDs ..........................3 Supervision of motion detection system ................3 Battery status control ......................3 Electronics module ......................3 Selecting a mounting location ...................
  • Page 4: Features

    MPD-310 Pet SATEL The MPD-310 Pet detector detects motion in a protected area. The detector is supported by:  PERFECTA alarm control panels (WRL models),  VERSA-MCU controller,  MTX-300 controller,  MICRA alarm module (firmware version 2.02 or newer).
  • Page 5: Leds

    SATEL MPD-310 Pet LEDs The LEDs are flashing for about 15 seconds from inserting the battery, signaling the warm-up of the detector. The LEDs are also enabled in the test mode, in which they indicate:  periodical transmission – short flash (80 milliseconds), ...
  • Page 6: Selecting A Mounting Location

    MPD-310 Pet SATEL detector configuration pins. For how to configure the detector, see the figures: 2 – operating mode selection: jumper off – normal mode; jumper on – energy save mode. 3 – sensitivity selection: jumper off – normal sensitivity (Fig. 4);...
  • Page 7: Installation

    SATEL MPD-310 Pet  Do not install the detector in places where it will be exposed to direct sunlight (D) or light reflected from other objects (E).  Do not point the detector towards fans (F), air conditioner (G) or heat sources (H).
  • Page 8 MPD-310 Pet SATEL 9. Open the enclosure but do not remove the front cover. If the transmission from the detector is received, continue with the installation. If the transmission from the detector is not received, select a different mounting location and repeat the test. Sometimes, it is sufficient to shift the detector ten or twenty centimeters.
  • Page 9: Specifications

    SATEL MPD-310 Pet 5 Specifications Operating frequency band ............... 433.05 ÷ 434.79 MHz Radio communication range (in open area) PERFECTA ....................up to 600 m VERSA-MCU / MTX-300 / MICRA ............. up to 500 m MRU-300 ....................up to 250 m Battery ........................
