Satel AMD-102 Manual

AMD-102
WIRELESS MAGNETIC CONTACT
WITH INPUT FOR ROLLER SHUTTER DETECTOR

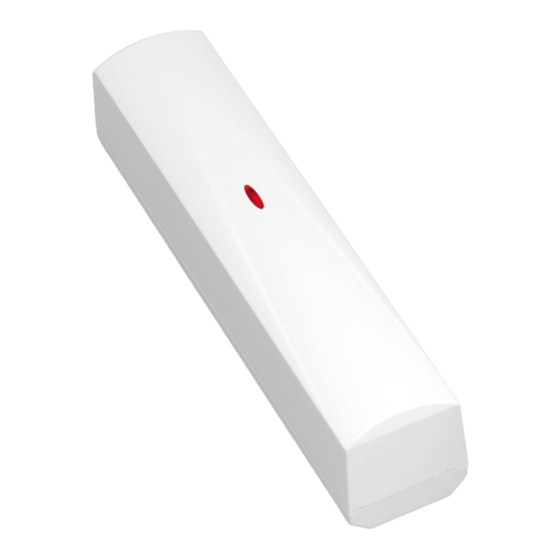

The AMD-102 magnetic contact can detect opening of a door, window, etc. It is provided with two
additional inputs: one for roller shutter detector and one of NC type. The detector is designed for
use as part of the ABAX two-way wireless system. This manual applies to the magnetic contact
with firmware version 5.01, which is supported by:

ACU-120 / ACU-270 controller,

ACU-100 / ACU-250 controller with firmware version 4.03 2014-05-15 (or newer),

ARU-100 repeater with firmware version 2.00 2014-05-15 (or newer),

INTEGRA 128-WRL control panel with firmware version 1.12 2013-12-20 (or newer).

1. Features


Two reed switches allowing to select the magnet installation manner.

Input for connecting a hardwired roller shutter detector.

Input for connecting an NC type hardwired detector.

Remote configuration.

LED indicator enabled in test mode.

Tamper protection against cover removal and tearing enclosure from the wall.

2. Specifications

Operating frequency band ......................................................................... 868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area).................................................................. up to 500 m
NC type input sensitivity ...................................................................................................... 312 ms
Battery......................................................................................................................... CR123A 3 V
Battery life expectancy ............................................................................................approx. 3 years
Standby current consumption.................................................................................................50 µA
Maximum current consumption ............................................................................................. 16 mA
Complied with standards .... EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6, EN 50131-5-3
Security grade according to EN50131-2-6.......................................................................... Grade 2
Environmental class according to EN50130-5 ............................................................................... II
Operating temperature range .................................................................................. -10 °C...+55 °C
Maximum humidity ............................................................................................................... 93±3%
Detector enclosure dimensions ........................................................................... 26 x 112 x 29 mm
Surface mounted magnet enclosure dimensions...................................................26 x 13 x 19 mm
Surface mounted magnet spacer dimensions.......................................................26 x 13 x 3.5 mm
Flush mounted magnet enclosure dimensions ......................................................28 x 10 x 10 mm
Weight ...................................................................................................................................... 76 g
Hereby, SATEL sp. z o.o., declares that this detector is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at www.satel.eu/ce
1471
amd102_en 11/16
