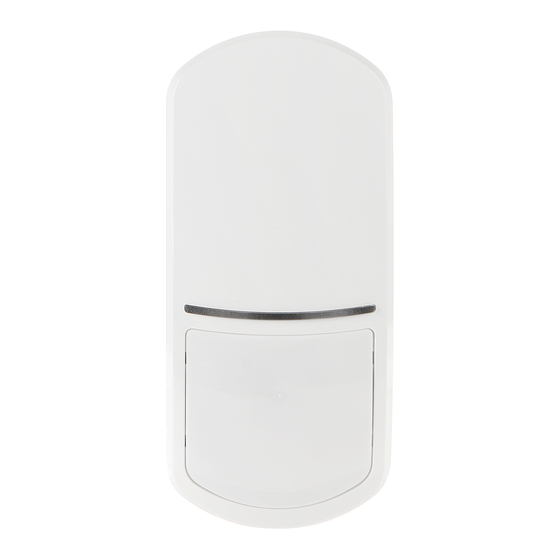

Satel SLIM-PIR-LUNA-PET Manual

Digital passive infrared detector with lighting feature and pet immunity up to 20 kg
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SLIM-PIR-LUNA-PET
Digital passive infrared detector
with lighting feature
and pet immunity up to 20 kg
Firmware version 1.00
slim-pir-luna-pet_en 10/19
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLIM-PIR-LUNA-PET and is the answer not in the manual?

Questions and answers

Related Manuals for Satel SLIM-PIR-LUNA-PET

Summary of Contents for Satel SLIM-PIR-LUNA-PET

  • Page 1 SLIM-PIR-LUNA-PET Digital passive infrared detector with lighting feature and pet immunity up to 20 kg Firmware version 1.00 slim-pir-luna-pet_en 10/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.

  • Page 3: Table Of Contents

    CONTENTS Features ........................... 2 Description........................2 Lighting feature......................... 2 Supervision features ......................2 LED indicators ........................3 Remote switching between PIR sensor sensitivity............3 Remote configuration mode enable/disable..............3 Electronics module ......................3 Terminal block ........................5 Selecting a mounting location................... 6 Installation ........................

  • Page 4: Features

    SLIM-PIR-LUNA-PET SATEL The SLIM-PIR-LUNA-PET detector detects movement in the protected area. Additionally, the detector has a set of LEDs to provide the lighting feature. This manual applies to the detector with electronics version D. 1. Features  Motion detection with passive infrared sensor (PIR).

  • Page 5: Led Indicators

    SATEL SLIM-PIR-LUNA-PET LED indicators The LEDs indicate:  warm-up – flashing alternately different colors for about 30 seconds;  alarm – ON for 2 seconds (default color: blue);  trouble – steady ON for entire duration of the trouble (the same color of lighting as in case of alarm).
  • Page 6 Fig. 10. infrared receiver allowing to configure the detector by means of OPT-1 keyfob. The keyfob is available in SATEL's product range. MODE button used for configuring the detector (see “Configuring the detector”).

  • Page 7: Terminal Block

    SATEL SLIM-PIR-LUNA-PET 4. Terminal block The terminal block is located on the enclosure base (Fig. 6). To get access to the terminals, you must remove the electronics module (Fig. 8). SENS - switching between PIR sensor sensitivity. - tamper output (NC relay).

  • Page 8: Selecting A Mounting Location

    SLIM-PIR-LUNA-PET SATEL 5. Selecting a mounting location  Do not install the detector outdoors (A).  Install the detector at the recommended height (B).  When choosing the installation location, keep in mind that the detector performance will be the best where the expected direction of the intruder movement will be across the coverage pattern (C).

  • Page 9: Installation

    SATEL SLIM-PIR-LUNA-PET 6. Installation Disconnect power before making any electrical connections. If the detector is to be pet immune, it must not be mounted on the bracket and must be installed at a height of 2.4 m with no inclination from the vertical.
  • Page 10 SLIM-PIR-LUNA-PET SATEL...

  • Page 11: Configuring The Detector

    To configure the detector, you can use the buttons on the electronics module or the OPT-1 keyfob. The OPT-1 keyfob is available in SATEL's product range. Starting configuration mode Press the MODE button on the detector electronics module for 3 seconds or connect the SRVC terminal to common ground.

  • Page 12: Ending Configuration Mode

    SLIM-PIR-LUNA-PET SATEL Function Description of parameter to be programmed number LED indicators light color when indicating alarm / trouble You can program from 1 to 7 (1-7 – color). By default: 3 (blue). In addition to the presentation of value (flashing green), the LEDs show the color assigned to that value (for 2 seconds).

  • Page 13: Start-Up And Walk Test

    SATEL SLIM-PIR-LUNA-PET 8. Start-up and walk test The LED indicators should be enabled during the walk test (see “LED indicators”). 1. Power on the detector. The LEDs will flash alternately different colors for 30 seconds to indicate warm-up of the detector.
  • Page 14 SLIM-PIR-LUNA-PET SATEL Compliance with standards ....EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5 Environmental class according to EN 50130-5 ................II Operating temperature range................-10°C...+55°C Maximum humidity ......................93±3% Dimensions ....................62 x 137 x 42 mm Weight..........................142 g 5 year warranty from date of manufacture...
