5.3.2

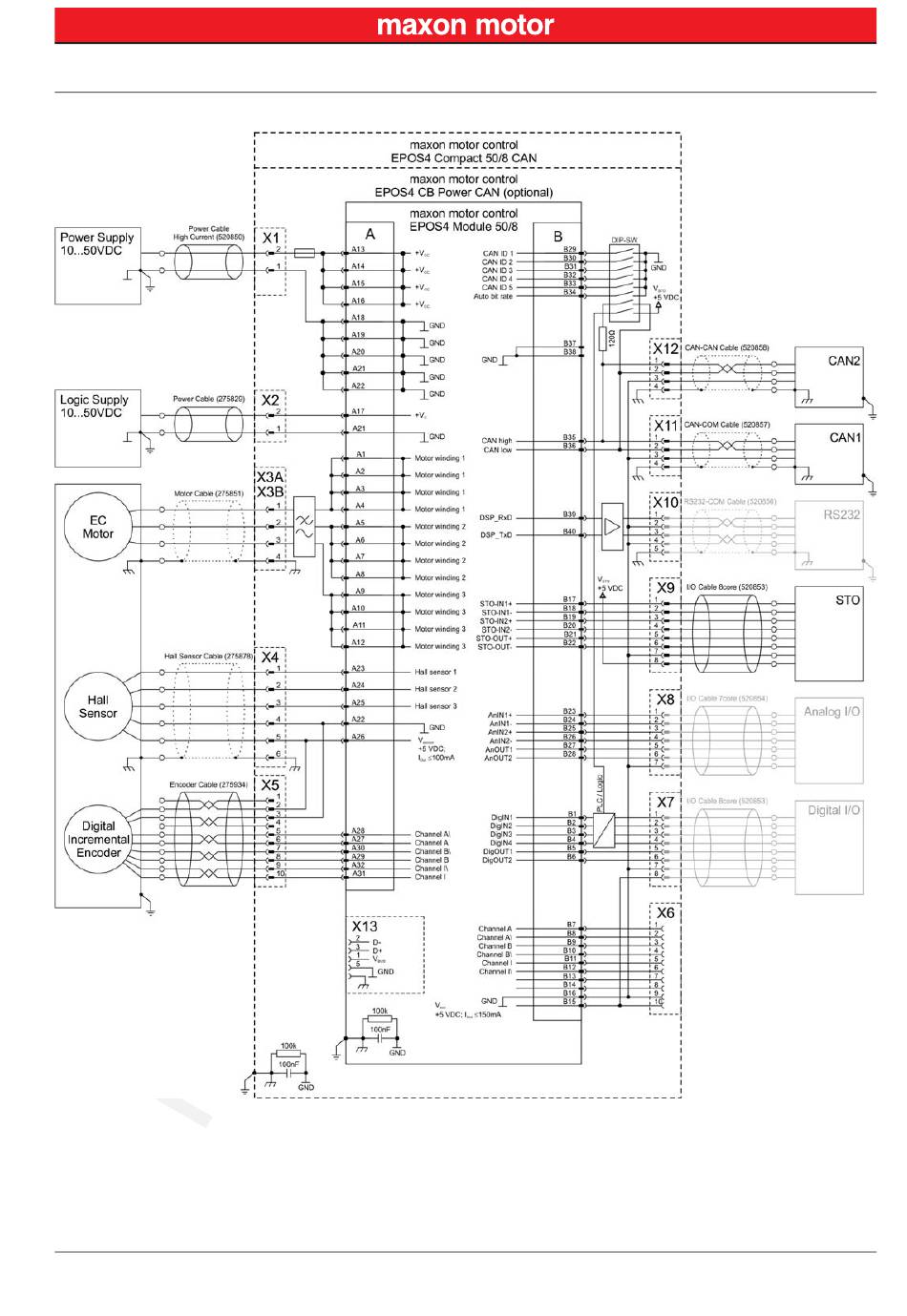

Figure 5-63
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 50/8 Hardware Reference
EC Motor – Hall Sensors & Digital Incremental Encoder
EC motor (Hall sensors & digital incremental encoder)
Document ID: rel5977
Edition: February 2016
© 2016 maxon motor. Subject to change without prior notice.
Wiring
EC Motors (BLDC, brushless)
5-89
