Ec Motor - Hall Sensors & Analog Incremental Encoder; Figure 5-64 Ec Motor (Hall Sensors & Analog Incremental Encoder) - maxon motor EPOS4 Module 50/8 Hardware Reference Manual

Positioning controller

Hide thumbs Also See for EPOS4 Module 50/8:

Table of Contents

Wiring

EC Motors (BLDC, brushless)

5.3.3

Figure 5-64

5-90

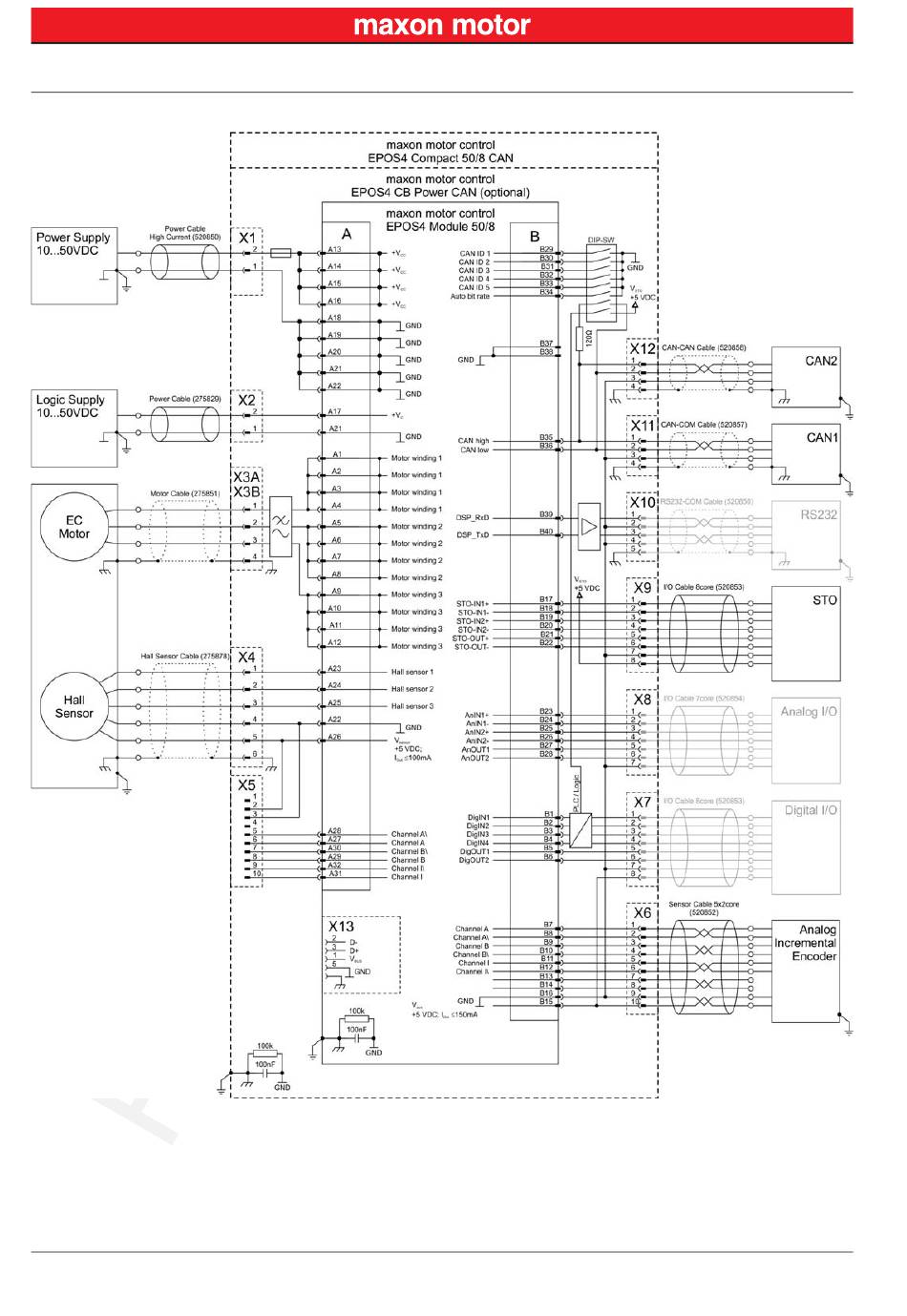

EC Motor – Hall Sensors & Analog Incremental Encoder*

EC motor (Hall sensors & analog incremental encoder)

Document ID: rel5977

Edition: February 2016

EPOS4 Positioning Controller

EPOS4 Module/Compact 50/8 Hardware Reference
