Operating Instructions

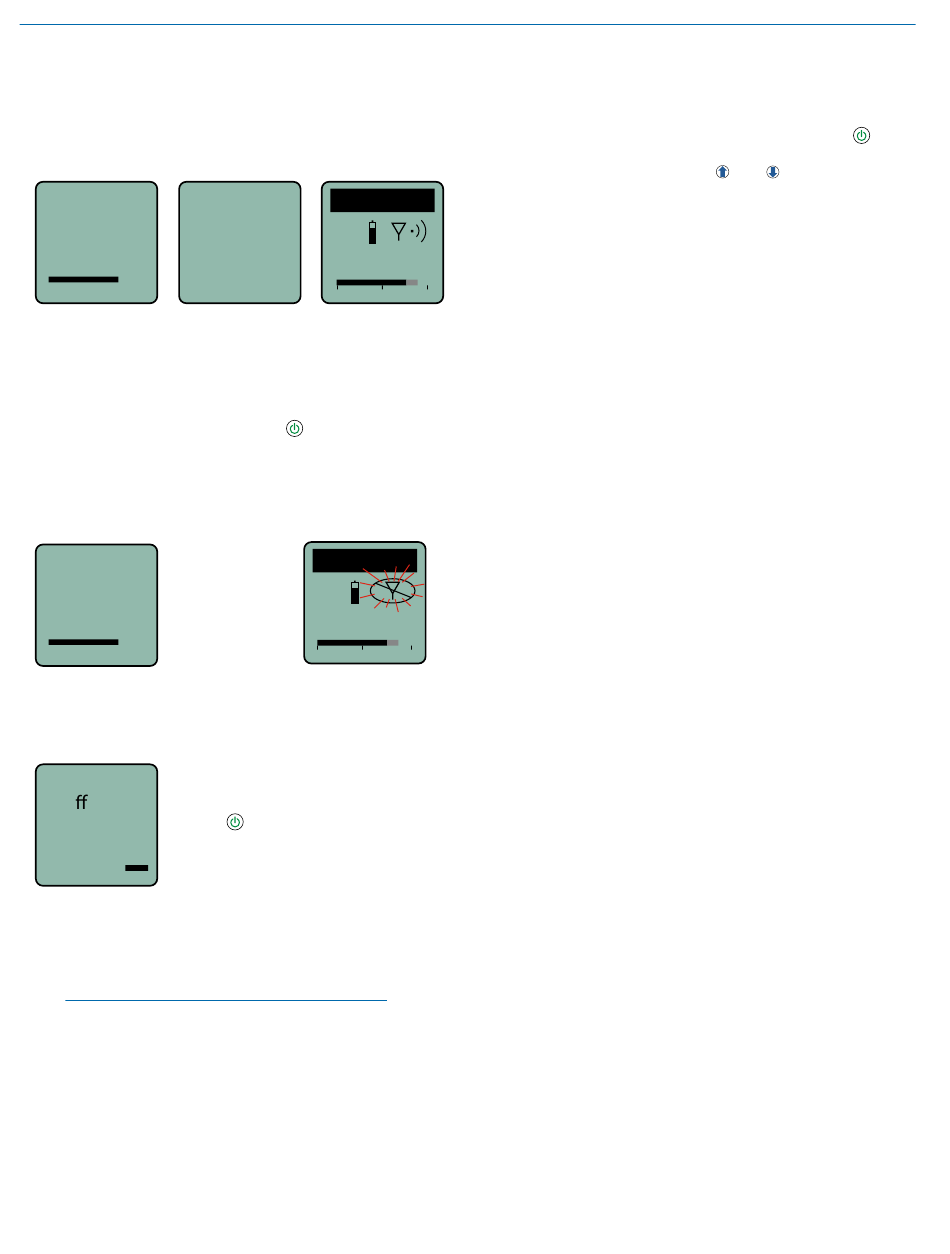

Powering On in Operating Mode

Press and hold the Power Button until a status bar on
the LCD is completed.
Hold DBu
for
Rf On
When you release the button, the unit will be operation-
al with the RF output turned on and the Main Window
displayed.

Powering On in Standby Mode

A brief press of the Power Button
before status bar has completed, will turn the unit on
with the RF output turned off. In this Standby Mode the
menus can be browsed to make settings and adjust-
ments without the risk of interfering with other wireless
systems nearby.
Release Power
Hold
Button before
for
the status bar
has completed
Rf On
to enter standby
After settings and adjustments are made, press the
power button again to turn the unit off.

Powering Off

From any screen, power can be
Powering
turned off by selecting Pwr Off in the
O . . .
power menu, holding the Power
Button
bar to complete, or with the program-
mable switch (if it is configured for
this function).
If the power button is released, or the top panel switch
is turned back on again before the status bar is com-
pleted, the unit will remain turned on and the LCD will
return to the same screen or menu that was displayed
previously.
NOTE: If the programmable switch is in the OFF
position, power can still be turned on with the
power button. If the programmable switch is then
turned on, a brief message will appear on the LCD.
6
DBu
V1.13 470.100
/1.05
-40 -20
, and releasing it
RF indicator blinks
DBu
470.100
mode
-40 -20
in and waiting for the status

Power Menu Options

Entering the Power Menu

With the unit turned on, press the power button
briefly from any menu or screen and a menu will appear
with several options. Use the
to highlight menu items. Then press MENU/SEL to
execute the item or enter a setup screen. The following
options are available:
• Resume - returns to the previous mode and screen
• Pwr Off - turns the unit off irrevocably
+0
• Rf On? - enters a screen to enable the operating or
standby modes
• AutoOn? - allows the unit to automatically turn
back on after a power failure or when fresh batter-
ies are installed (works in the operating mode only)
• Backlit - adjusts the duration of the LCD back light
to 5 seconds or 30 seconds, or to remain on
• About - displays model number and firmware
version
+0
once
and arrow buttons
