Fill in for your records:
Serial Number:
Purchase Date:
DCHT
Digital Transmitter
DCHT, DCHT/01
This guide is for all 1.1X
versions of DCHT Firmware.
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com
U.S. Patent 7,225,135
7 November 2019
Advertisement
Table of Contents
Related Manuals for Lectrosonics DCHT Series
Summary of Contents for Lectrosonics DCHT Series
- Page 1 U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down- load the most current version at: Purchase Date: www.lectrosonics.com...
-
Page 2: Features And Functions

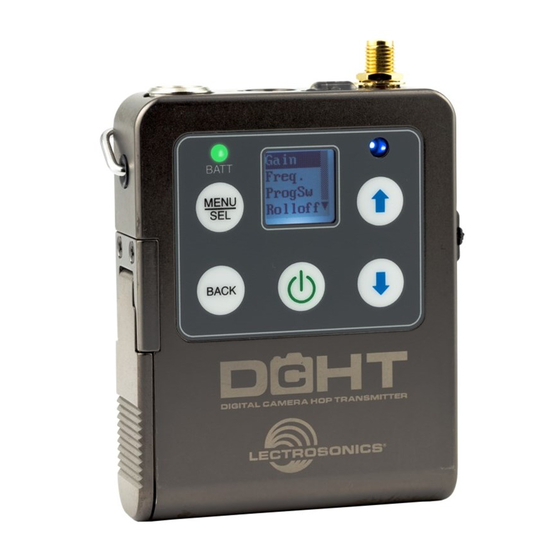

Features and Functions Status Ready LED Battery status LED Menu navigation Enter menu/ Select item Return to Power previous screen Bi-directional IR port Programmable function switch Antenna Audio Modulation port input indicators* jack USB Port LECTROSONICS, INC. -
Page 3: Battery Status Led Indicator
Ignore Remote particular battery brand and type, then using the BatTime function to NOTE: Remote control of determine remaining runtime. settings is enabled using a third party smart phone app named DCHTRemote, published by New Endian, LLC. www.lectrosonics.com... -
Page 4: Battery Installation
RF output turned on and the Main Window displayed. If the batteries are inserted incor- rectly, the door will close but the unit DCHT will not operate. Hold MUTE Rf On 470.100 LECTROSONICS, INC. -
Page 5: Screen Details
Entering the Main Menu Mute will blink DCHT function The LCD and keypad interface the word enabled and MUTE makes it easy to browse the menus MUTE when active 470.100 the audio is and make the selections for the <–MUTE–> muted www.lectrosonics.com... - Page 6 NameTx is pressed. BACK NameCh1 Press MENU/SEL to confirm and move cursor to next BACK NameCh2 position; 8 characters available Flex... SendTx Select option with arrow buttons: Flex... SendTx SendTx, SendCh1, SendCh2, SendCh1 BACK BACK SendCh2 SendM12 Sync LECTROSONICS, INC.
- Page 7 BACK Backlit Backlit Select option with arrow buttons 30 sec BACK 5 sec LEDs LED Off Select option with arrow buttons BACK Default Settings Default Select option with arrow buttons BACK About DCHT About About v1.10 BACK BACK /1.10 www.lectrosonics.com...
-
Page 8: Quick Start
LED level entering the transmitter. The glows green most or all of the LEDs will glow either red or green to time, and flicker red during the indicate modulation levels as shown loudest peaks. in the following table. LECTROSONICS, INC. -
Page 9: Selecting Input Type
Use the arrow buttons to NOTE: When the frequency select the input type. is highlighted, hold down the MENU/SEL button Input... InpCfg1 InpCfg2 to increase or decrease InType Line In Oth Lav frequency in higher InpCfg1 increments. InpCfg2 www.lectrosonics.com... -
Page 10: Selecting M2R Receiver Functions
Key. The key does not have to begin sync to be generated by the DCHT. Sync Sync Simply set a Lectrosonics encryption-capable receiver GetAll and the DCHT to Universal, and the encryption is in place. Sync to receive (get) all available... -
Page 11: Setup Menu
Key Type currently on the switch will continue to DCHT that can be deleted. Select operate whether or not Yes to wipe the current key and en- keypad changes are locked. able the DCHT to create a new key. www.lectrosonics.com... -
Page 12: Limited One-Year Warranty
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
