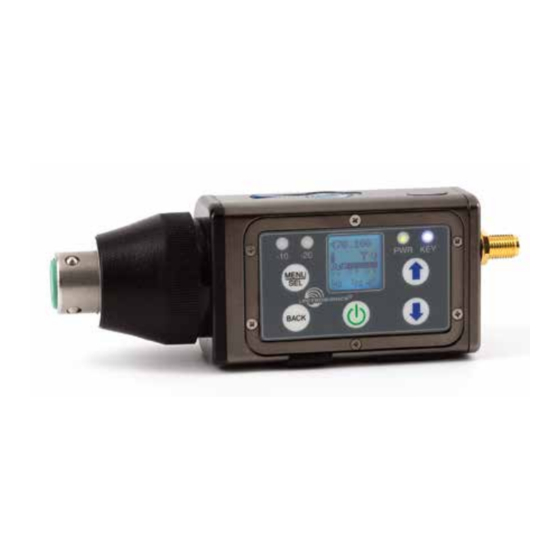

DPR-A
Digital Plug-On Transmitter
DPR-A, DPR-A /E01, DPR-A/E01-B1C1
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
WARNING: Moisture, including talent's
sweat, will damage the transmitter. Wrap
the DPR-A in our specially-designed silicone
sleeve (DPRCVR) or other protection to avoid
damage.
Rio Rancho, NM, USA
www.lectrosonics.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics DPR-A
Summary of Contents for Lectrosonics DPR-A
- Page 1 DPR-A Digital Plug-On Transmitter DPR-A, DPR-A /E01, DPR-A/E01-B1C1 WARNING: Moisture, including talent’s sweat, will damage the transmitter. Wrap the DPR-A in our specially-designed silicone sleeve (DPRCVR) or other protection to avoid damage. Fill in for your records: Serial Number: Rio Rancho, NM, USA Purchase Date: www.lectrosonics.com...
- Page 2 DPR-A, DPR-A/E01, DPR-A/E01-B1C1 Consumer Alert for US Users - FCC Order DA 10-92 Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts);...
-
Page 3: Table Of Contents
Digital Plug-On Transmitter Table of Contents General Technical Description .......... 4 TCode Menu ................. 15 Low Frequency Roll-Off ............ 4 TC Jam (jam timecode) ............. 15 Input Limiter ..............4 Setting Frame Rate ............15 Control Panel ..............4 Use Clock ................15 Alternate Recording Function .......... -
Page 4: General Technical Description
The micro SDHC card also offers easy firmware update capabilities without the need for a USB The DPR-A has an external SMA antenna jack, which cable or driver issues. accepts Lectrosonics steel flex wire AMM or AMJ series antennas. -
Page 5: Features
“no key” will blink on LCD. The Key LED will Antenna remain on if the encryption is set correctly and will turn off in Standby mode. The DPR-A has an external SMA antenna jack, which accepts Lectrosonics steel flex wire AMM or AMJ series Modulation LEDs antennas. -
Page 6: Battery Installation
DPR-A, DPR-A/E01, DPR-A/E01-B1C1 Battery Installation Attaching/Removing a Microphone The battery compartment door is made of machined alu- minum and is hinged to the housing to prevent it being damaged or lost. The spring loaded coupler under the XLR jack main- tains a secure fit to the microphone jack with continu- The transmitter is powered by two AA batteries. -
Page 7: Operating Instructions
Digital Plug-On Transmitter Transmitter Operating Instructions Operating Instructions • Install battery(s) Modulation • Turn power on in the Standby mode (see previ- UP Arrow PWR LED KEY LED LEDs ous section) • Connect microphone and place it in the position where it will be used. -
Page 8: Recorder Operating Instructions
DPR-A, DPR-A/E01, DPR-A/E01-B1C1 Recorder Operating TC Jam port Instructions • Install battery(s) • Insert microSDHC memory card • Turn power on • Format memory card • Connect microphone and place it in the position where it will be used. microSDHC memory card •... -
Page 9: Ixml Header Support
Digital Plug-On Transmitter Do not open the files on the SD card with any third later generation video systems and cameras for image party program such as Wave Agent or Audacity and applications (video and high resolution, high speed permit a save. In Wave Agent, do not IMPORT - you photography). -
Page 10: Dpr Menu
DPR-A, DPR-A/E01, DPR-A/E01-B1C1 DPR-A Menu Gain Use arrow keys to Input select input gain BACK Rolloff Use arrow keys to select 70 Hz Use arrow keys to Phase Normal select audio output Invert polarity Phantom Use arrow keys to select... - Page 11 Digital Plug-On Transmitter TC Jam Plug in time code TCode source and sync BACK JAM NOW Use arrow keys to select Fr.Rate Press to set MENU frame rate of 30, 29.97, 25, function 24, 23.976, 30DF, or 29.97DF LOADING Use Clk TIMECODE Plug in clock FROM...
-
Page 12: Setup Screen Details
1) With fresh batteries in the transmitter, power the unit on in the standby mode (see previous section To aid in finding clear frequencies, several Lectrosonics Turning Power ON and OFF). receivers offer a SmartTune feature that scans the tun- 2) Navigate to the Gain setup screen. -
Page 13: Selecting The Low Frequency Roll-Off
Digital Plug-On Transmitter panel. The voltages are: Selecting the Low Frequency Roll-off • 5 Volts for lavaliere microphones, It is possible that the low frequency roll-off point could • 15 Volts for some professional mics requiring high affect the gain setting, so it’s generally good practice to current and for many common stage mics that will make this adjustment before adjusting the input gain. -
Page 14: Xmit Menu
Begins recording or stops recording. (See Recorder The tuning groups feature allows groups of frequencies Operating Instructions.) to be created, stored and used to constrain tuning. The groups are created using Lectrosonics DSQD receiver or via Wireless Designer, then the groups are shared SDCard... SDCard... -
Page 15: Load Tuning Group
A timing reference cryption option available. All encryption-capable is logged into the BWF metadata. Lectrosonics transmitters and receivers contain the Universal Key. The key does not have to be Setting Frame Rate generated by a receiver. -
Page 16: Keytype
DPR-A, DPR-A/E01, DPR-A/E01-B1C1 transferred to a transmitter. The receiver tracks The DPR can be configured to respond to “dweedle the number of keys generated and the number of tone” signals from the LectroRM smart phone app or to times each key is transferred. -
Page 17: Locking/Unlocking Settings
Digital Plug-On Transmitter About Locking/Unlocking Settings Changes to the settings can be locked to prevent inad- Displays the DPR model number, firmware versions vertent changes being made. and serial number. Setup... Freq. Locked? BatTime V 1.04/ 494.500 Clock 1.01 Locked? A small padlock symbol will appear on adjustment screens when changes have been locked. -
Page 18: Lectrorm
The user interface involves selecting the audio se- Please be aware this app is not a quence related to the desired change. Each version has Lectrosonics product. It is privately owned an interface for selecting the desired setting and the and operated by New Endian LLC, desired option for that setting. -
Page 19: Supplied & Optional Accessories
(2) Alkaline batteries. Brand may vary. allowing normal operation. The transmitter should be set to the 15V position for best operation and minimum battery drain. DPRACVR/DPRACVR-BLK Protective silicone covers for DPR-A. Available in either white or black. Rio Rancho, NM... -
Page 20: Specifications And Features
• SANKEN CS-1: 8h 0m not ensure compliance with FCC RF exposure guidelines. Weight: 7.8 ozs. (221 grams) Contact Lectrosonics if you have any questions or need Dimensions: 4.21” L [excluding antenna: DPR-A] x more information about RF exposure using this product.. -
Page 21: Firmware Update
Digital Plug-On Transmitter Firmware Update Firmware updates are made using a microSDHC memory 7) If you re-insert the update card and turn the card. Download and copy the following firmware update power back on for normal use, the LCD will files to a drive on your computer. -
Page 22: Recovery Process
DPR-A, DPR-A/E01, DPR-A/E01-B1C1 Recovery Process In the event of a battery failure while the unit is recording, a recovery process is available to restore the recording in proper format. When a new battery is installed and the unit is turned back on, the recorder will detect the miss- ing data and prompt you to run the recovery process. -
Page 23: Service And Repair
LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping. - Page 24 This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
