Power Supply Board Output Voltage Settings:

Fig. 1
OFF - 24V
ON - 12V

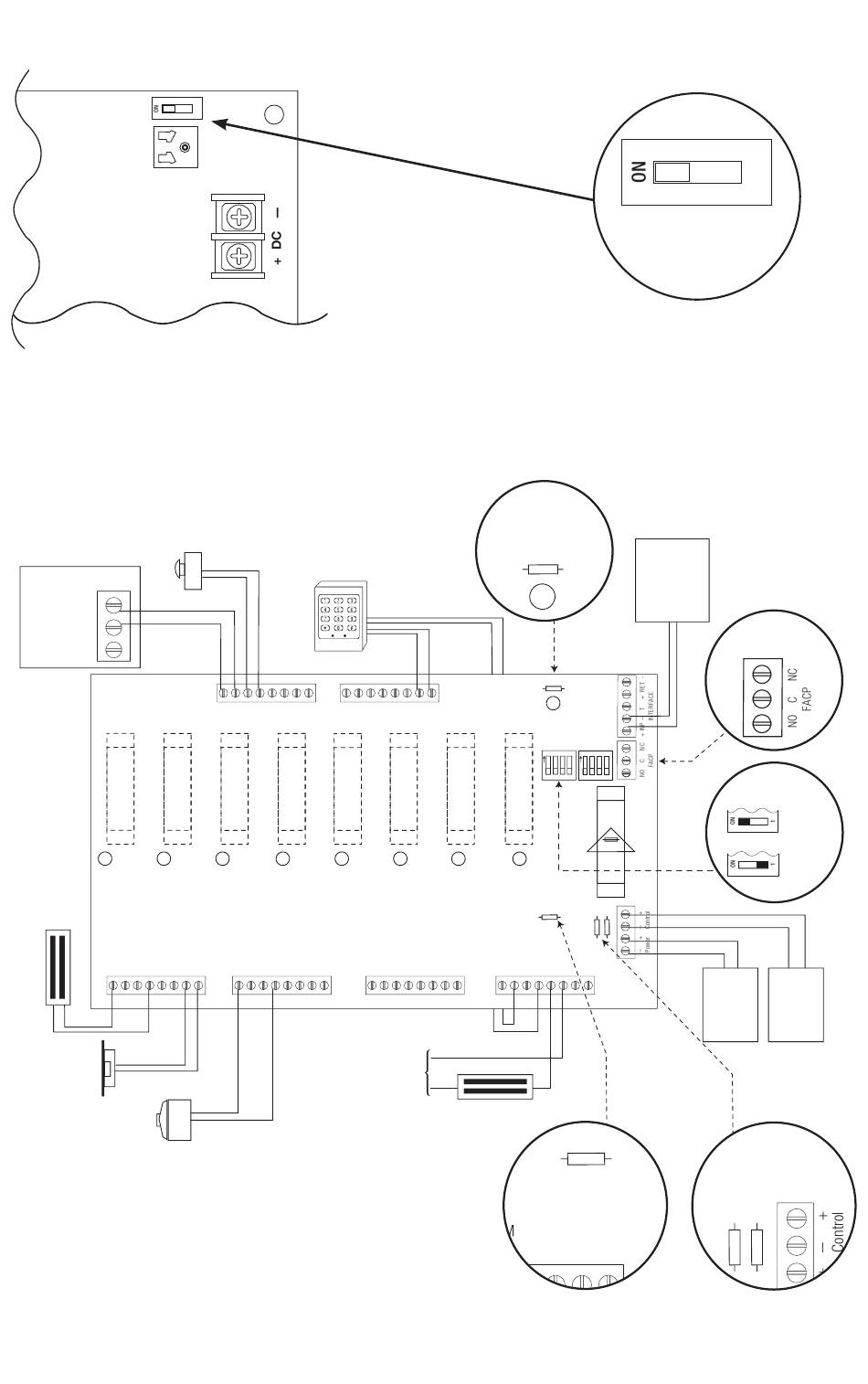

Access Power Controller Typical Application Diagram
Fig. 2
Access Control Panel
C
Output
NO
Relay
NC
F1
LED1
Mag.
Lock
NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2
Electric
Strike
Electromagnetic
Door Holders
Maximal11FV / Maximal33FV / Maximal55FV / Maximal77FV / Maximal75FV Access Power Controllers (Fused)
SW1
(for each ACM8):
Normally Open (N.O.)
Door Releasing
Device
Keypad
IN GND IN GND IN GND IN GND
1 2 3 4
F2 F3 F4
LED2 LED3 LED4
NC C NO COM NC C NO COM
OUTPUT 3 OUTPUT 4
UL Listed
Power Supply
For this application
corresponding
fuse F8 must be
removed.
Fig. 2a
Intact = Dry Input
Cut = Wet Input
IN GND IN GND IN GND IN GND
5 6 7 8
F5 F6 F7
LED5 LED6 LED7
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 5 OUTPUT 6 OUTPUT 7
MAG. LOCK
Fig. 1a
OFF - 24V
ON - 12V
FACP
FACP
(Fire Alarm
TRG
Control
Panel)
FACP
TRG
F8
O N O N
1 2 3 4 1 2 3 4
MAIN
10A 250V
LED8
J3 J2 J1
NC C NO COM
OUTPUT 8
Fig. 2d
J3
Intact = DC Input
Cut = AC Input
NC C NO COM
OUTPUT 8
Fig. 2b
FACP Dry
Form "C" Output
SW1-SW8
FACP Interface
Disabled
Enabled
AC or DC AC or DC
Power Power
Supply Supply
(req'd.) (optional)
Fig. 2c
Intact = One P/S Input
Cut = Dual P/S Input
J2 J1
