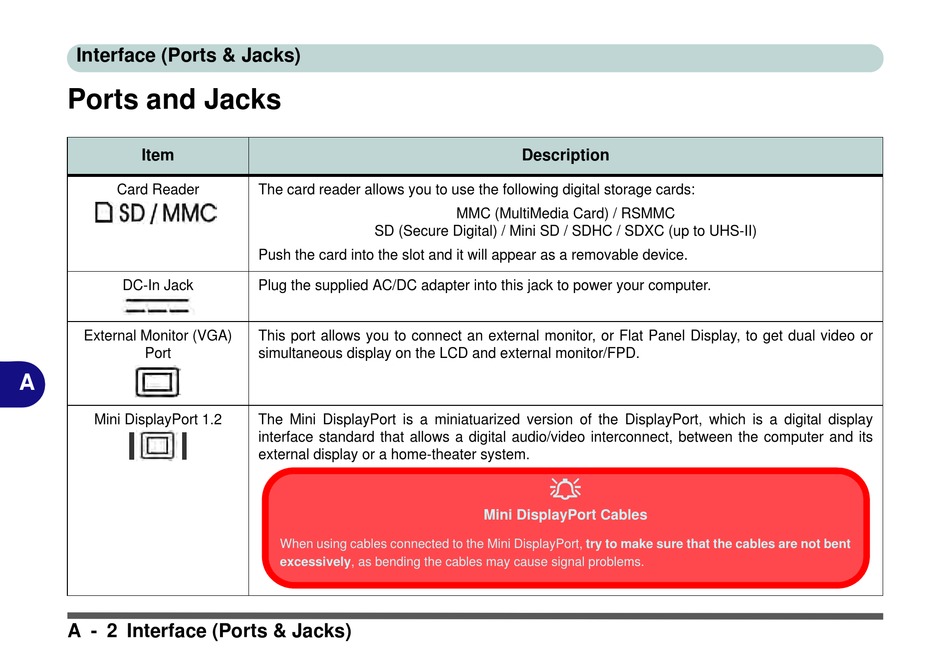

Interface (Ports & Jacks)
Ports and Jacks
Item
Card Reader
DC-In Jack
External Monitor (VGA)
Port
A
Mini DisplayPort 1.2
A - 2 Interface (Ports & Jacks)
The card reader allows you to use the following digital storage cards:
SD (Secure Digital) / Mini SD / SDHC / SDXC (up to UHS-II)
Push the card into the slot and it will appear as a removable device.
Plug the supplied AC/DC adapter into this jack to power your computer.
This port allows you to connect an external monitor, or Flat Panel Display, to get dual video or
simultaneous display on the LCD and external monitor/FPD.
The Mini DisplayPort is a miniatuarized version of the DisplayPort, which is a digital display
interface standard that allows a digital audio/video interconnect, between the computer and its
external display or a home-theater system.
When using cables connected to the Mini DisplayPort, try to make sure that the cables are not bent
excessively, as bending the cables may cause signal problems.
Description
MMC (MultiMedia Card) / RSMMC
Mini DisplayPort Cables
