Interface (Ports & Jacks)

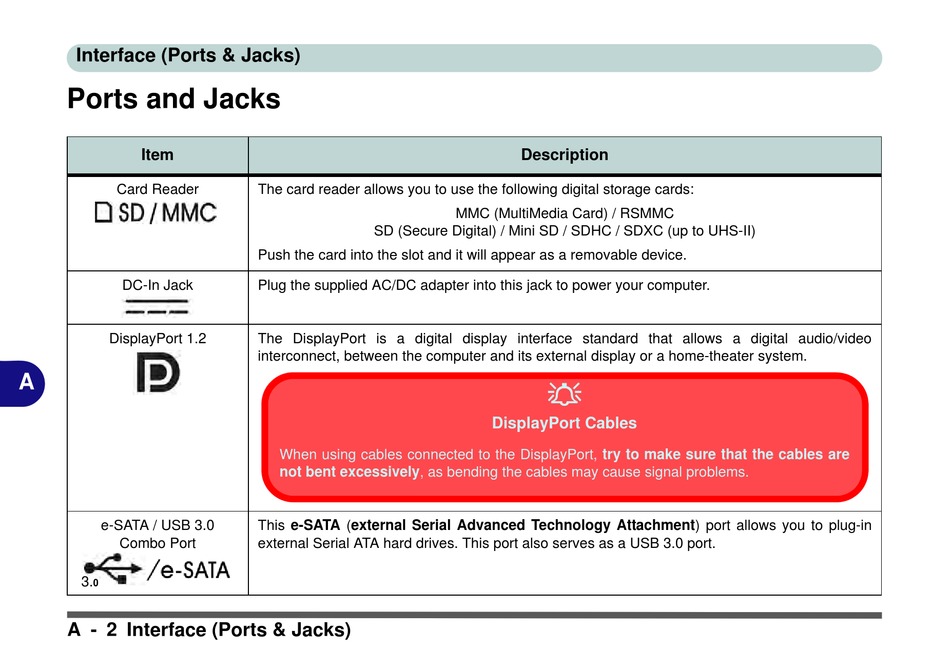

Ports and Jacks
Item
Card Reader
DC-In Jack
DisplayPort 1.2
A
e-SATA / USB 3.0
Combo Port
3.
0
A - 2 Interface (Ports & Jacks)
The card reader allows you to use the following digital storage cards:
SD (Secure Digital) / Mini SD / SDHC / SDXC (up to UHS-II)
Push the card into the slot and it will appear as a removable device.
Plug the supplied AC/DC adapter into this jack to power your computer.
The DisplayPort is a digital display interface standard that allows a digital audio/video
interconnect, between the computer and its external display or a home-theater system.
When using cables connected to the DisplayPort, try to make sure that the cables are
not bent excessively, as bending the cables may cause signal problems.
This e-SATA (external Serial Advanced Technology Attachment) port allows you to plug-in
external Serial ATA hard drives. This port also serves as a USB 3.0 port.
Description
MMC (MultiMedia Card) / RSMMC
DisplayPort Cables
