Transition Networks SRS2F3111-100 User Manual

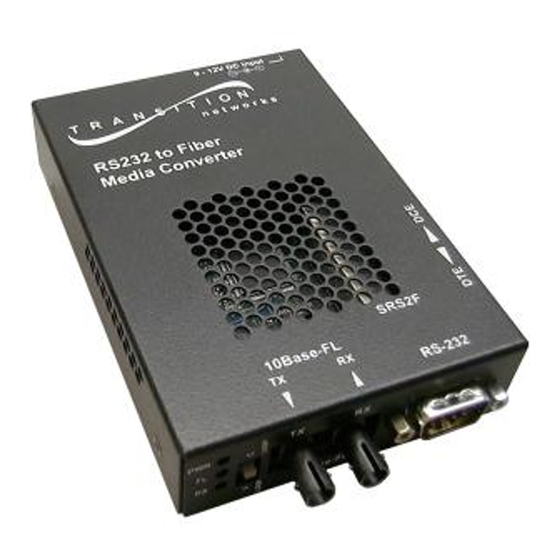

Stand-alone media converter rs-232 to fiber
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Enlarged version

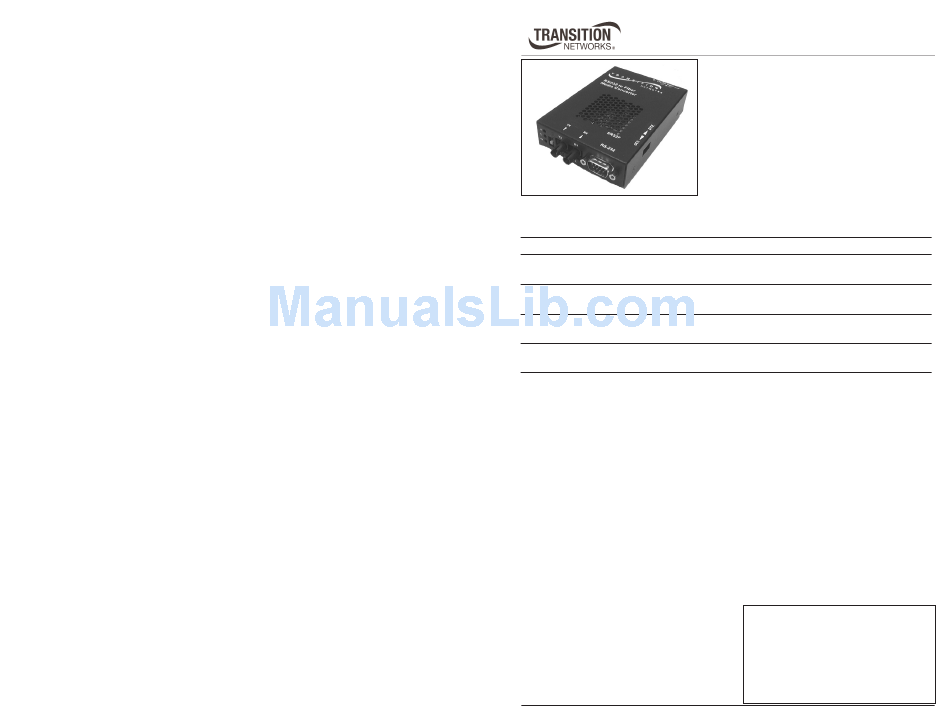

The CRS2F31xx-100 is designed to be installed in pairs where one is the local
media converter and the other is the remote.
Part Number
Port One - Copper
SRS2F3111-100
RS-232
15 m (50 ft)*
SRS2F3113-100
RS-232
15 m (50 ft)*
SRS2F3114-100
RS-232
15 m (50 ft)*
SRS2F3115-100
RS-232
15 m (50 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
The chassis version of the media converter is CRS2F31xx-100. For more
information,
see
the
CRS2F31xx-100
www.transition.com.
User's Guide
SRS2F31xx-100
Stand-Alone Media Converter
RS-232 to Fiber
Transition Networks SRS2F31xx-100 series
media converters connect copper RS-232
cable to fiber-optic cable at asynchronous
data rates up to 115 kB/s.
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
user's
guide
on-line
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
at:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRS2F3111-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SRS2F3111-100

Summary of Contents for Transition Networks SRS2F3111-100

  • Page 1: Table Of Contents

    The CRS2F31xx-100 is designed to be installed in pairs where one is the local media converter and the other is the remote. Part Number Port One - Copper Port Two - Fiber-Optic SRS2F3111-100 RS-232 ST, 1300 nm multimode 15 m (50 ft)* 2 km (1.2 miles)*...

  • Page 2: Installation

    SRS2F31xx-100 Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the switches and when setting the jumper. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the DTE/DCE Switch The DTE/DCE switch is located on the side of the media converter.

  • Page 3: Install The Copper Cable

    SRS2F31xx-100 Installation -- Continued Set the Hardware/Software Jumper The jumper is located on the circuit board inside the media converter housing. Hardware The media converter mode is determined by the switch settings (see pages 2-3). Software The media converter mode is determined by most-recently saved, microprocessor settings.

  • Page 4: Operation

    SRS2F31xx-100. For example, a local CRS2F3111-100 converter (that is installed in a managed Transition Networks PointSystem™ chassis) is connected, via fiber, to a remote SRS2F3111-100 converter. The SNMP section (below) lists the commands that can be used to monitor and manage both the local and remote media converter.

  • Page 5: Technical Specifications

    SRS2F31xx-100 Technical Specifications For use with Transition Networks Model SRS2F31xx-100 or equivalent Data Rate 115 Kb/s (asynchronous) Dimensions 3.25" x 4.7" x 1.0" (83mm x 119mm x 25mm) Weight 10 oz. (283 g) (approximately) Power Consumption 5 Watts Power Supply 12VDC, 0.8 Amp (North.

  • Page 6: Contact Us

    -- Click the “Transition Now” link for a live Web chat. 1-800-260-1312 00-1-952-941-7600 952-941-7600 800-526-9267 952-941-2322 Declaration of Conformity Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. SRS2F31xx-100 Series Media Converter SRS2F3111-100, SRS2F3113-100, SRS2F3114-100, SRS2F3115-100 EMC Directive 89/336/EEC Sept, 2007_____ Date...

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This manual is also suitable for:

Srs2f3115-100Srs2f3113-100Srs2f3114-100
