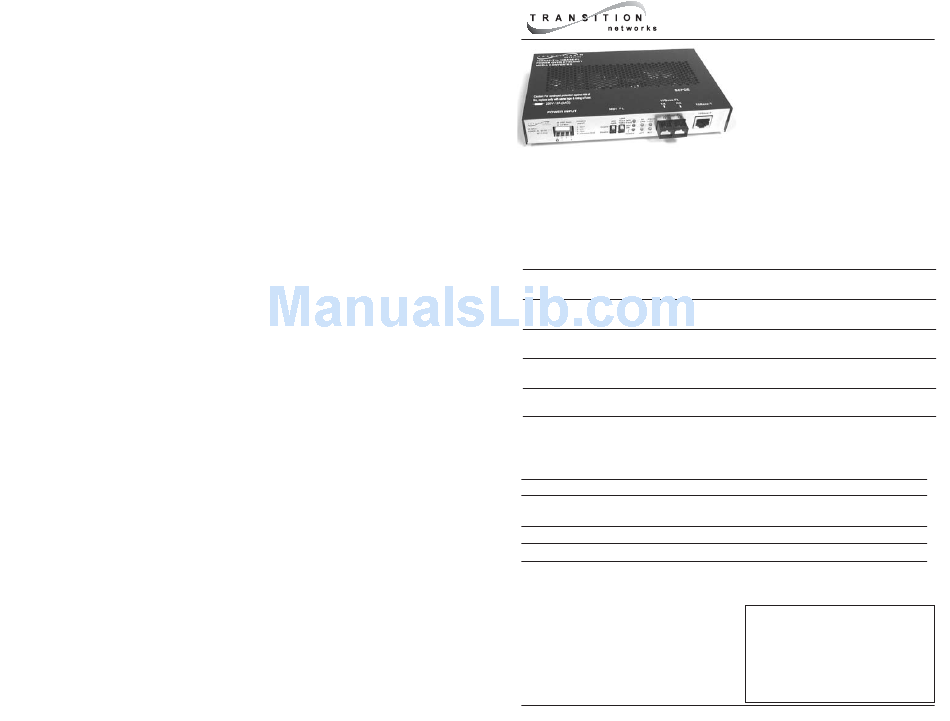

The SEPOE10xx-150 Power Over Ethernet (POE) is a 10Base-T to 10Base-FL media
converter capable of providing power to Data Terminal Equipment (DTE) Power
Devices (PD) via the Media Dependent Interface (MDI) twisted pair cable. The
SEPOE10xx-150 emulates Power Sourcing Equipment (PSE) and is compatible with
Powered Devices (PD) that comply with the IEEE802.3af™ standard. The
SEPOE10xx-150 also includes Transition Networks' propriatory PD signature
sensing and power monitoring features.
Part Number
Port One - Copper
10Base-T
SEPOE1011-150 RJ-45
100 m (328 ft.)*
SEPOE1012-150 RJ-45
100 m (328 ft.)*
SEPOE1013-150 RJ-45
100 m (328 ft.)*
SEPOE1014-150 RJ-45
100 m (328 ft.)*
* Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Optional Accessories (sold separately)
Part Number Description
WMBL
Optional Wall Mount Brackets
Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)
WMBD
Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)
WMBD-F
Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)
SEPOE10xx-150
User's Guide
• Stand-Alone Media Converter
• Power Over Ethernet
• 10Base-T to 10Base-FL
Port Two - Duplex Fiber-Optic
10Base-FL
ST, 850 nm multimode
2 km (1.2 miles)*
ST, 1310 nm singlemode
20 km (12.4 miles)*
SC, 850 nm multimode
2 km (1.2 miles)*
SC, 1310 nm singlemode
20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Maintenance . . . . . . . . . . . . . . . .5
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .8
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEPOE1011-150 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SEPOE1011-150

Summary of Contents for Transition Networks SEPOE1011-150

  • Page 1 Part Number Port One - Copper Port Two - Duplex Fiber-Optic 10Base-T 10Base-FL SEPOE1011-150 RJ-45 ST, 850 nm multimode 100 m (328 ft.)* 2 km (1.2 miles)* SEPOE1012-150 RJ-45 ST, 1310 nm singlemode 100 m (328 ft.)* 20 km (12.4 miles)*...
  • Page 2 SEPOE10xx-150 Installation and Service ALL INSTALLATION AND SERVICE MUST BE PERFORMED BY QUALIFIED SERVICE PERSONNEL. Read and follow all warning notices and instructions marked on the product or included in the manual CAUTION: Ensure that the power source is NOT powered when connecting it to the SEPOE10xx-150 series media converter.
  • Page 3 SEPOE10xx-150 Installation -- Continued Supplying Power to the SEPOE10xx-150 The SEPOE10xx-150 features under voltage lockout, which disables operation and eliminates excessive power draw from the 48 volt external power source if the source falls below approximately 44 VDC. CAUTION: The power source MUST BE POWERED OFF when connecting it to the SEPOE10xx-150.
  • Page 4 SEPOE10xx-150 Operation LED Indicators After installation, the media converter should function without operator intervention. Use the status LEDs to monitor media converter operation in the network. 10Base-FL MDI Fault Fiber Link Link POWER MDI Fault On (for 5-10 seconds) = the POE sources exceed approximately 0.4 A* of current on the MDI interface.

  • Page 5: Cable Specifications

    Bit Error Rate: Singlemode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SEPOE1011-150 850 mn multimode Fiber-optic Transmitter Power: min: -20.0 dBm Fiber-optic Receiver Sensitivity: min: -32.5 dBm Link Budget: 12.5 dB...
  • Page 6 6475 City West Parkway, Minneapolis MN 55344 USA Model: SEPOE10xx-150 Series Media Converters Part Number(s): SEPOE1011-150, SEPOE1012-150, SEPOE1013-150, SEPOE1014-150 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SEPOE10xx-150 to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information EN55024 CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone network. Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG- Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer...

This manual is also suitable for:

Sepoe1014-150Sepoe1012-150Sepoe1013-150
