SYSTEM OVERVIEW
2.1

Construction

D
15
14

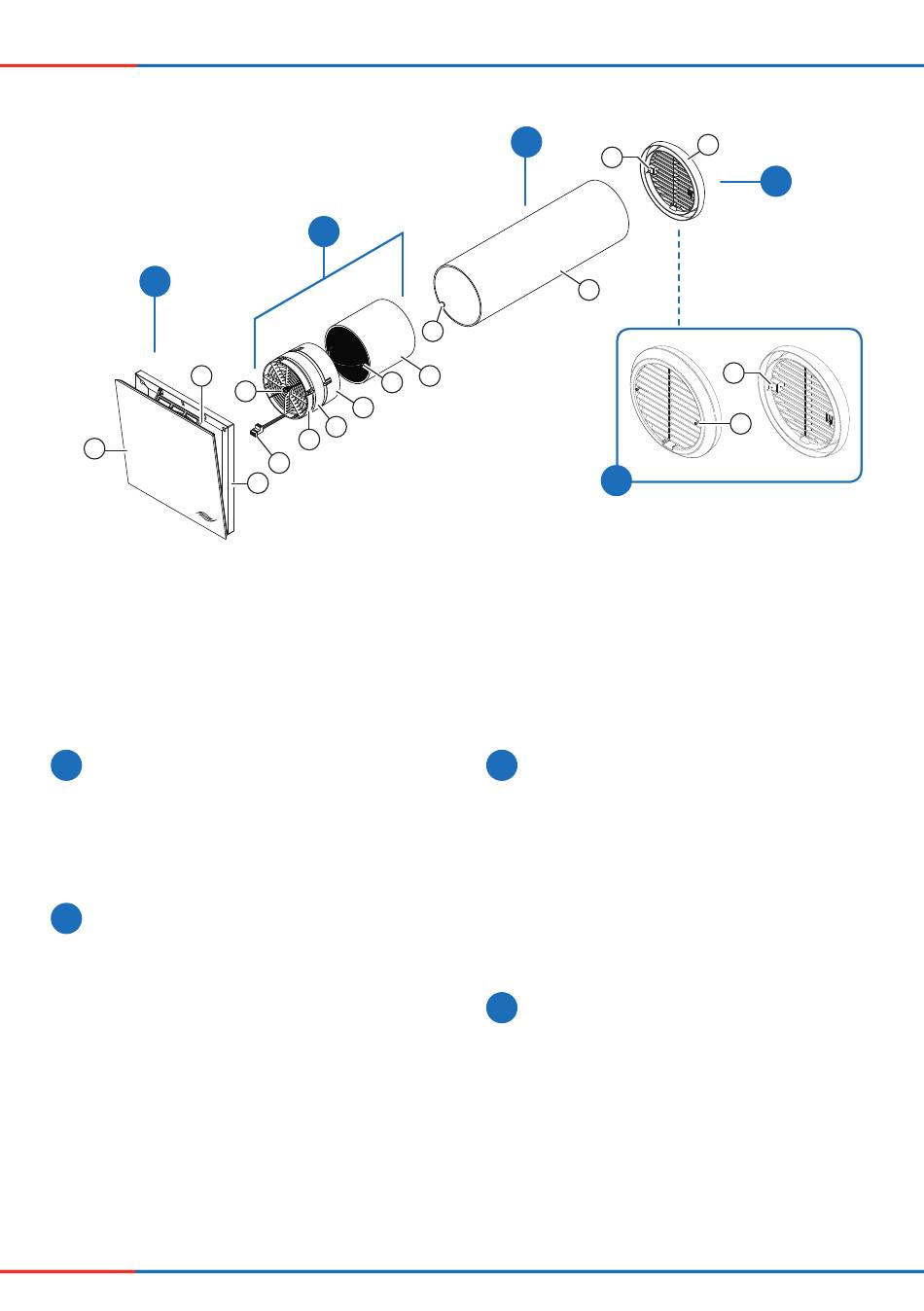

Figure 1: Overview of iV-Light ventilation unit
Components
A
Exterior closure:
Light protective grille
1 Protective grille
2 Fastening claws (2 x, pre-assembled)
3 Fastening srews (2 x, pre-assembled)
B
Wall sleeve
4 Wall sleeve R-D160
5 Recess for fan BUS
(interior wall side)
8
iV-Light ventilation system / sMove controller
C
7
11
8
9
10
12
13
B
4
5
6
C
Thermal accumulator insert
(thermal accumulator and inVENTron)
6 Thermal accumulator with insulation
7 Thermal accumulator handle
8 Standard guiding vane (broad)
9 Xenion reversible fan
10 Slim guiding vane (narrow)
11 Guiding vane knob
12 Plug connection
D
Inner cover Light V-220x220
13 Inner cover base plate
(incl. dust filter G4)
14 Inner cover panel
15 Connecting element
• Operating instructions
1
2
A
2
3
A
