OPERATING THE SMOVE CONTROLLERS

4 Operating the sMove controllers
Operating mode, output level and further functions, i. e. pause function, are adjusted via one of
the inVENTer system controllers
They are operated by touching the capacitive button and the slide control on the control panel.
With its integrated indicator lights, the control panel also serves as a display surface.
Flat version: When in pause mode the controller switches off the ventilation unit for one hour.
Subsequently, the ventilation unit continues to work in heat recovery mode at the lowest output
level. The use of the flat version is recommended in areas where it is desirable not to turn off
the ventilation unit in order to maintain humidity levels (Switch-off lock).
Standard version: In addition to pause mode, the standard version provides the option to
switch off the ventilation unit completely.
4.1

Design and features

Control panel
The control panel is located on the front of the control unit and also serves as a display surface.
It is composed of capacitive buttons and various indicator lights. It is operated by touching the
various buttons (marked in grey in figure 2).
8
7

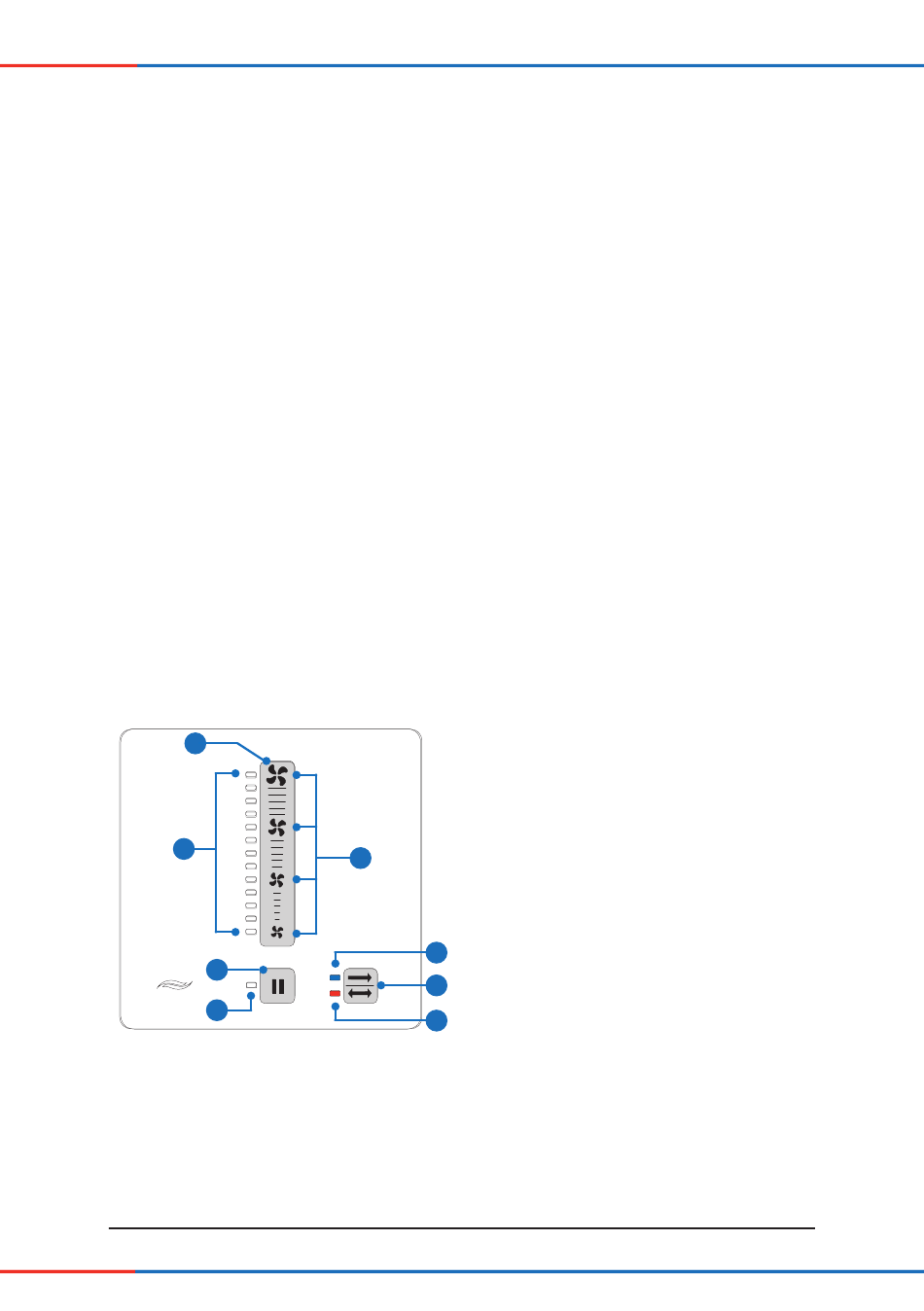

Abbildung 2: Operating and display elements on the control panel
Slide control:
Briefly pressing the fan symbol allows you to select one of the four specific output levels.
Touching the slide control for approx. one second lets you continuously adjust the output level by
moving it. The position of the illuminated display on the left side of the slide control indicates the
currently set output level.
The operating instructions for the MZ-Home controller are not part of this documentation. They are available separately.
1)
12
iV-Light ventilation system / sMove controller
.
1)
1
6
5
1 Marker for output levels 1 – 4
2 Continuous ventilation mode
(blue) indicator light
3 Operating mode button
4 Heat recovery mode
(orange) indicator light
5 Pause/Off indicator light
6 Pause/Off button
7 Output level indicator lights
8 Slide control
2
3
4
• Operating instructions
