MultiGene Thermal Cycler
Name
Function
Power
Cable
Power cable socket and fuse.
Connector
Power On/Off switch
Power Switch
Control the brightness of LCD panel. Please use Philip-head screw
Brightness
driver to adjust it.
Adjustment
Potentiometer
For run summary download to computer
USB Port
For run summary download to computer
RS-232 Port
Air Vents(Rear) For air output
Product Label
Indicate the model name, serial number, power specification, and
other important information

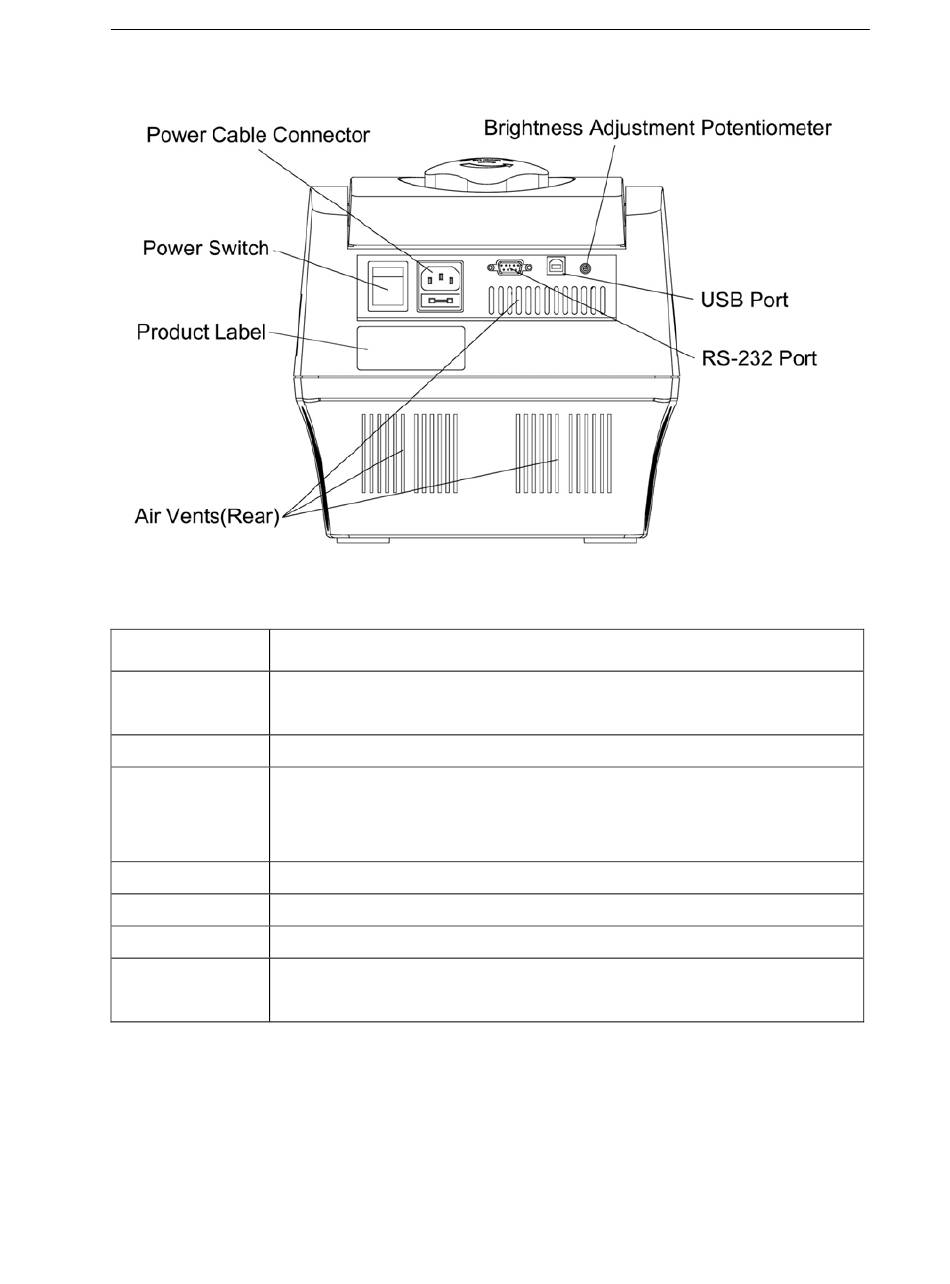

Figure 3. Rear View
