Labnet MultiGene OptiMax TC9610 Operation Manual page 8

Name
Lid
Lid Knob
Sample Block
Key-Pad
Control Panel
Display
Air Vents (Front)
Air Vents (Left and
Right Sides)
Air Vents (Bottom)

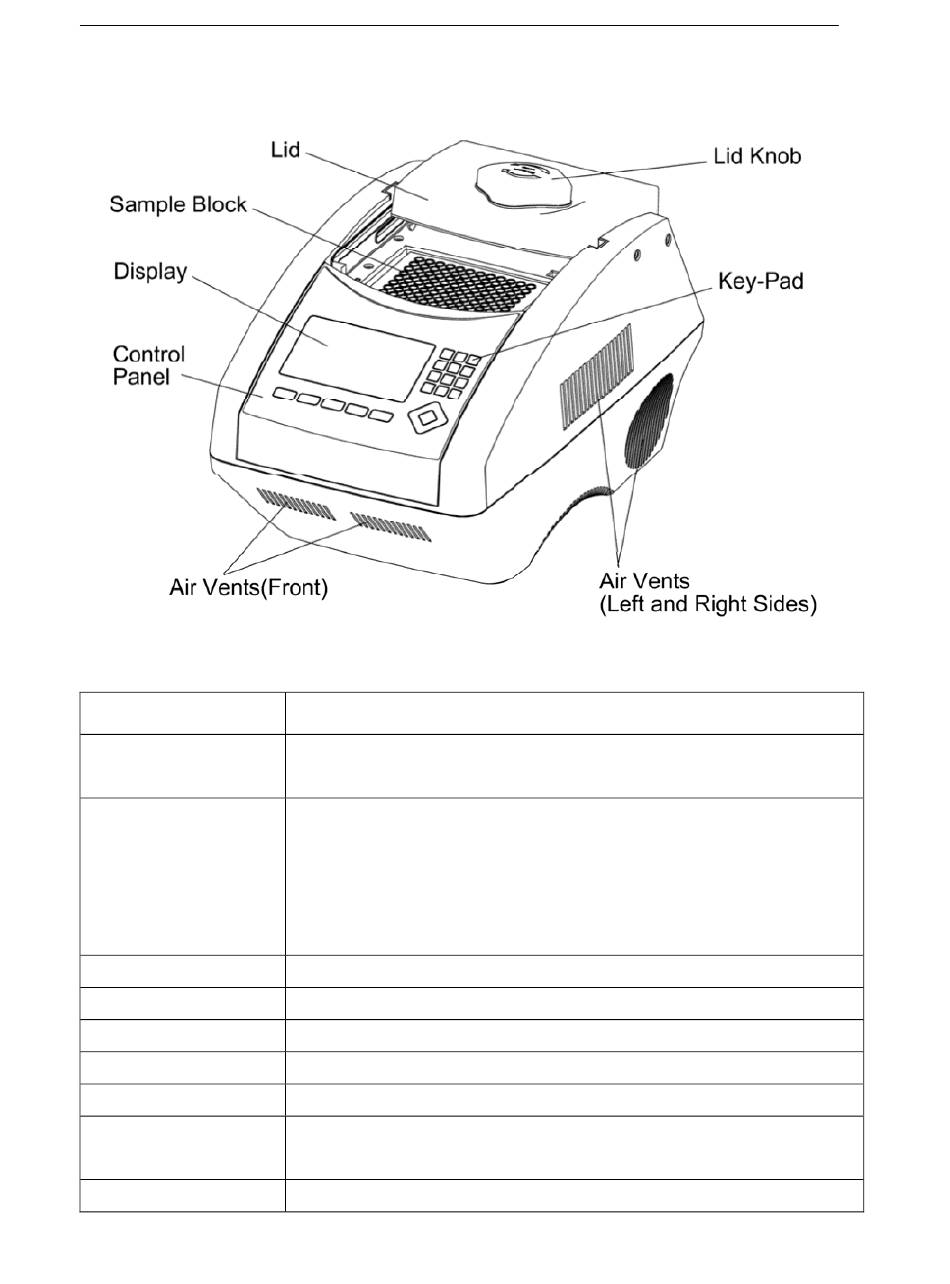

Figure 2. Front View
Function
The lid with heating pad is designed to protect against evaporation
resulting from heating of the reaction tube and reaction plate.
Rotate Lid Knob in clockwise will lower the heating plate to place
pressure on the cap of tubes. This forces the tubes to sit firmly in the
block for better contact. Rotate Lid Knob in counter-clockwise
direction until the Lid pops up. Only after the Lid pops, can users
slide the Lid to the rear.
Section of the unit in which sample tubes and plates are placed.
Used to enter the various Protocols and settings.
which includes Display and Key-Pad
Displays current status of the various system features and functions.
for air output
for air output
for air intake
