Altronix eFlow6N Series Installation Manual page 10

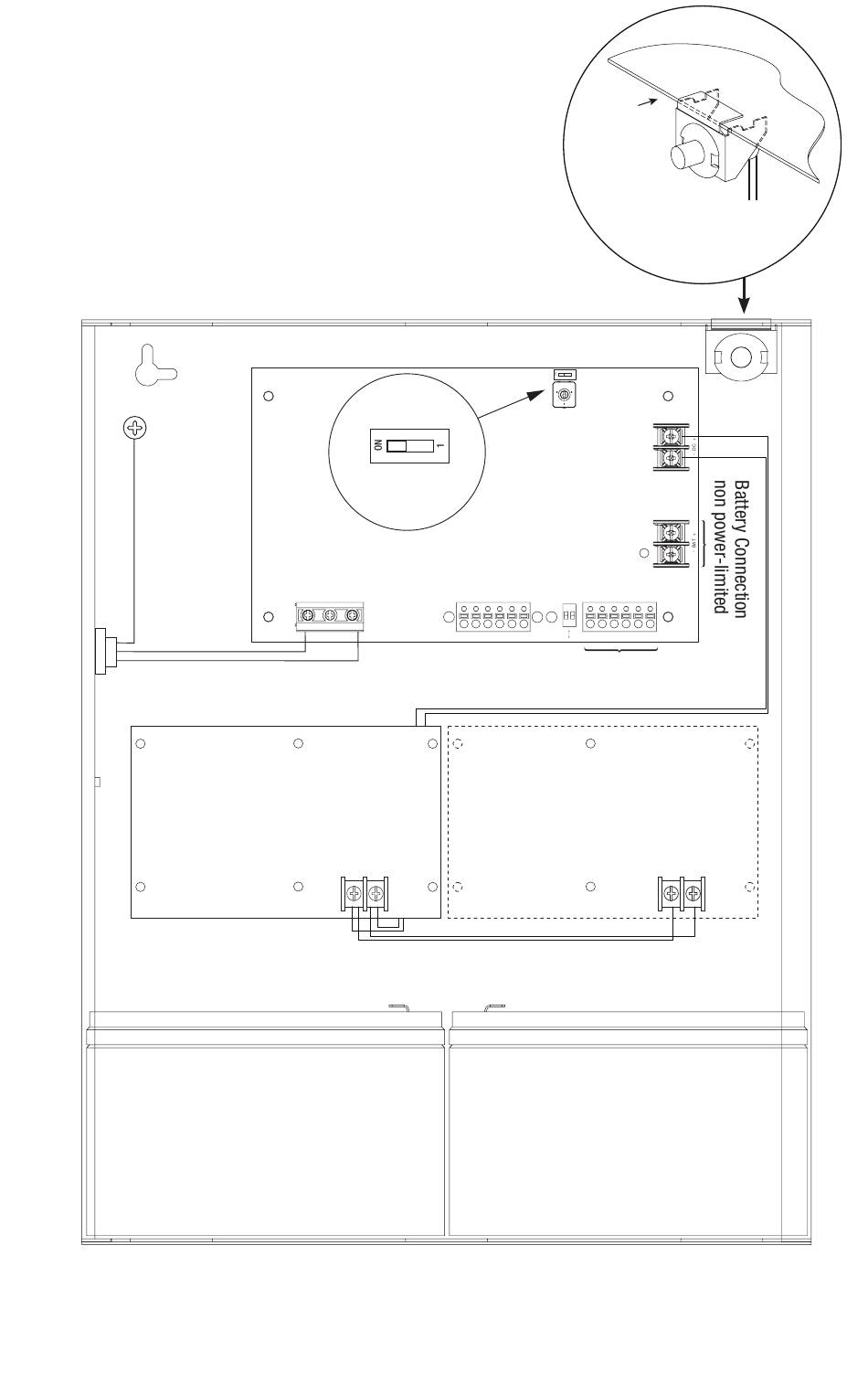

Fig. 7 - eFlow6NX Configuration
Green
Lead
120VAC power mains
non power-limited
* Outputs are non power-limited: eFlow6NX, eFlow6NX8, eFlow6NX16.
Outputs are Class 2 power-limited: eFlow6NX8D, eFlow6NX16D.
Optional Rechargeable Stand-by Battery
Note: 12V batteries required for
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC stand-by battery.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
12AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL listed external battery enclosure must be used if using 40AH or 65AH batteries.
- 10 -
L G N
PD8UL/PD8ULCB
DC Output to Devices*
(refer to Fig. 3a, 3b, 4a, 4b
for board configuration, pg. 7)
for UL294 Applications
ULC-S319 installations.
Switch Detail
Switch On - 12V
Switch Off - 24V
Battery & AC
Supervision Circuit
(power-limited)
AC1
NC C NO NC C NO
AC FAIL BAT FAIL
P N
Optional Rechargeable Stand-by Battery
Enclosure
Edge of
Enclosure
Tamper Switch
(included)
To Access Control Panel or
UL Listed Reporting Device
OFF - 24V
ON - 12V
AC DC
TRIGGER EOL NO GND
+AUX-
SUPERVISED RESET
power-limited
PD8UL/PD8ULCB
DC Output to Devices*
(refer to Fig. 3a, 3b, 4a, 4b
for board configuration, pg. 7)
P
for UL294 Applications
Note: 12V batteries required for
ULC-S319 installations.
N
