Agency Standards Compliance for VFD68Dxx Drives

• North America: cULus Listed; UL 508C, USA File: NMMS.E244421; Canada File: NMMS7.E244421

Installation

Checking the Rating Plate

Before you install the VFD, check the rating plate on the side to verify that the voltage, kW (horsepower), and
output current ratings are correct for your application. See Figure 1, Table 1, and Selecting the Correct VFD68
Drive for Your Fan Motor on page 20.
Table 1: VFD68 Drive Model Information
Voltage
B
–
200 240 VAC, 50/60 Hz
C –
400 480 VAC, 50/60 Hz
D 575 VAC, 60 Hz
F
G
H
J
K
L
M
N
P
For example, a VFD68BGG would be rated for 200–240 VAC and 2 horsepower.
IMPORTANT: Frequently starting and stopping the VFD shortens the lifespan of the VFD68 drive. In
applications where the drive will start or stop frequently, select a VFD which has an output current rating that
is 1.5 to 2 times greater than the FLA current rating of the three-phase motor.
Production year and month
Rating plate
Johnson Controls
VFD model
MODEL
Input rating
INPUT :
Output rating
OUTPUT : XXXX
Serial number
SERIAL :
VFD68
Voltage
(Horsepower)

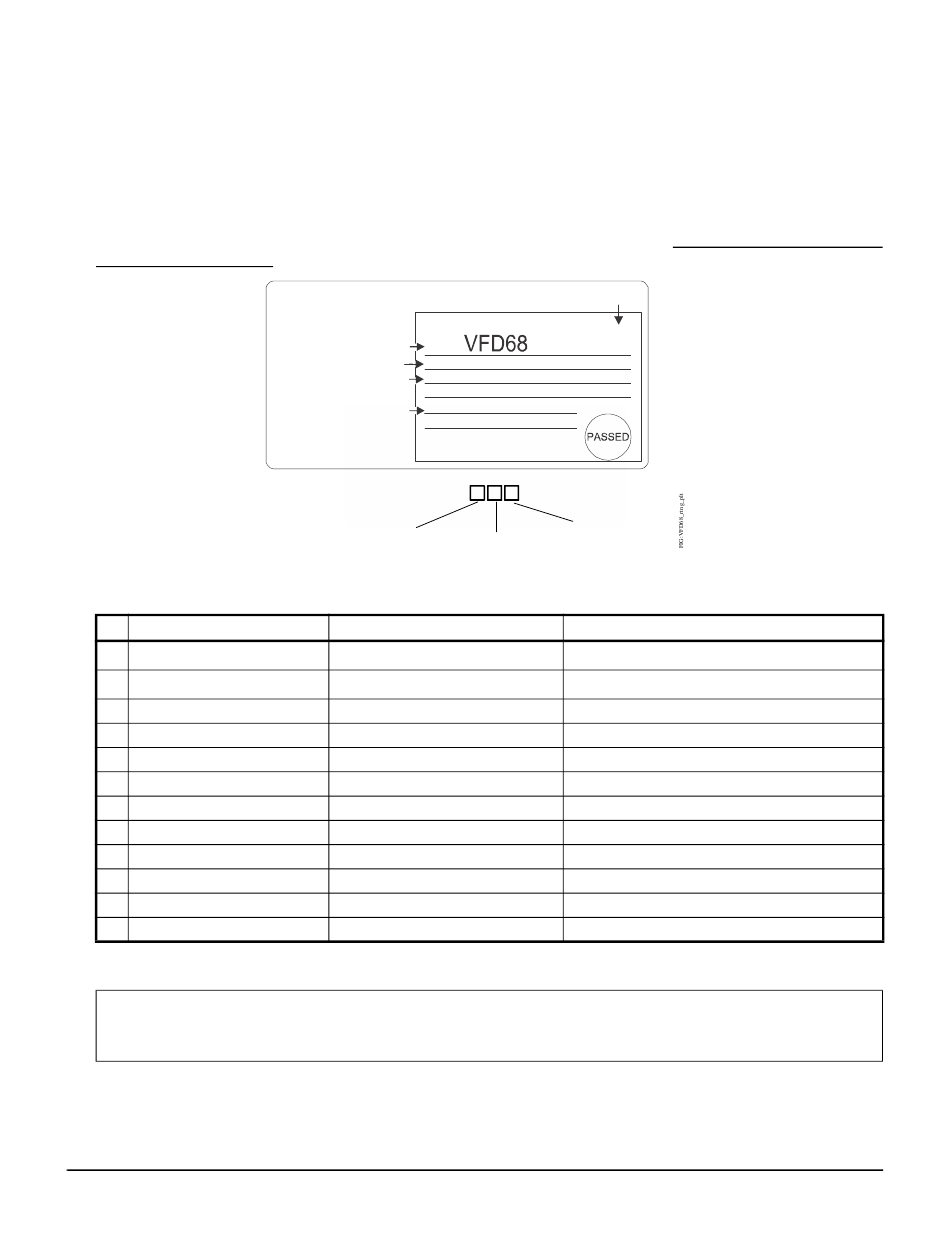

Figure 1: Rating Plate
kW (Horsepower)
0.1 (1/8)
0.2 (1/4)
0.4 (1/2)
0.75 (1)
1.5 (2)
2.2 (3)
3.7 (5)
5.5 (7-1/2)
7.5 (10)
11 (15)
15 (20)
VFD68 Variable Frequency Drives
DATE:XXXX-XX
XXXX
- 2C
Dimensions
Kilowatts
H x W x D
Dimensions, H x W x D, mm (in.)
128 x 68 x 81 (5 x 2-11/16 x 3-3/16)
128 x 68 x 113 (5 x 2-11/16 x 4-7/16)
128 x 68 x 133 (5x 2-11/16 x 5-1/4)
128 x 108 x 130 (5 x 4-1/4 x 5-1/8)
128 x 108 x 136 (5 x 4-1/4 x 5-5/16)
128 x 108 x 156 (5 x 4-1/4 x 6-1/8)
128 x 108 x 166 (5 x 4-1/4 x 6-1/2)
128 x 170 x 142 (5 x 6-11/16 x 5-5/8)
150 x 220 x 155 (5-15/16 x 8-11/16 x 6-1/8)
150 x 140 x 136 (5-15/16 x 5-1/2 x 5-5/16)
150 x 220 x 148 (5-15/16 x 8-11/16 x 5-13/16)
260 x 220 x 190 (10-1/4 x 8-11/16 x 7-1/2)
