3. Push down on the orange tab to open the terminal (Figure 21).

IMPORTANT:

Do not pull the wires out of the terminal block without pushing the orange tab all the way

down. Pulling wires out of the low-voltage terminal block without opening the terminal may damage the

terminal block or circuit board.

4. Insert the wire and release the orange tab to secure the wire.

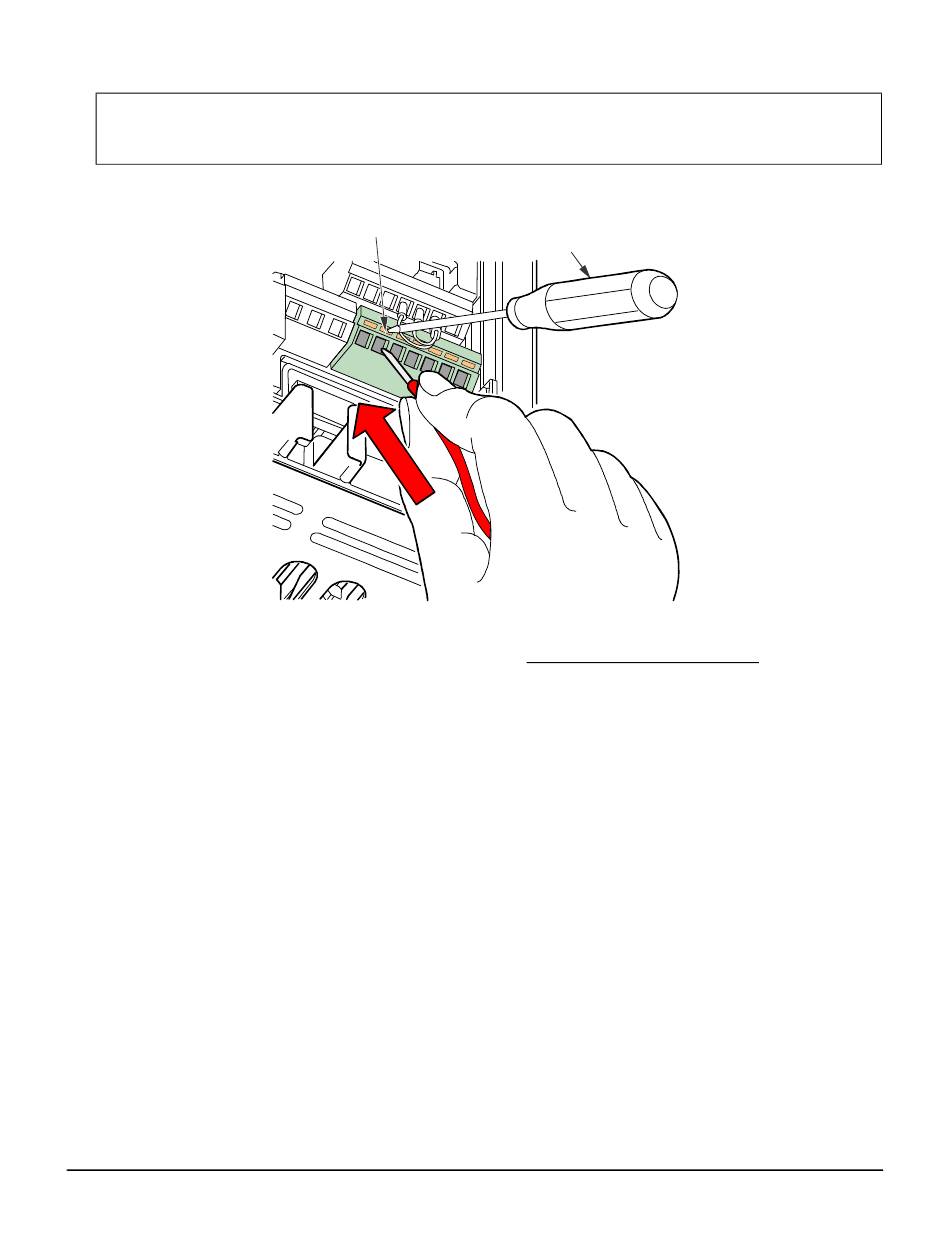

Figure 21: Wiring Analog Input Devices to the VFD68 Control

5. Wire the input devices to the analog input terminals (see Low-Voltage Wiring Connections on page 28) and

make any necessary parameter adjustments.

6. Replace the front cover.

Open/close tab

VFD68 Variable Frequency Drives

Flathead

screwdriver
