Mounting

Mounting the VFD68Bxx and VFD68Cxx Drives

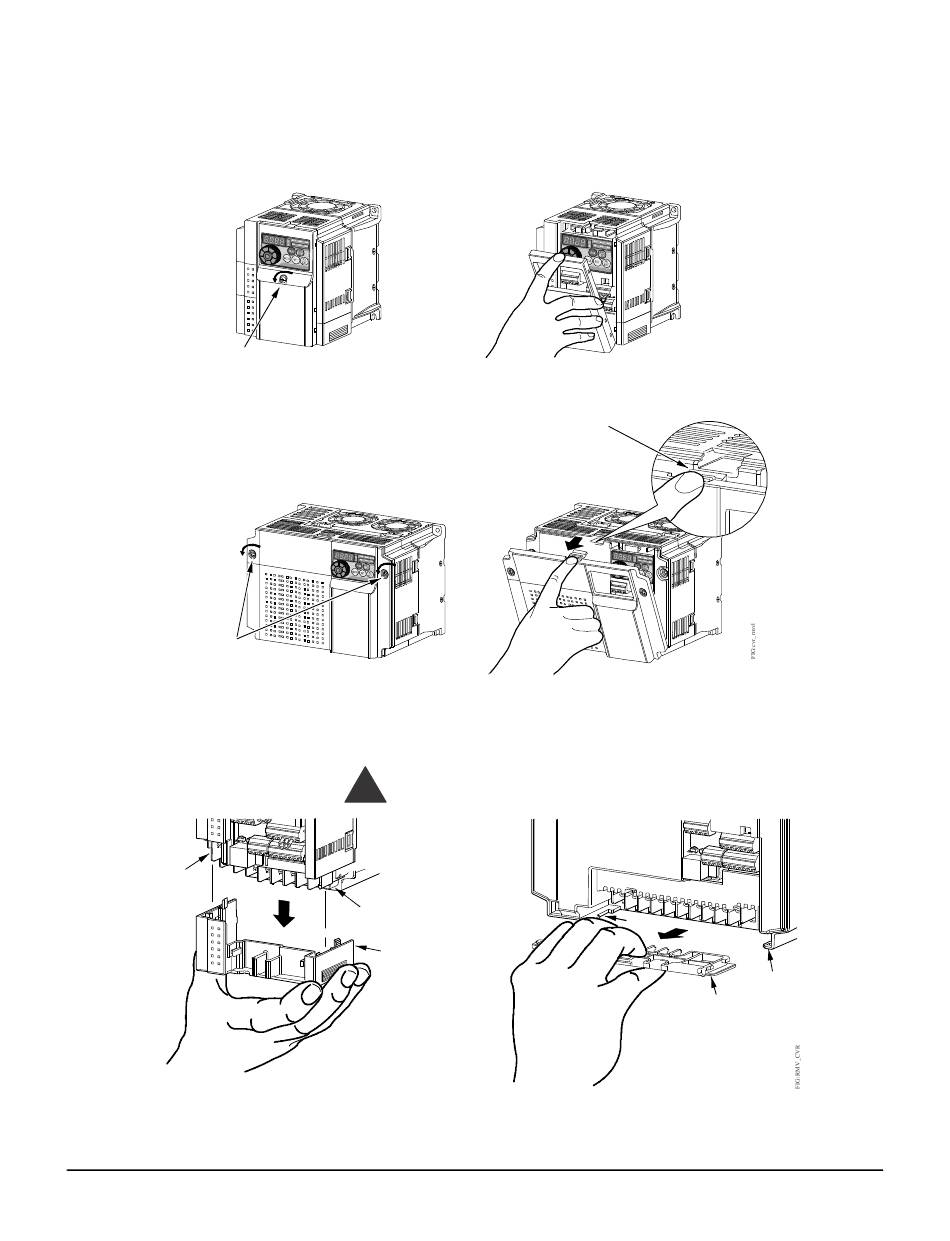

1. Loosen the screws on the front cover and remove the cover (Figure 5).
1)
Cover
Screw
1)
Cover
Screws
Figure 5: Loosen the Cover Screws and Remove the Front Cover
2. Remove the high-voltage wiring cover at the bottom of the VFD68 drive (Figure 6).
Guide
!
Warning: Risk of Electric Shock
Guide
Wiring
Cover
Figure 6: Remove the High-Voltage Wiring Cover
VFD68 Variable Frequency Drives
13
2)
Cover
Latch
2)
Guide
Guide
Wiring
Cover
