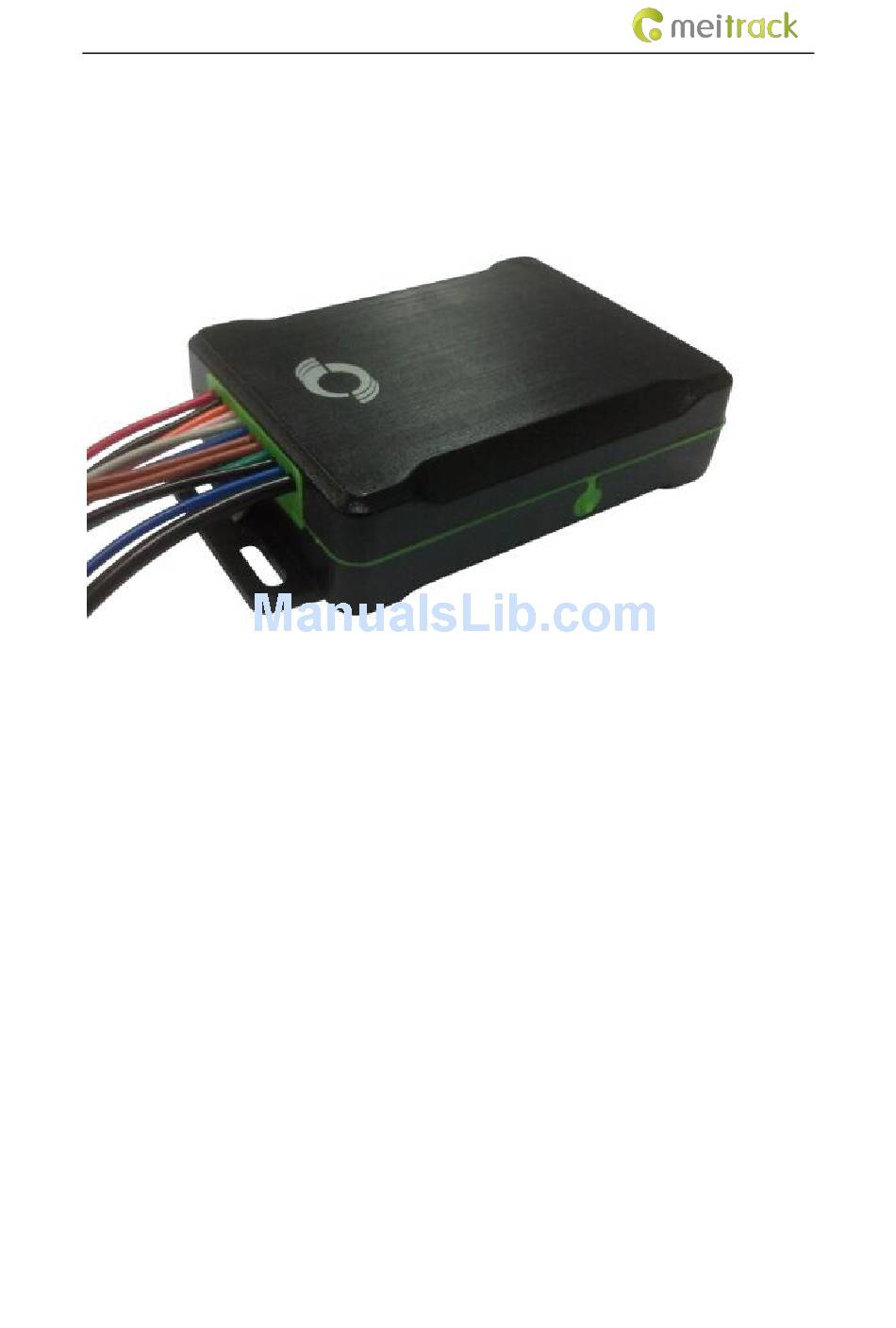

- Page 1 MEITRACK T311 User Guide MEITRACK T311 User Guide...
- Page 2 Change History File Name MEITRACK T311 User Guide Created By Kyle Lv Project T311 Creation Date 2014-08-01 Update Date 2014-09-22 Subproject User Guide Total Pages Version V1.2 Confidential External Documentation Copyright © 2014 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
3.1.3 Other Functions ..........................- 5 - 3.1.4 Optional Accessory Function ......................- 5 - 3.2 Specifications ............................- 5 - 4 T311 and Accessories ............................- 6 - 5 First Use ................................- 7 - 5.1 Installing the SIM Card ..........................- 7 - 5.2 Indicator .............................. -
Page 4: Copyright And Disclaimer

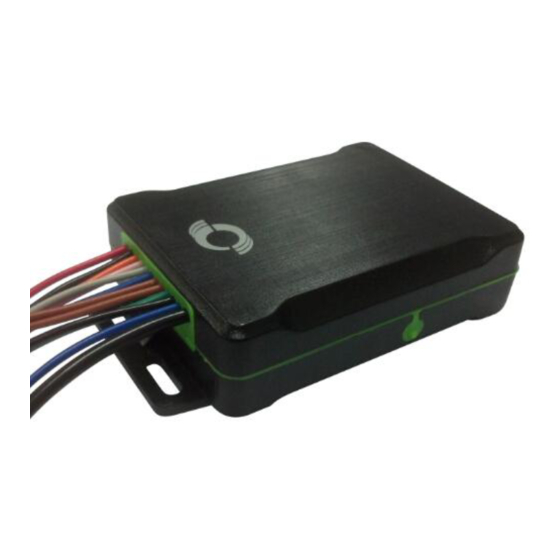

2 Product Overview The T311 is an anti-theft GPS tracking device specially designed for motorcycles and electric vehicles. The T311 is equipped with a wireless remote control and a buzzer, so that vehicle arming, disarming, and keyless start can be implemented. -
Page 5: Other Functions
Internal antenna (the side with the logo facing upwards) (Optional) External antenna Built-in memory 8 MB chip Sensor Acceleration sensor (for vibration wakeup and vehicle stealing alarm) Wireless remote RF 433 MHz Copyright © 2014 Meitrack Group All rights reserved. - 5 -... -
Page 6: T311 And Accessories
T311 and standard accessories: T311 with a built-in Motorcycle cable Buzzer Electric vehicle cable battery USB cable 3M double sided tape Optional accessories: External GPS antenna Wireless remote control Relay Copyright © 2014 Meitrack Group All rights reserved. - 6 -... -
Page 7: First Use
5.2 Indicator Power button GPS indicator (blue) GSM indicator (green) To start the T311, press and hold down the power button for 3s to 5s, or connect the T311 to external power supply. GPS Indicator (Blue) Steady on One button is pressed or one input is activated. -
Page 8: Configured On A Computer
Blink (1s on and 1s off) No GSM signal is received. 5.3 Configured on a Computer This section describes how to use MEITRACK Manager to configure the T311 on a computer. Procedure: Install the PL2303 driver and Meitrack Manager. Connect the T311 to a PC by using a USB cable. -
Page 9: Positioning, Tracking, And Anti-Theft
5.4 Positioning, Tracking, and Anti-Theft 5.4.1 Querying a Location by Using a Mobile Phone This section describes how to query the current location of the T311, ensuring that the GPS is working normally. Call the SIM card phone number embedded in the T311, and hang up after it rings 2–3 times. - Page 10 SMS command is: Password,Command,Parameter. More SMS commands You can configure the T311 on a mobile phone or on a computer by using Meitrack Manager. For details, see section 5.3 "Configured on a Computer." Note: The default password is 0000. You can change the password by using Meitrack Manager or SMS commands.
-
Page 11: Setting A Function Phone Number
MEITRACK T311 User Guide The T311 can be configured by SMS commands with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS report. 5.4.2 Setting a Function Phone Number... -
Page 12: Rf Remote Control Code Matching Function
When more than one remote controls are implemented code matching, if a same remote control is pressed twice, code matching performed later for other remote controls does not take effect. 5.6 GPS Tracking System Perform the following operations: Copyright © 2014 Meitrack Group All rights reserved. - 12 -... - Page 13 Go to the map, and choose Manage > Admin. Select a user, and Click Add a New Device. Obtain the tracker IMEI from Meitrack Manager, register a device, and set the parameters shown in the following figure. Double-click a device in the panel on the right, and check whether data is updated in Status.
-
Page 14: Installing The T311
(Only for motorcycles. For details, refer to the wiring diagram.) Motor pulse line Green Connected to the motor pulse signal cable. Used only for electric vehicles. Copyright © 2014 Meitrack Group All rights reserved. - 14 -... -
Page 15: Port Pictures
Electric vehicle cable Remote control antenna Buzzer output USB232 port 6.2.3 Motorcycle Wiring Diagram 6.2.3.1 DC Ignition Motorcycle Wiring Diagram Turn the switch to the left stop position (DC ignition mode): Copyright © 2014 Meitrack Group All rights reserved. - 15 -... -
Page 16: Ac Ignition Motorcycle Wiring Diagram
MEITRACK T311 User Guide 6.2.3.2 AC Ignition Motorcycle Wiring Diagram Turn the switch to the right stop position (AC ignition mode): Copyright © 2014 Meitrack Group All rights reserved. - 16 -... -
Page 17: Negative Start Wiring Diagram
If a motorcycle is the negative start model, add a relay to change the positive start cable to a negative start cable on the basis of the positive start wiring diagram. Note: If a motorcycle is the negative start model, one external relay is required. Copyright © 2014 Meitrack Group All rights reserved. - 17 -... -
Page 18: Electric Vehicle Wiring Diagram
6.3 Mounting the T311 Use cable ties to fasten the T311 on the motorcycle. Note: The device side with the Meitrack logo faces upwards to strength the GPS signal. Copyright © 2014 Meitrack Group All rights reserved. - 18 -... - Page 19 MEITRACK T311 User Guide If you have any questions, send an email to info@meitrack.com. Copyright © 2014 Meitrack Group All rights reserved. - 19 -...
