Ensure on discharge side that:
• All pipes and fittings are adequately dimensioned to reduce pressure losses and to with-
stand the maximum operating pressure of the pump.
• A gate valve is fitted to regulate delivery flow.
• A check-valve is mounted against possible water hammer and, especially, in presence of
differences in height and long pipeline.
• Anchorages and supports to prevent damages and possible breakage of delivery flange
are properly secured.

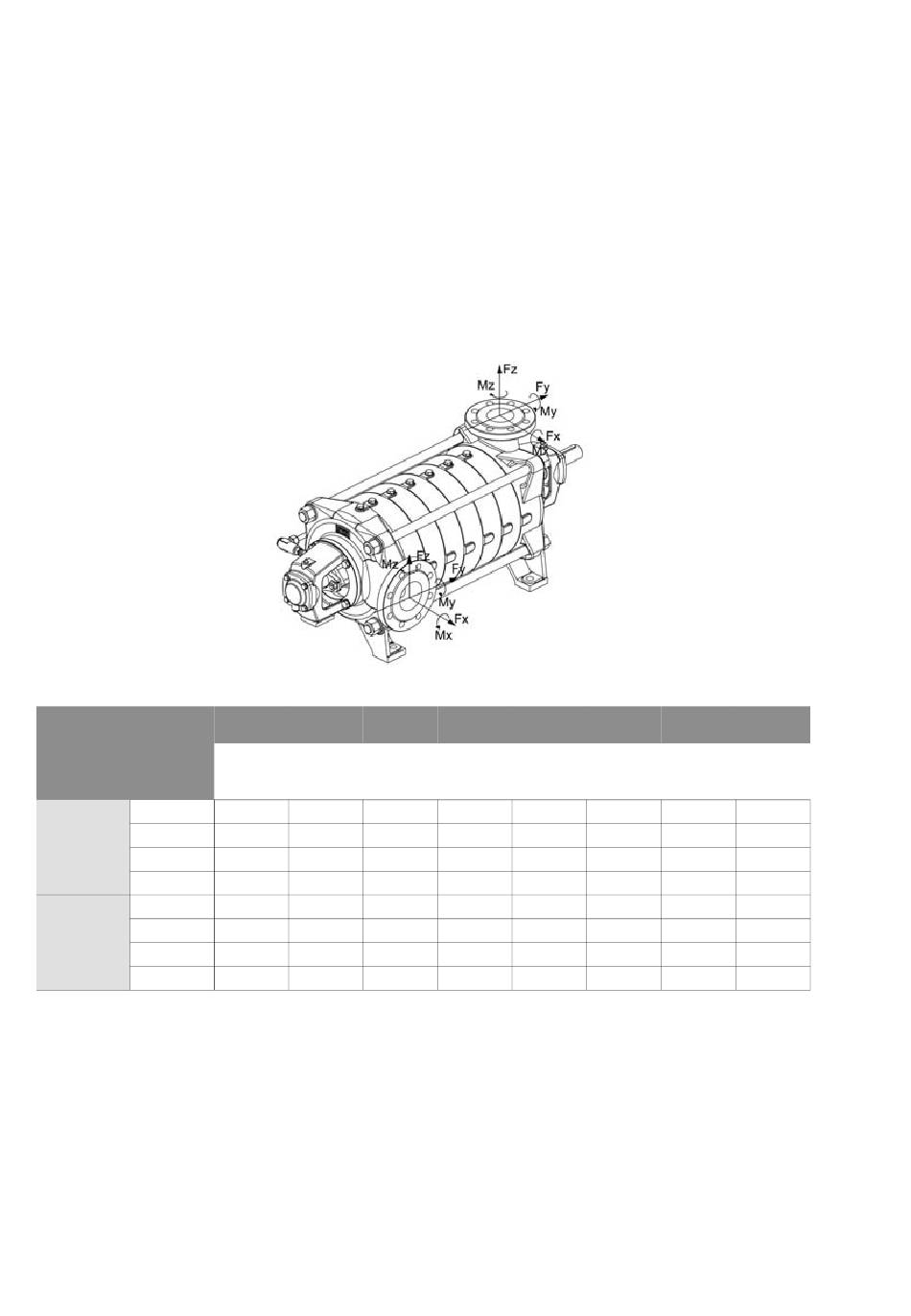

Maximum allowable forces and moments on pump flanges
Zeox FIRST H
Flanges
DN
Suction 65
flange
80
100
150
Delivery 50
flange
65
80
125
30
Fy Fz Fx
550 1300 550
650 1600 650
750 1800 750
950 3400 950
600 1400 600
600 1400 600
700 1400 400
900 2250 900
ΣF My Mz
N
1515 400 300
1545 200 400
2090 700 600
3660 1200 800
1640 400 300
1640 400 300
1715 500 400
2085 800 600
Mx ΣM
400 640
500 810
700 1060
1000 1755
500 710
500 710
600 880
750 1250
