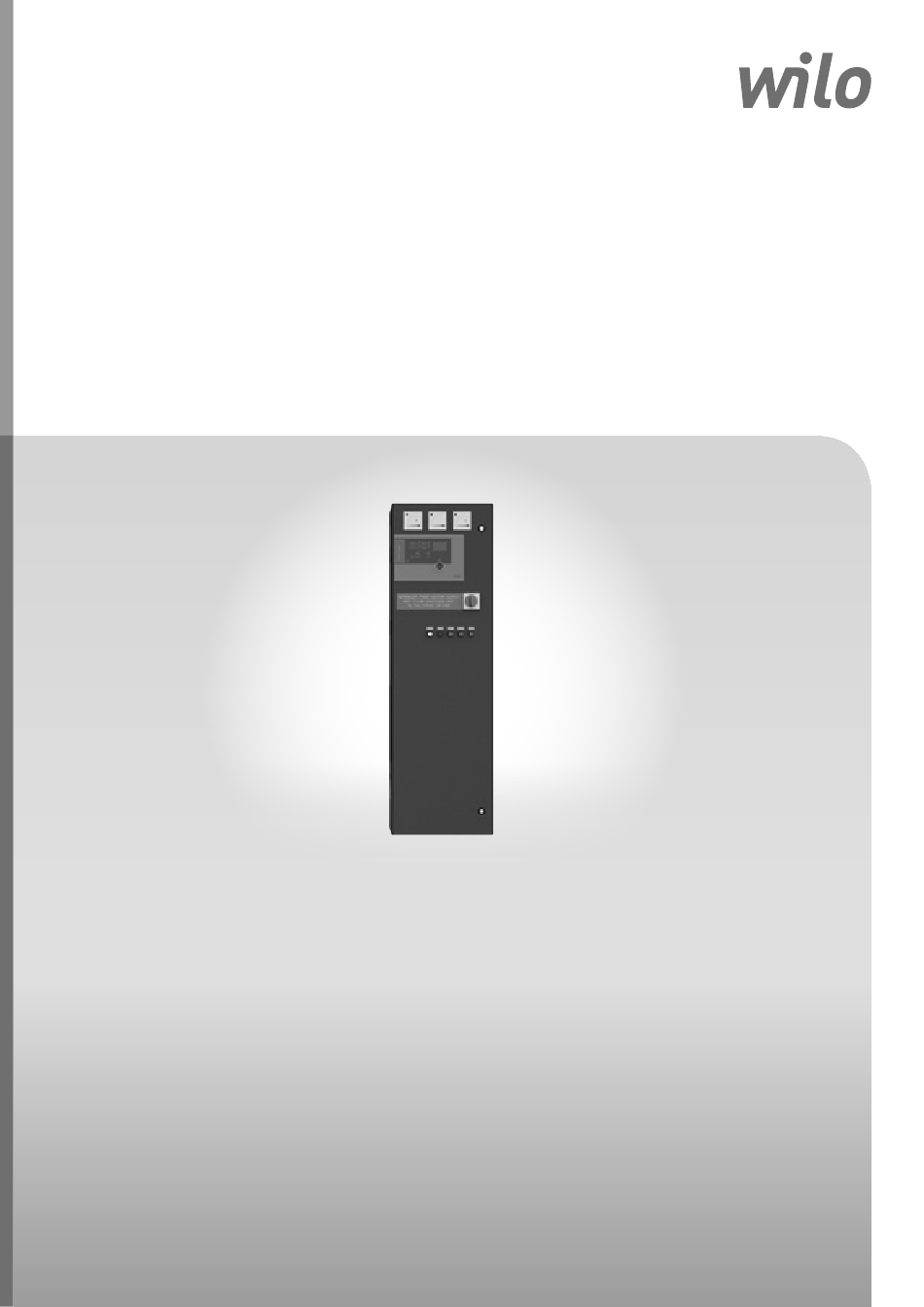

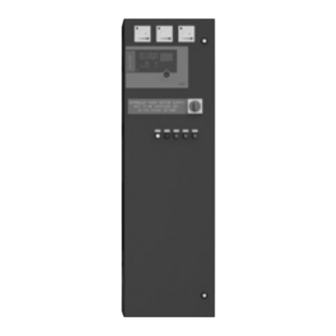

- Page 1 Pioneering for You Wilo-Control SC-Fire Diesel DK en Installation and operating instructions 4 210 265-Ed.01 / 2016-08-Wilo...
- Page 2 Fig. 1: BATTERY A BATTERY B BATTERY C AUTOMATIC MODE AUTOMATIC MODE MANUAL MODE WILO SE 08/2016 ...
- Page 3 Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 4 English WILO SE 08/2016 ...
- Page 5 LED (yellow): Excess motor tempera- ture (cooling water) LED (yellow): Oil pressure fault LED (yellow): False start LED (white): Sprinkler request LED (white): Float switch request (pump priming tank) A and B batteries active test LED (yellow): Heating fault Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 6 LED (yellow) and button: Test device for manual starter device LED (red) and button: Manual pump stop Button: Lamp test Button: Manual start of battery A Button: Manual start of battery B Button: Acknowledgement of error messages WILO SE 08/2016 ...
- Page 7 “Caution” implies that damage to the product is knowledge, unless they have been given supervi- likely if this information is disregarded. sion or instruction concerning use of the appliance NOTE: Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
-
Page 8: Application (Intended Use)
• Check product for transport damage. • In the event of damage in transit, take the necessary steps with the forwarding agent within the respective time limits. CAUTION! Risk of property damage! Incorrect transport and interim storage can cause property damage. WILO SE 08/2016 ... -
Page 9: Product Information
English 5 Product information 5.1 Type key Example: W-CTRL-SC-F-1x4.25-47.7KW- M- FM- ND4-D W = WILO CTRL Control Smart Control = control unit F = fire fighting purposes Number of pumps 47.7 kW Rated power of diesel engine [kW] 1~230 V, 50 Hz... -
Page 10: Description And Function
6 start attempts. The erating knob for menu selection and parameter in- starting time (menu 1.2.2.1) and the pause time put (Fig. 1, item 2) (menu 1.2.2.2) can be set using the software. WILO SE 08/2016 ... - Page 11 In addition, a minimum battery voltage can be set in menu 5.4.1.0. If the voltage in one of the con- nected batteries falls below this value, an error message appears on the display. Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 12 Go back (press briefly: one menu level; press and hold: main screen) EASY menu EXPERT menu 1st meaning: Service not logged in 2nd meaning: Display value – no entry possible Service menu Parameter Information Fault Reset fault WILO SE 08/2016 ...
- Page 13 Switchgear data: Controller type; ID number; software/firmware Operating hours Pump's operating hours Switchgear's switching cycles Pump's switching cycles Communication Output parameters Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 14 Motor temperature thermostatic valve Diesel Cooling water (temperature) Diesel Belt break Diesel False start Electrical equipment Pressure Electrical equipment Mains power supply Electrical equipment WILO SE 08/2016 ...
- Page 15 Modbus BACnet Factory setting Resetting the settings to the factory settings Alarm counter Maintenance interval Reset Motor speed Diesel Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 16 English Symbol Function/description Availability Set motor speed Diesel Minimum speed for “motor in operation” Diesel Reset starting counter Diesel WILO SE 08/2016 ...
- Page 17 English Menu structure: The menu structure of the control system has 4 levels. Navigation in the individual menus as well as the parameter input are described in the following ex- ample (change of minimum battery voltage): Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 18 Refer to the following table for a description of the individual menu items: Menu Display Description Parameter no. / range factory setting The main screen shows the status of the sys- tem. The display continuously switches be- tween the voltage and charging current for the connected batteries.
- Page 19 5 … 10 Pause time: pause between start attempts 5 … 10 Delays 1 … 10 Start delay when pressure switch trips Start delay when float switch trips 1 … 10 Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 20 Communication None Display of currently activated Modbus BACnet GSM fieldbus Pump menu Drives On/Off Information Operating values Current battery voltages WILO SE 08/2016 ...
- Page 21 Current charging currents Charging current of battery A Charging current of battery B Start attempts counter Start attempts for battery A Start attempts for battery B Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 22 Status of float switch Status of fuel float switch Status of heating temperature switch Status of oil temperature switch Status of cooling water temperature switch Sensor values WILO SE 08/2016 ...
- Page 23 Oil pressure Oil temperature Cooling water temperature Speed Motor speed Speed for “motor in operation” signal Operating data Total running time of the system Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 24 Running time of pump during last start System's switching cycles Pump's switching cycles System data SC diesel System type Serial number as ticker format Software version WILO SE 08/2016 ...
- Page 25 Description Parameter no. / range factory setting Firmware version Settings Communication Modbus Baud rate 19.2 38.4 76.8 1 … 10 … 247 Slave address even Parity none Stop bits Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 26 38.4 76.8 1 … 128 … 255 Slave address even Parity none Stop bits 0 … 128 … 9999 BACnet device instance ID Sensor settings Activation of oil pressure sensor WILO SE 08/2016 ...
- Page 27 Correspondence values for oil tem- perature sensor 5.2.6.1 0 … 3000 Drag coefficients input 5.2.6.9 Activation of cooling water tempera- ture sensor Correspondence values for cooling water temperature sensor 5.2.8.1 0 … 3000 Drag coefficients input 5.2.8.9 Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 28 Activation of belt break monitoring Limit values 0 … 30 Minimum battery voltage Signal output parameters Fall Raise Freely configurable fault signal Not store Acknowledgement process for fault signal ON store Fall Logic reversal of input signal Raise WILO SE 08/2016 ...
- Page 29 The parameterisation of the switchgear is divided data from the device. into the menu areas EASY and EXPERT. Menu level 7.0.0.0 is reserved for Wilo customer For rapid commissioning using the factory presets, service. it suffices to set the speed values and the speed ad- justment in the EASY area.
- Page 30 The signal lamp flashes yellow when automatic been triggered. mode is switched off (menu 3.1.0.0). Excess motor temperature (cooling water) (Fig. 2, item 4) The signal lamp lights up yellow when a connect- ed thermostatic valve is triggered. WILO SE 08/2016 ...
-
Page 31: Installation
Warning! Danger of electric shock! The control is factory preset. There is a potentially fatal voltage on the sup- The factory settings can be restored by Wilo cus- ply side, even when the main switch is turned tomer service. off. -
Page 32: Maintenance
5.4.1.0 necessary. Check charger. Check setting in 5.4.1.0 and correct, if necessary. E04.6 Undervoltage in battery B Voltage has fallen below value set Check battery B and replace, if in menu 5.4.1.0 necessary. Check charger. WILO SE 08/2016 ... - Page 33 6 unsuccessful start attempts performed E137.0 Belt break No tension for generator Check V-belt and replace, if nec- essary. Request customer service. If the fault cannot be remedied, please contact your nearest Wilo customer ser- vice point or representative. Installation and operating instructions Wilo‐Control SC‐Fire Diesel DK ...
- Page 34 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
