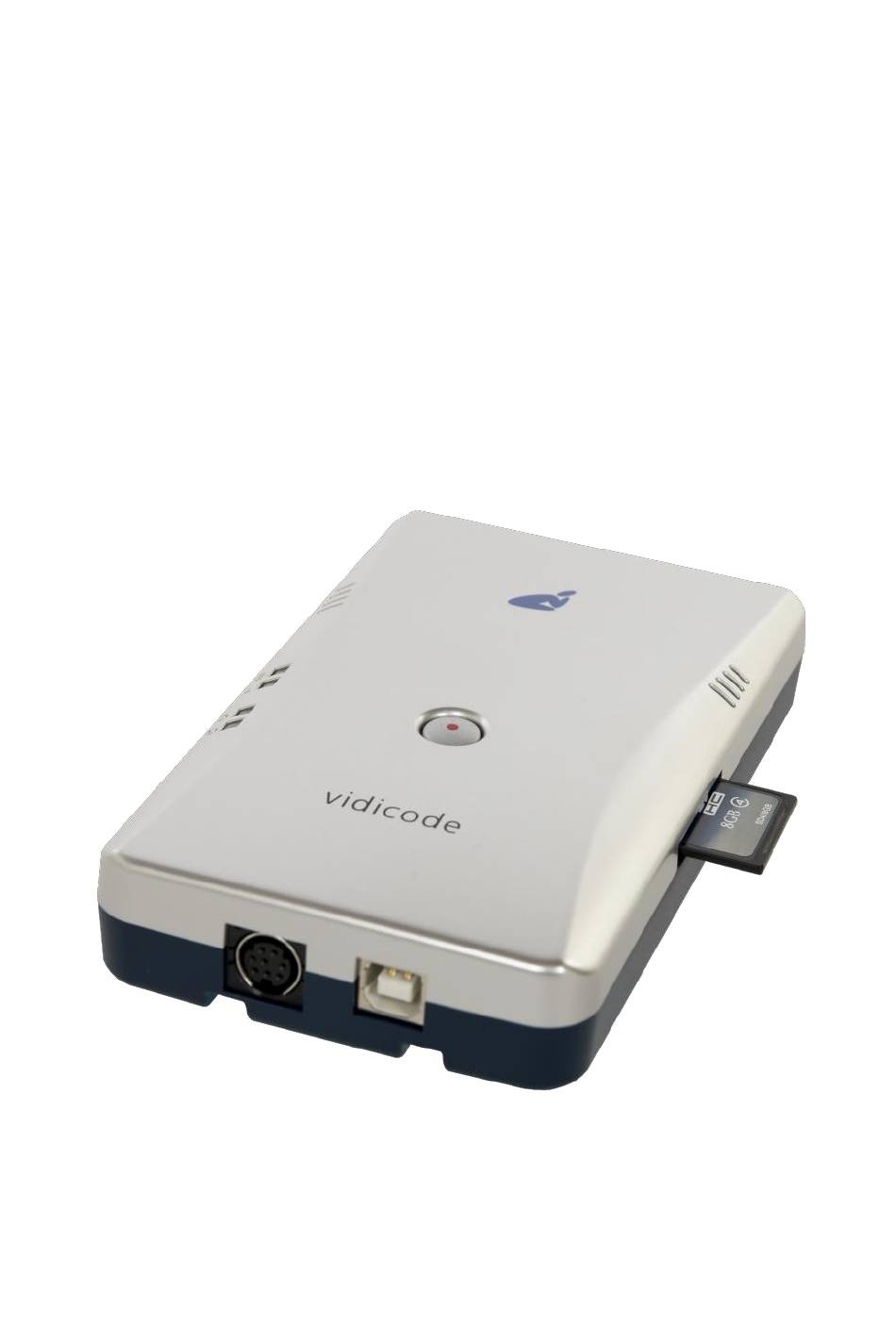

- Page 1 V-Tap ISDN BRI Manual v2.6 V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 2: Table Of Contents
3.3.13 Licenses & Versions .............. 27 LED’s ................28 Red Error LED ..............28 Green Link LED ..............29 Blue Data LED ..............30 Amber SD-Power LED ............. 30 V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... - Page 3 Firmware update ............34 Number-list (Black- or White-list) ........ 35 Remote control with UDP commands ......36 Revision History ............38 Acknowledgements ............. 39 Privacy ................39 Liability ................39 V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 4: Introduction
Tunnel has been defined or not, the files are sent over the network or can be read later by the CR-VoIP software. Note that the V-Tap ISDN BRI does not produce WAV files or store any data on the SD card, without a Channel License for Apresa or PC. -
Page 5: Getting Started
2 Getting started 2.1 Hardware installation The V-Tap ISDN BRI is easy to setup. The following steps are involved: • Connect the ISDN-2 line and phone to port 1 and 2 of the V-Tap. • Insert an SD card (up to 32 GB, FAT32 formatted). -
Page 6: Software Installation
System settings, Network tab and enable “V-Tap” as is shown below: NOTE1: Apresa’s IP address is the “Tunnel Server Address” in the V-Tap. NOTE2: Be sure the Encryption password is the same as in the V-Tap unit. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 7: Call Recorder Voip On The Pc
NOTE4: The CR-VoIP software does not need licenses to receive from the V-Tap unit. The Call Recorder VoIP software for the PC has its own manual and is therefore further not described in this manual. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 8: Checklist For Tunnel Connection
'tunneltrace.pcap' file can be read afterwards with Wireshark. 10) The SD card in the V-Tap should contain “.WAV” files. The SD card can be read by the PC software in menu File and ‘Import from V-Tap’. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 9: Web Interface And Settings
Show IP address. It is also possible to set a new fixed IP address or enable DHCP for the see next page cable by using an SD card: ( V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 10: Web Interface
Login button and the Settings menu appears ( on the next page (The settings on the next page are not the default settings, but just an example.) V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... - Page 11 By pressing the Save & Logout button, the settings are sent to the V-Tap unit. Any ongoing recording is stopped, the file on SD card is closed, and after a few seconds the new settings are activated. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 12: Settings
The default mask is “255.255.255.0”. In case DHCP is used, the mask is automatically obtained. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... - Page 13 The default DNS address 8.8.8.8 is the Google Public DNS, but the Gateway must be defined also before this address is reachable. In case DHCP is used, the DNS address is automatically obtained. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 14: Tunnel Settings
The Source Port also has an important role in the Tunnel protocol. The default number 0 selects randomly a port number between 49152 and 65535. This range of port numbers is recommended by IANA to be used for dynamic ports. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... - Page 15 Apresa or CR-VoIP software, must use the same password. Leaving the password empty is still doing the encryption but is less secure. The single and double quotation marks (‘ and “) cannot be used ! V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 16: Wi-Fi Settings
All further access must then be done through a LAN cable. Sending tunnel data with Wi-Fi is slower than using a LAN cable. So, some delay must be considered. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 17: Ftp & Web Settings
By default, the FTP Port is on 21 for normal FTP access. The PC tool ‘vcUpdater’ uses FTP to update the firmware of the V- Tap. This tool can be found on the Vidicode website in the menu Service and Support => Firmware. -
Page 18: Telnet Setting
Normally, there is no need to use any of these functions over Telnet. The command ATDEBUG is a toggle to enable and disable the output of more debug information. This is further not described in this manual. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 19: Ntp Settings
The time correction in minutes to the GMT (Greenwich Mean Time) zone. The number can start with the minus sign when needed. For example, enter “-300” for Eastern Time (that is -5 hours for east- coast US & Canada). V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 20: Date And Time Settings
For the time, the entered format must be hour, minutes and seconds, separated by the colon-sign and always 8 characters long in total. The new date and time are set after pressing Save & Logout. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 21: Button Mode Setting
These files have a different file name and are only deleted from the card when overwritten or by the “SD Delete File after Sending” function. Watch the Red LED: ON=Started , OFF=Stopped V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 22: Isdn Settings
V-Tap ISDN will still record all calls correctly, except that inbound and outbound are reversed. In other words, when the local and remote phone numbers are reversed in the database software, this parameter must be enabled. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 23: Sd Card Settings
. Take out the SD card or the USB cable (power off). NOTE: The procedure above does not work when start/stop with the button is set (see Button Mode). In that case, the SD card can just be taken out. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... - Page 24 It is an option to delete files after the content was sent to a Tunnel server. A certain risk is taken then, because data cannot be recovered anymore after deletion. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 25: Special Network Settings
The values 18 and 50 can be used for fast and faster sending. MAC Address The Media Access Control (MAC) address of the device is a unique identifier to communicate over an Ethernet network. The address cannot be changed. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 26: App Special Flags
= Set Timeout in seconds for the TCP web server; default 90. ".WUP" = Update Wi-Fi module (version returned in App Special Flags). ".WZ0/1" = Disable/Enable Wi-Fi module during recording. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 27: Licenses & Versions
V-Tap ISDN BRI OS Version V-Tap ISDN BRI App Version V-Tap ISDN BRI Serial Number Firmware versions and the serial number are shown for information purposes only and cannot be changed. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 28: Led's
This can only be solved by removing the card again. Check if the card lock-switch is on, else it is recommended to verify the card on an external PC. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 29: Green Link Led
Green LED steady ON. • The link to the Tunnel server is OK. When start/stop with the button is selected and no Tunnel is configured, it means that recording is active. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 30: Blue Data Led
Amber LED blinking fast (Red LED ON): SD card ERROR. • A read- or write-error happened on the SD card or the SD card is not usable by the system. The card must be removed and checked. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 31: Button Functions
NOTE2: When the Blue LED is not blinking, then no recording is busy, so no data is written, in which case the SD card can also be taken out. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 32: Enable Dhcp Temporary
When no Green or Blue is blinking at all in between Green going OFF-ON, it means the zero digit. • After the last digit, the system waits 5 seconds and then continues normal operation. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 33: Factory Settings
Power On and hold the button pressed for 1 second. • Release the button. • The IP address is now on default 192.168.55.66 • Only access with FTP is now possible (no web interface). V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 34: Firmware Update
When the system is accessible through FTP, the firmware can be updated with the PC tool ‘vcUpdater’. This tool can be found on the Vidicode website in the menu Service and Support > Firmware. Another way to update is by using an SD card as follows: - The manufacturer must provide the necessary files first. -
Page 35: Number-List (Black- Or White-List)
• It is also possible to enter the last (right-most) digits only of each number. But then, all entries must have the same length! • The wildcard character “*” can be used to denote a range (79347*). V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode... -
Page 36: Remote Control With Udp Commands
The "Z-file...” represents a file name of 68 characters long (fixed length), containing all call information. The Vidicode Call Recorder VoIP software for the PC also uses this name format. The extension .WAV is added by the software before the file is stored. - Page 37 <id> is the V-Tap ID, the same as characters 17+18 in the file name above. <date>,<time> has the format “dd-mm-yy”,”hh:mm:ss” (14-12-18,16:35:07). A recording command for a non-busy channel sends a "NOP..." message back. An unknown or bad command sends an "ERR.." message back. V-Tap ISDN BRI Manual EN v2.6 Dec 2018 © 2017-2018 Vidicode...
-
Page 38: Revision History
• Button Mode 3 changed. • The SD card must be FAT32 formatted. • V-Tap ISDN2 is now called V-Tap ISDN BRI. v1.1 till V1.7 from April till August 2017 • Licenses added. • Date and Time added in the web interface. -
Page 39: Acknowledgements
Call Recorder. Vidicode is not a source of official interpretation of laws of any country or state, and shall not be construed as a source for making decisions whether to provide notification or not.
