7. Specifications

Supply voltage .................................................................................................... 12 VDC ±15%
Standby current consumption .......................................................................................... 10 mA
Maximum current consumption ........................................................................................ 13 mA
EOL resistors ............................................................................................................. 2 x 1.1 k
Outputs
alarm (NC relay, resistive load) .................................................................... 40 mA / 24 VDC
tamper (NC) ............................................................................................... 100 mA / 30 VDC
Relay contact resistance .................................................................................................... 34 Ω
Detectable speed ...................................................................................................... 0.3...3 m/s
Alarm signaling period........................................................................................................... 2 s
Warm-up period .................................................................................................................. 30 s
Recommended installation height ..................................................................................... 2.4 m

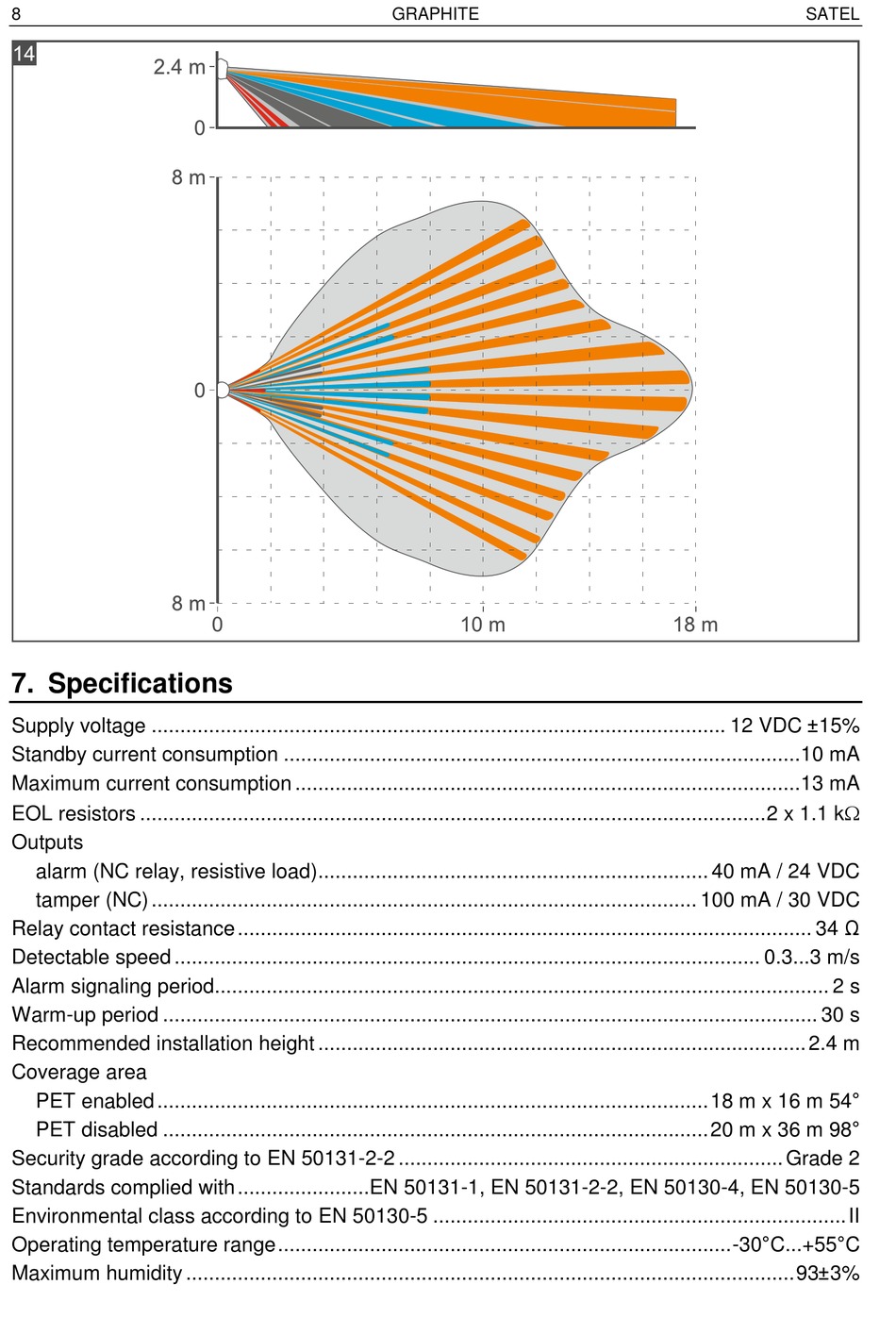

Coverage area
PET enabled ................................................................................................ 18 m x 16 m 54°
PET disabled ............................................................................................... 20 m x 36 m 98°
Security grade according to EN 50131-2-2 ................................................................... Grade 2
Standards complied with .......................EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
Environmental class according to EN 50130-5 ........................................................................ II
Operating temperature range ............................................................................... -30°C...+55°C
Maximum humidity .......................................................................................................... 93±3%
