Chapter 3: Installation
3.3

8H02-16 OPTIONS

Install the options first before proceeding to Section 3.4.
NOTE
If the 8H02-16 is to be installed with optional Fast Ethernet Interface
Modules, refer to Appendix C for installation instructions. For more
information on the two Fast Ethernet Interface Modules and the two
optional memory kits, refer to Section 1.5, Optional Features.
3.4

INSTALLING THE 8H02-16

The 8H02-16 may be installed on a tabletop, shelf, or in a 19-inch rack.
Refer to Section 3.4.1 for information concerning a tabletop or shelf
installation. Section 3.4.2 describes the rackmount installation.
3.4.1

Tabletop or Shelf Installation

This section provides guidelines for installation on a tabletop or shelf.
B
A
A = 15 cm (6 in)
B = 46 cm (18 in)
C = 53 cm (21 in)
D = 213 cm (7 ft)
Proceed to Section 3.4.3 for instructions about connecting power.
3-2
SmartSwitch 10/100
S F
ECURE AST VIRTUAL NETWORKING
WITH
PWR
CPU
RESET
8H02-16
COM 1X 2X 3X 4X 5X 6X

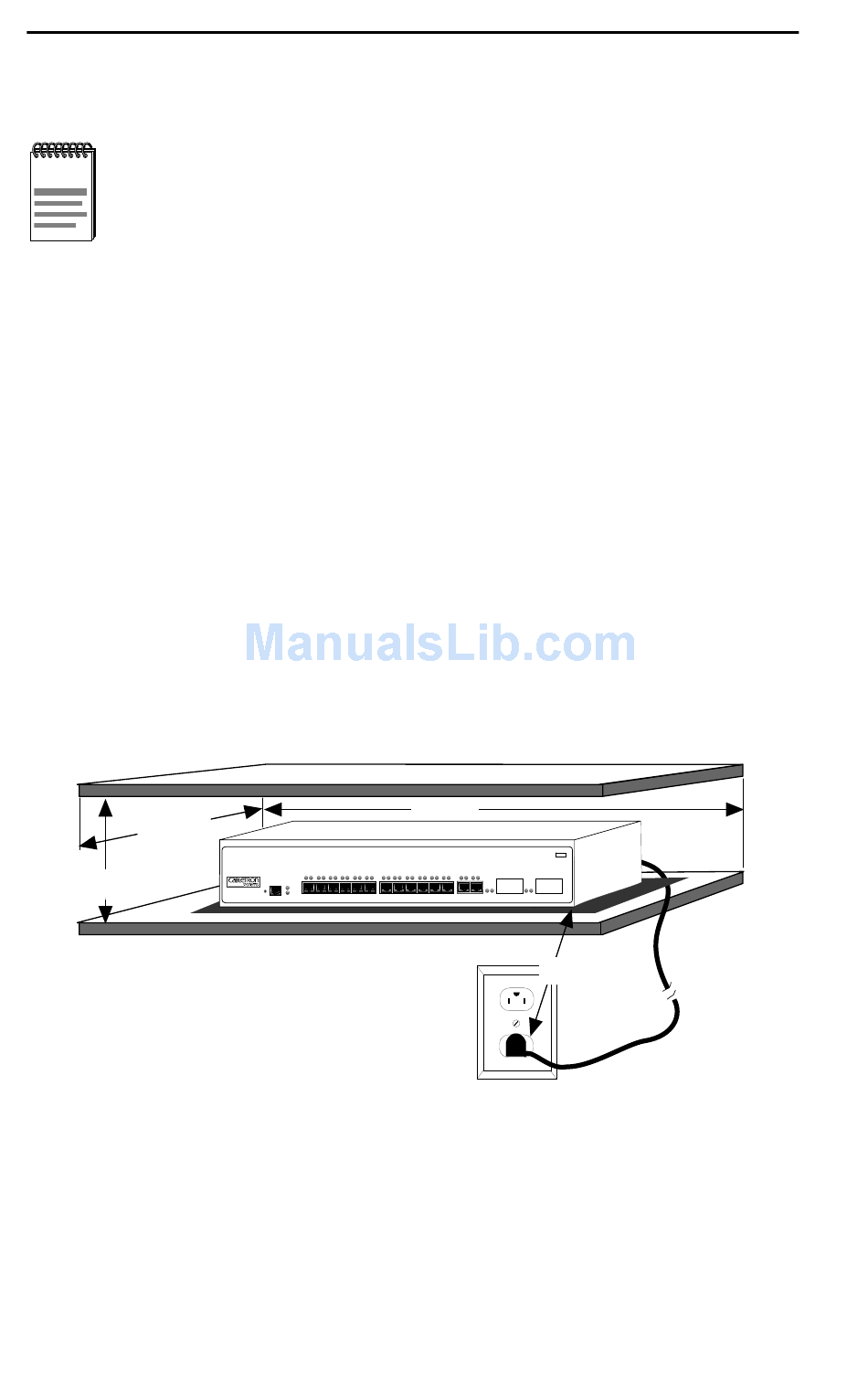

Figure 3-1 Tabletop or Shelf Installation
C
Smart
SWITCH
7X 8X 9X 10X 11X 12X 13X 14X 15 16
D
MMAC
1742_06
8H02-16 User's Guide
