Installing a NetWayXT/NetWayXTX Repeater Module:
Brooklyn, NY, U.S.A.
NetwayXT
Repeater
I.T.E. 43KC
www.altronix.com
Power OUT IN
PoE/PoE+
Output LED
NetWayXT will work only with PoE devices. NetWayXTX will work with PoE/PoE+ devices.
1. Mount NetWayXT/NetWayXTX in desired location utilizing the mounting hole (Fig. 4, pg. 5). Use a proper
fastener and/or wall anchor when securing NetWayXT/NetWayXTX to the wall.
2. Connect structured cable from port marked [OUT] on NetWay to port marked [IN] on the NetWayXT/NetWayXTX
(Fig. 4, pg. 5, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on NetWayXT/NetWayXTX to the PoE/PoE+ camera/edge
device or next NetWayXT/NetWayXTX repeater (Fig. 4, pg. 5).
4. Port status LEDs will illuminate on NetWayXT/NetWayXTX indicating the port is operational
(refer to LED Definitions).
5. Power LED will illuminate indicating 12VDC output.
Port LED Definitions for NetWayXT Repeater:
Status
OFF
ON
Blinking
Port LED Definitions for NetWayXTX Repeater:
Status
OFF
ON
Blinking
NetWay8V / NetWay16V Installation Guide
NetWayXT
Power
LED
Structured Cable
to IP Camera/Edge Device
or next NetWayXT
NetWayXTX
Port Status
Structured
LEDs
Cable to
PoE/PoE+
Camera/Device or
next NetWayXTX
Green LED
Indicates it is connected as 10Base-T or no link.
Indicates it is connected as 100Base-TX.
PoE/PoE+ Output LED
No PoE/PoE+ Output
Normal PoE/PoE+ Output
–

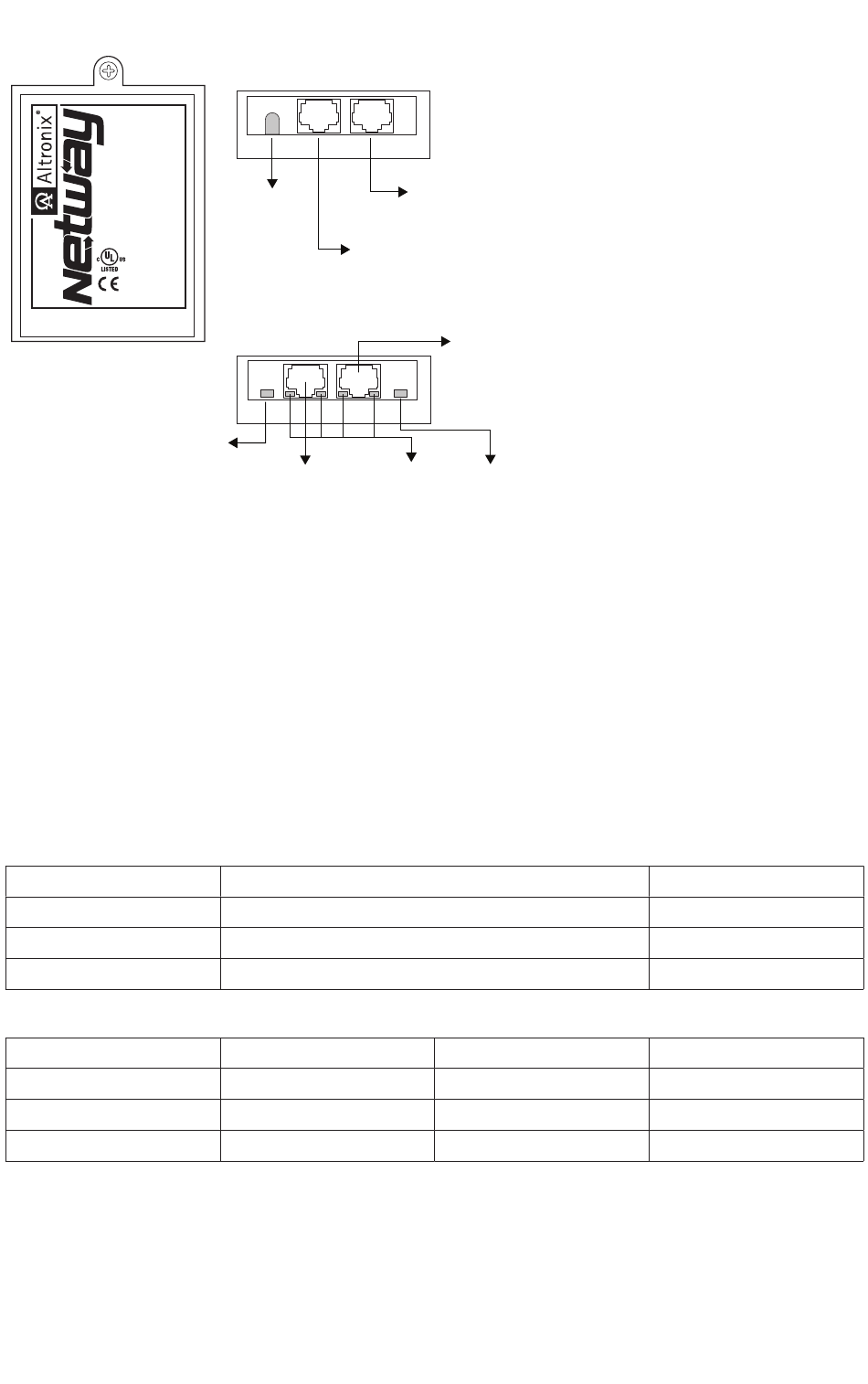

Fig. 4 - NetWayXT/NetWayXTX
Structured Cable
from NetWay8/16
Structured
Cable from
NetWay8/16
PoE/PoE+
Input
LED
–
PoE/PoE+ Input LED
No PoE/PoE+ Input
PoE/PoE+ Input
–
Yellow LED
Indicates no link.
Indicates a link.
Indicates activity.
Yellow LED
Indicates no link.
Indicates a link.
Indicates activity.
