Altronix/Lenel-S2 (S2 Security Platform) Kits
Models Include:
T3SSK75F28
28 Door Kit with Fused Outputs
Fully assembled kit includes:

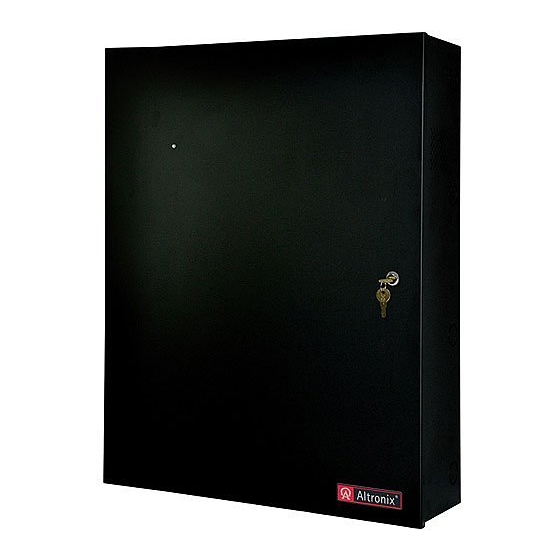

- Trove3 enclosure with TSS3 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Three (3) ACM8 - Fused Access Power Controllers
- One (1) ACM4 - Fused Access Power Controller
- Two (2) PD16W - Fused Power Distribution Module
- One (1) RSB2* - Rocker Switch Bracket with Two (2) Rocker Switches (Not evaluated by UL)
T3SSK75F28D
28 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove3 enclosure with TSS3 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) eFlow104NB - Power Supply/Charger
- One (1) eFlow102NB - Power Supply/Charger
- Three (3) ACM8CB - PTC Access Power Controllers
- One (1) ACM4CB - PTC Access Power Controller
- Two (2) PD16WCB - PTC Power Distribution Module
- One (1) RSB2* - Rocker Switch Bracket with Two (2) Rocker Switches (Not evaluated by UL)
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. T3SSK_081220
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix Trove T3SSK75F28
Summary of Contents for Altronix Trove T3SSK75F28
- Page 1 T3SSK75F28 28 Door Kit with Fused Outputs Fully assembled kit includes: - Trove3 enclosure with TSS3 Altronix/Lenel-S2 (S2 Security Platform) backplane - One (1) eFlow104NB - Power Supply/Charger - One (1) eFlow102NB - Power Supply/Charger - Three (3) ACM8 - Fused Access Power Controllers...
- Page 2 Overview: Altronix T3SSK75F28 and T3SSK75F28D Trove S2 kits are pre-assembled and consist of Trove enclosures/backplanes with factory installed Altronix power supply/chargers and sub-assemblies. Both kits accommodate Lenel-S2 (S2 Security Platform) S2-INST Installation Kit for S2 Network Node for up to twenty-eight (28) (T2SSK7F8) doors in a single enclosure.
- Page 3 2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 2a, pg. 3). 3. Mount backplane to enclosure with hardware. 4. Fasten TSS3 backplane to Trove3 enclosure utilizing hardware (provided). Fig. 2 Altronix - eFlow104NB S2-INST Installation Kit For S2 Network Node...
- Page 4 (50.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IITrove3 SS Kits I23U MEMBER - 4 -...
