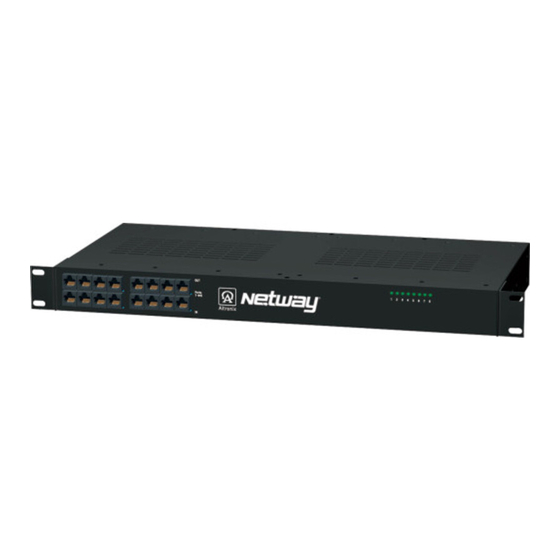

Altronix NetWay8V Installation Manual

Altronix NetWay8V Installation Manual

Poe midspan solution for standard network infrastructure
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Power over the Ethernet
PoE Midspan Solution for
Standard Network Infrastructure
Installation Guide
Models Include:
NetWay8V
- Eight (8) Port PoE Midspan Injector
Rev. 071609
NetWay16V
- Sixteen (16) Port PoE Midspan Injector
More than just power.™

Advertisement

loading
Need help?

Need help?

Do you have a question about the NetWay8V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix NetWay8V

Summary of Contents for Altronix NetWay8V

  • Page 1 Power over the Ethernet PoE Midspan Solution for Standard Network Infrastructure Installation Guide Models Include: NetWay8V NetWay16V - Eight (8) Port PoE Midspan Injector - Sixteen (16) Port PoE Midspan Injector More than just power.™ Rev. 071609...

  • Page 2: Installation Instructions

    Overview: Altronix NetWay8V/NetWay16V Midspans provide power and pass data for PoE compliant cameras/edge devices. Cam- eras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT/NetWayXTX repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement.
  • Page 3 NetWay8V & NetWay16V - Rear Panel 1a OUT 1-8 (NetWay8V), OUT 1-16 (NetWay16V): Structured cable to PoE compliant cameras/edge devices. 1b IN 1-8 (NetWay8V), IN 1-16 (NetWay16V): Structured cable to ethernet switch or video server. 1c LED(s) 1-8 (NetWay8V), 1-16 (NetWay16V): Port status LEDs.
  • Page 4 2. Connect structured cable from port marked [IN] on Fig. 2 - NetWay1512 NetWay1512 to any ports marked [OUT] of NetWay8V/ NetWay16V (Fig. 2, pg. 4, Fig. 1a, pg. 3). 3. Connect structured cable from port marked [OUT] on NetWay1512 to the IP camera (Fig.
  • Page 5 NVR/Network Server Technical Specifications: Parameter Description No. of Ports NetWay8V - Eight (8) Ports. NetWay16V - Sixteen (16) Ports. Input power requirements 220VAC 50/60Hz, 1.8A (NetWay8V). 220VAC 50/60Hz, 2.5A (NetWay16V). Indicators Port Status LED Operating Ambient Temperature: -20ºC to 40ºC (-4ºF to 104ºF).
  • Page 6 NetWay8V/NetWay16V Rack Mount Chassis Mechanical Drawing and Dimensions: Fig. 6 0.75" (19.05mm) 19.125" (485.77mm) 17.625" (447.67mm) 8.5" (215.9mm) 1.625" (41.27mm) (ON) AC POWER The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient...
  • Page 7 (Fig. 9). 2- Place unit in desired location. Fig. 9 Two (2) mounting brackets Left Side Six (6) flat head screws for mounting brackets. Four (4) rubber pads. Rubber Pad NetWay8V/NetWay16V - 7 -...
  • Page 8 Notes: Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime warranty, Made in U.S.A. MEMBER IINetWay8V/NetWay16V G05P...
