Altronix TROVE PLUS T2M7LXK1 Installation Manual

Access & Power Integration
Altronix/Mercury Wired Kits
Models Include:
8 Door Kits with Fused Outputs:
T2M7LXK1
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Modules.
6 Door Kits with Fused Outputs:
T2M7LXK2
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Modules.
8 Door Kits with Fused Outputs:
T2M7LXK3
Accommodates up to four (4) Dual Reader Interface Modules.

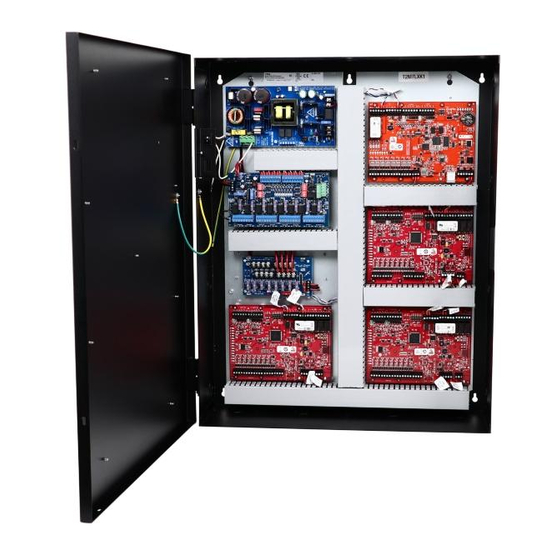

Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACMS8 - Dual Input/Output Fuse Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input/Output Fuse Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and finger duct
Installation Guide
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
All registered trademarks are property of their respective owners.
Rev. T2M7LXK_03152022
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
8 Door Kits with PTC Outputs:
T2M7LXK1D
Accommodates one (1) Intelligent Dual Reader Controller and
three (3) Dual Reader Interface Modules.
6 Door Kits with PTC Outputs:
T2M7LXK2D
Accommodates one (1) Intelligent Controller and three (3) Dual
Reader Interface Modules.
8 Door Kits with PTC Outputs:
T2M7LXK3D
Accommodates up to four (4) Dual Reader Interface Modules.
Each fully assembled kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACMS8CB - Dual Input/Output PTC Protected
Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input/Output PTC Protected
Power Distribution Module
- One (1) Rocker Switch Bracket with One (1) Rocker Switch
(Not evaluated by UL)
- Wire harnesses and finger duct
More than just power.™
