Altronix NetWay V Series Installation Manual page 4

Installing a NetWay1512 Adapter for 12VDC IP Cameras up to 13W:
Brooklyn, NY, U.S.A.
Netway1512
Adapter
www.altronix.com
OUT
IN
1. Mount NetWay1512 in proximity to IP camera (Fig. 2, pg. 4). Affix one side of velcro (supplied) to NetWay1512
and the place the second side of the velcro in the desired location.
2. Connect structured cable from port marked [IN] on NetWay1512 to any ports marked [OUT] of
NetWay8/NetWay16 (Fig. 2, pg. 4, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on NetWay1512 to the IP camera (Fig. 2, pg. 4).
4. Connect 12VDC output from NetWay1512 terminals marked [– 12VDC +] to the power input of the
IP camera (Fig. 2, pg. 4). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay1512 under normal conditions (Fig. 2, pg. 4).
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Installing a NetWay3012 Adapter for 12VDC IP PTZ up to 25W:
Brooklyn, NY, U.S.A.
Netway3012
Adapter
www.altronix.com
IN OUT
1. Mount NetWay3012 in proximity to IP camera utilizing mounting hole (Fig. 3, pg. 4). Use a proper fastener
and/or wall anchor when securing NetWay3012 to the wall.
2. Connect structured cable from port marked [IN] on NetWay3012 to ports marked [OUT] of NetWay8/NetWay16
(Fig. 3, pg. 4, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on NetWay3012 to the IP fixed or PTZ camera
(Fig. 3, pg. 4).
4. Connect 12VDC output from NetWay3012 terminals marked [+ 12VDC – ] to the power input of the
IP camera (Fig. 3, pg. 4). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3012 under normal conditions (Fig. 3, pg. 4).
- 4 -
I.T.E.
43KC
Structured Cable
12VDC
+ Output ---
from NetWay
Structured Cable
from IP Camera/Device
from NetWay8
I.T.E. 43KC
12VDC
+ Output ---
-- +
12VDC
Output
Structured + --
12VDC
Cable
Power to
Camera
or NetWay16
Structured
Cable
from
IP Camera

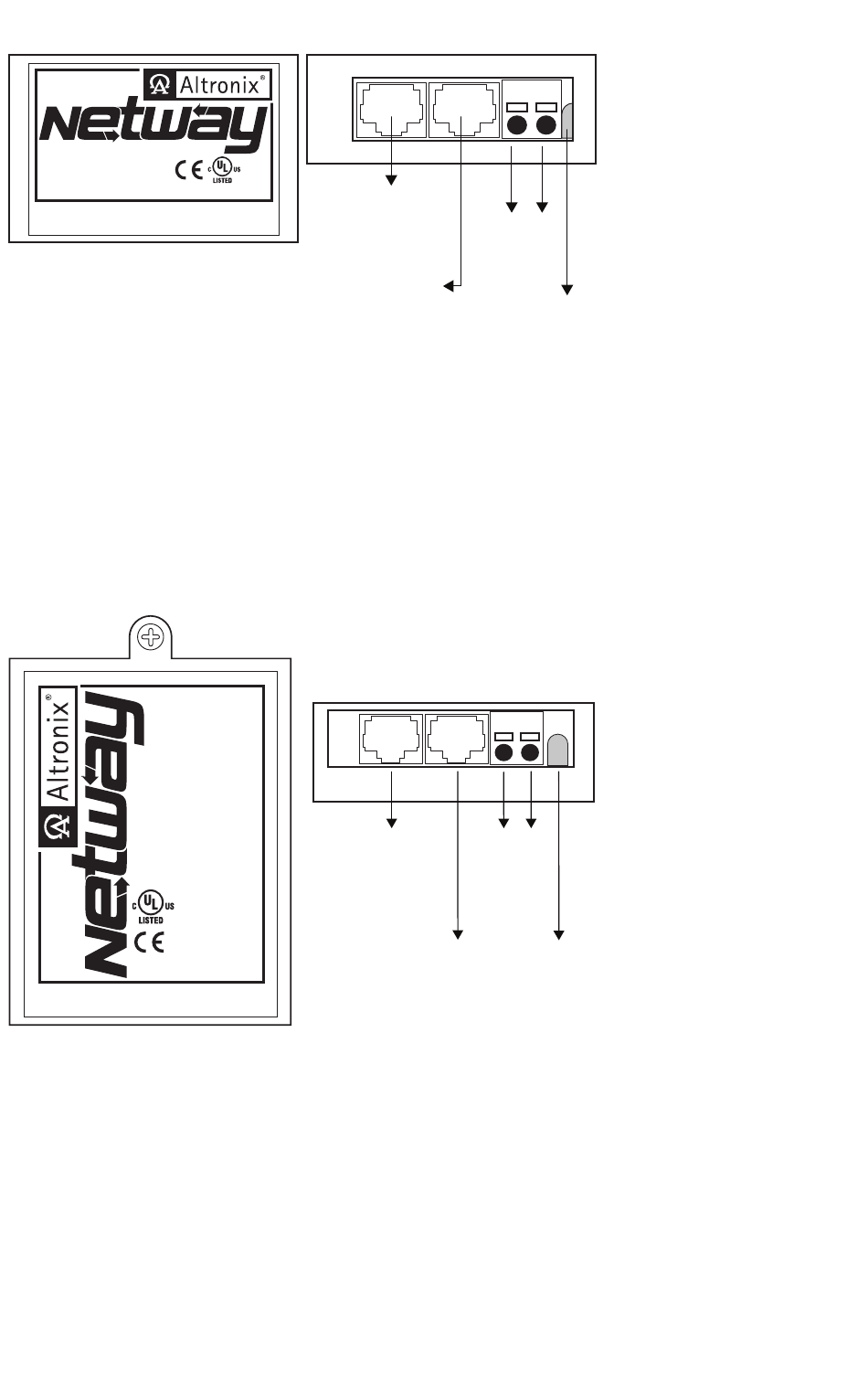

Fig. 2 - NetWay1512
Power
LED
Fig. 3 - NetWay3012
Power LED
NetWay8V / NetWay16V Installation Guide
