Access & Power Integration
Trove1SH1R
- Trove rack enclosure with
Altronix/Software House backplane (TSH1R)
Installation Guide
All registered trademarks are property of their respective owners.
More than just power.
Rev. TSHR112818
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Table of Contents
Related Manuals for Altronix Trove1SH1R
Summary of Contents for Altronix Trove1SH1R
- Page 1 Access & Power Integration Trove1SH1R - Trove rack enclosure with Altronix/Software House backplane (TSH1R) Installation Guide All registered trademarks are property of their respective owners. More than just power. Rev. TSHR112818 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...

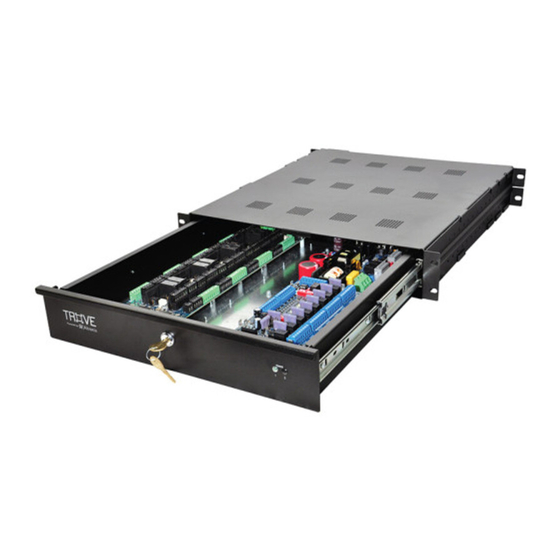

- Page 2 Overview: Altronix Trove1SH1R rack mount access & power integration solution accommodates various combinations of Software House boards with or without Altronix power supplies and accessories for access systems. Specifications: Agency Listings: • CE European Conformity. Trove1SH1R Trove1R rack mount enclosure with TSH1R Altronix/Software House backplane.
- Page 3 1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware). 2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig.
- Page 4 Assembling and Attaching Z Bracket Wire Management Accessory (included): Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory. Hardware (included): Fig. 3 Ten (10) bolts and eight (8) lock nuts. 1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig.
- Page 5 TSH1R: Configuration of Altronix Power Supply and/or Sub-Assembly Boards 1. Fasten spacers onto metal pems configuration (A) or (B) of backplane depending on the board (Fig. 5, pg. 5). 2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
- Page 6 Access Controller Position Chart for the Following Models: Software House iSTAR Ultra Controller Pem Mounting iSTAR Ultra ACM Fig. 6 Fig. 6a Pan Head Screw Software House Board Backplane USB PORT USB PORT Spacer - 6 - Trove1SH1R Installation Guide...
- Page 7 Position Chart for the Following Models: Software House iSTAR Ultra Controller Pem Mounting iSTAR ACM SE/ PRO ACM I8, R8 or I8-CSI Module Fig. 7 Fig. 7a Pan Head Screw USB PORT USB PORT Software House Board Backplane Spacer Trove1SH1R Installation Guide - 7 -...
- Page 8 4.57” 116.1mm 26.5” 673.1mm 19” (482.6mm) 3.375” 85.8mm Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com MEMBER IITrove1SH1R I02U - 8 -...
