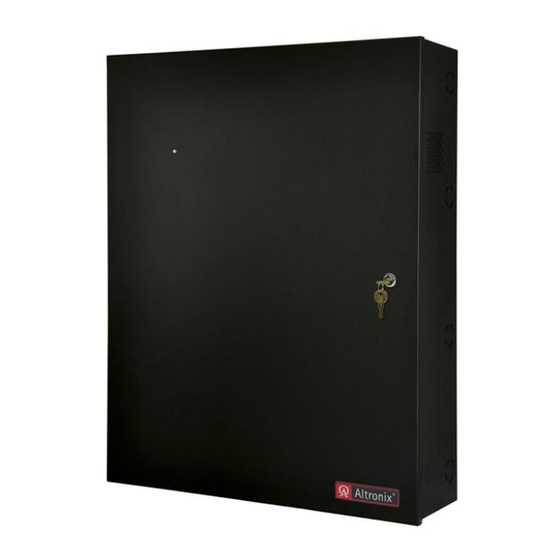

Altronix TROVE T2SSK78 Installation Manual

Access & Power Integration
Altronix/Lenel-S2 (S2 Security Platform) Kits
Models Include:
T2SSK78
8 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with
TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACM8 - Fused Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8 - Dual Input Fused Power Distribution Module
- One (1) RSB1* - Rocker Switch Bracket with
One (1) Rocker Switch (Not evaluated by UL)
T2SSK7514
14 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove2 enclosure with
TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) AL1012ULXB - Power Supply/Charger
- Two (2) ACM8 - Fused Access Power Controllers
- Two (2) PD8UL - Fused Power Distribution Module
- One (1) RSB2* - Rocker Switch Bracket with
Two (2) Rocker Switches (Not evaluated by UL)
All components of this Trove kit are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TSSK2_051520
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
T2SSK78D
8 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with
TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) ACM8CB - PTC Access Power Controller
- One (1) VR6 - Voltage Regulator
- One (1) PDS8CB - Dual Input PTC Power Distribution Module
- One (1) RSB1* - Rocker Switch Bracket with
One (1) Rocker Switch (Not evaluated by UL)
T2SSK7514D
14 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove2 enclosure with
TSS2 Altronix/Lenel-S2 (S2 Security Platform) backplane
- One (1) AL1024ULXB2 - Power Supply/Charger
- One (1) AL1012ULXB - Power Supply/Charger
- Two (2) ACM8CB - PTC Access Power Controllers
- Two (2) PD8ULCB - PTC Power Distribution Module
- One (1) RSB2* - Rocker Switch Bracket with
Two (2) Rocker Switches (Not evaluated by UL)
